Customizing Task Scheduling

When you create a task using the default task implementation, the task can inject messages to a proxy service, or to a sequence. If you have a specific task-handling requirement, you can write your own task-handling implementation by creating a custom Java Class that implements the org.apache.synapse.startup.Task interface.

For example, the below sections demonstrate how you can create and schedule a task to receive stock quotes by invoking a back-end service, which exposes stock quotes. The scheduled task will read stock order information from a text file, and print the stock quotes.

Creating the custom Task implementation

Follow the steps below to create the implementation of the custom Task.

Creating the Maven Project

Create a Maven Project using the following information.

Tip

You can skip step 5 since you do not need to add external JAR files in this example. - Group Id : org.wso2.task - Artifact Id : StockQuoteTaskMavenProject

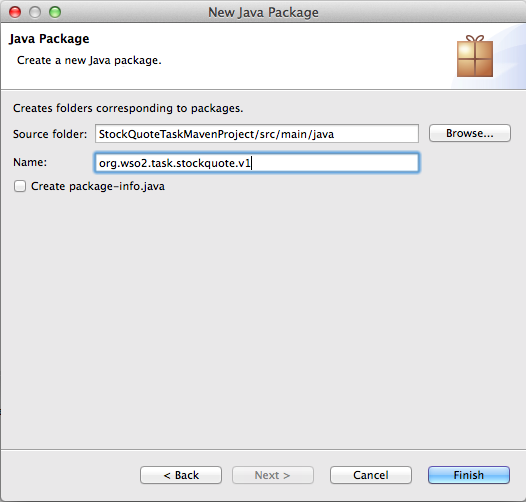

Creating the Java Package

Create a Java Package inside the Maven Project using the following name: org.wso2.task.stockquote.v1

Creating the Java Class

  1. Create a Java Class inside the Maven Project using the following name: StockQuoteTaskV1

  2. In the Project Explorer, double-click on the StockQuoteTaskV1.java file and replace its source with the below content.

    package org.wso2.task.stockquote.v1;

    import java.io.BufferedReader;
    import java.io.File;
    import java.io.FileReader;
    import java.io.IOException;

        import org.apache.axiom.om.OMAbstractFactory;
        import org.apache.axiom.om.OMElement;
        import org.apache.axiom.om.OMFactory;
        import org.apache.axiom.om.OMNamespace;
        import org.apache.axis2.addressing.EndpointReference;
        import org.apache.commons.logging.Log;
        import org.apache.commons.logging.LogFactory;
        import org.apache.synapse.ManagedLifecycle;
        import org.apache.synapse.MessageContext;
        import org.apache.synapse.SynapseException;
        import org.apache.synapse.core.SynapseEnvironment;
        import org.apache.synapse.startup.Task;
        import org.apache.synapse.util.PayloadHelper;

        public class StockQuoteTaskV1 implements Task, ManagedLifecycle {
            private Log log = LogFactory.getLog(StockQuoteTaskV1.class);
            private String to;
            private String stockFile;
            private SynapseEnvironment synapseEnvironment;

            public void execute() {
                log.debug("PlaceStockOrderTask begin");

                if (synapseEnvironment == null) {
                    log.error("Synapse Environment not set");
                    return;
                }

                if (to == null) {
                    log.error("to not set");
                    return;
                }

                File existFile = new File(stockFile);

                if (!existFile.exists()) {
                    log.debug("waiting for stock file");
                    return;
                }

                try {

                    // file format IBM,100,120.50

                    BufferedReader reader = new BufferedReader(new FileReader(stockFile));
                    String line = null;

                    while ((line = reader.readLine()) != null) {
                        line = line.trim();

                        if (line == "") {
                            continue;
                        }

                        String[] split = line.split(",");
                        String symbol = split[0];
                        String quantity = split[1];
                        String price = split[2];
                        MessageContext mc = synapseEnvironment.createMessageContext();
                        mc.setTo(new EndpointReference(to));
                        mc.setSoapAction("urn:placeOrder");
                        mc.setProperty("OUT_ONLY", "true");
                        OMElement placeOrderRequest = createPlaceOrderRequest(symbol, quantity, price);
                        PayloadHelper.setXMLPayload(mc, placeOrderRequest);
                        synapseEnvironment.injectMessage(mc);
                        log.info("placed order symbol:" + symbol + " quantity:" + quantity + " price:" + price);
                    }

                    reader.close();
                } catch (IOException e) {
                    throw new SynapseException("error reading file", e);
                }

                File renamefile = new File(stockFile);
                renamefile.renameTo(new File(stockFile + "." + System.currentTimeMillis()));
                log.debug("PlaceStockOrderTask end");
            }

            public static OMElement createPlaceOrderRequest(String symbol, String qty, String purchPrice) {
                OMFactory factory = OMAbstractFactory.getOMFactory();
                OMNamespace ns = factory.createOMNamespace("http://services.samples/xsd", "m0");
                OMElement placeOrder = factory.createOMElement("placeOrder", ns);
                OMElement order = factory.createOMElement("order", ns);
                OMElement price = factory.createOMElement("price", ns);
                OMElement quantity = factory.createOMElement("quantity", ns);
                OMElement symb = factory.createOMElement("symbol", ns);
                price.setText(purchPrice);
                quantity.setText(qty);
                symb.setText(symbol);
                order.addChild(price);
                order.addChild(quantity);
                order.addChild(symb);
                placeOrder.addChild(order);
                return placeOrder;
            }

            public void destroy() {}

            public void init(SynapseEnvironment synapseEnvironment) {
                this.synapseEnvironment = synapseEnvironment;
            }

            public SynapseEnvironment getSynapseEnvironment() {
                return synapseEnvironment;
            }

            public void setSynapseEnvironment(SynapseEnvironment synapseEnvironment) {
                this.synapseEnvironment = synapseEnvironment;
            }

            public String getTo() {
                return to;
            }

            public void setTo(String to) {
                this.to = to;
            }

            public String getStockFile() {
                return stockFile;
            }

            public void setStockFile(String stockFile) {
                this.stockFile = stockFile;
            }
        }

  3. In the Project Explorer, double-click on the pom.xml file and replace its source with the below content.

    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
                <modelVersion>4.0.0</modelVersion>
                <groupId>org.wso2.task</groupId>
                <artifactId>StockQuoteTask</artifactId>
                <version>0.0.1-SNAPSHOT</version>
                <repositories>
                    <repository>
                        <id>wso2.releases</id>
                        <name>WSO2 internal Repository</name>
                        <url>http://maven.wso2.org/nexus/content/repositories/releases/</url>
                        <releases>
                            <enabled>true</enabled>
                            <updatePolicy>daily</updatePolicy>
                            <checksumPolicy>ignore</checksumPolicy>
                        </releases>
                    </repository>
                </repositories>
                <dependencies>
                    <dependency>
                        <groupId>org.apache.synapse</groupId>
                        <artifactId>synapse-core</artifactId>
                        <version>2.1.7-wso2v65</version>
                    </dependency>
                </dependencies>
    </project>

Writing the custom Task

Step 1: Writing the Task Class

You can create a custom task class, which implements the org.apache.synapse.startup.Task interface as follows. This interface has a single execute() method, which contains the code that will be executed according to the defined schedule.

The execute() method contains the following actions:

  1. Check whether the file exists at the desired location.
  2. If it does, then read the file line by line composing place order messages for each line in the text file.
  3. Individual messages are then injected to the synapse environment with the given To endpoint reference.
  4. Set each message as OUT_ONLY since it is not expected any response for messages.

In addition to the execute() method, it is also possible to make the class implement a JavaBean interface.

Also, add the following dependency to the POM file of the custom task project: WSO2 Carbon - Utilities bundle (symbolic name: org.wso2.carbon.utils )

This is a bean implementing two properties: To and StockFile. These are used to configure the task.

Implementing ManagedLifecycle for Initialization and Clean-up

Since a task implements ManagedLifecyle interface, the Micro Integrator will call the init() method at the initialization of a Task object and destroy() method when a Task object is destroyed:

public interface ManagedLifecycle {
public void init(SynapseEnvironment se);
public void destroy();
        }

The PlaceStockOrderTask stores the Synapse environment object reference in an instance variable for later use with the init() method. The SynapseEnvironment is needed for injecting messages into the ESB.

Step 2: Customizing the Task

It is possible to pass values to a task at runtime using property elements. In this example, the location of the stock order file and its address was given using two properties within the Task object:

  • String type
  • OMElement type

Info

For OMElement type, it is possible to pass XML elements as values in the configuration file.

When creating a Task object, the ESB will initialize the properties with the given values in the configuration file.

public String getStockFile() {
return stockFile;
}
public void setStockFile(String stockFile) {
this.stockFile = stockFile;
}

For example, the following properties in the Task class are initialized with the given values within the property element of the task in the configuration.

<syn:property xmlns="http://ws.apache.org/ns/synapse" name="stockFile"value="/home/upul/test/stock.txt"/>

For those properties given as XML elements, properties need to be defined within the Task class using the format given below. OMElement comes from Apache AXIOM, which is used by the Micro Integrator. AXIOM is an object model similar to DOM. To learn more about AXIOM, see the tutorial in the AXIOM user guide .

public void setMessage(OMElement elem) {
            message = elem;}

It can be initialized with an XML element as follows:

<property name="message">
    <m0:getQuote xmlns:m0="http://services.samples/xsd">
    <m0:request>
    <m0:symbol>IBM</m0:symbol>
    </m0:request>
    </m0:getQuote>
</property>

Deploying the custom Task implementation

Deploy the custom Task implementation.

Creating the Task

Follow the steps below to create the task and schedule it.

  1. Create a ESB Config project named PrintStockQuote.
  2. Create a Sequence using the following information named PrintStockQuoteSequence.
  3. Add a Log Mediator and a Drop Mediator to the sequence and configure them.

    The below is the complete source configuration of the Sequence (i.e., the PrintStockQuoteSequence.xml file):

    <?xml version="1.0" encoding="UTF-8"?>
    <sequence name="PrintStockQuoteSequence" trace="disable" xmlns="http://ws.apache.org/ns/synapse">
        <log level="custom"/>
        <drop/>
    </sequence>
  4. Create a Scheduled Task using the following information:

    Task Property Description
    Task Name PrintStockQuoteScheduledTask
    Count 1
    Interval (in seconds) 5

  5. Defining the properties of the Task: In the Project Explorer , double-click the Print StockQuoteScheduledTask.xml file and replace its source with the below content.

    <task class="org.apache.synapse.startup.tasks.MessageInjector" group="synapse.simple.quartz" name="PrintStockQuoteScheduledTask" xmlns="http://ws.apache.org/ns/synapse">
                <trigger count="1" interval="5" />
                <property name="to" value="http://localhost:9000/soap/SimpleStockQuoteService" xmlns:task="http://www.wso2.org/products/wso2commons/tasks" />
                <property name="stockFile" value="/Users/praneesha/Desktop/stockfile.txt" xmlns:task="http://www.wso2.org/products/wso2commons/tasks" />
                <property name="synapseEnvironment" value="" xmlns:task="http://www.wso2.org/products/wso2commons/tasks" />
    </task>
    The task properties will change according to the custom implementation. Therefore, you need to enter values for your custom properties. This sets the below properties.

    Parameter Name Value
    to http://localhost:9000/soap/SimpleStockQuoteService
    stockFile
    The directory path to the stockfile.txt file.
    synapseEnvironment
    Do not enter a value. This will be used during runtime.

    Note

    Currently, you cannot set properties of a custom task using the Design View due to a known issue, which will be fixed in future versions.

The below is the complete source configuration of the Task (i.e., the PrintStockQuoteScheduledTask.xml file).

<?xml version="1.0" encoding="UTF-8"?>
<task class="org.apache.synapse.startup.tasks.MessageInjector" group="synapse.simple.quartz" name="PrintStockQuoteScheduledTask" xmlns="http://ws.apache.org/ns/synapse">
        <trigger interval="3" />
        <property name="to" value="http://localhost:9000/soap/SimpleStockQuoteService" xmlns:task="http://www.wso2.org/products/wso2commons/tasks" />
        <property name="stockFile" value="/Users/praneesha/Desktop/stockfile.txt" xmlns:task="http://www.wso2.org/products/wso2commons/tasks" />
</task>

Deploying the Task

Deploy the Task.

Testing the Custom Task

Starting the back-end service

Download the backend service from GitHub and run it.

Creating the text file

Create a text file named stockfile.txt with the following content and save it to a preferred location on your machine. This will include the information to be read by the scheduled task to pass to the backend service.

stockfile.txt

IBM,100,120.50
MSFT,200,70.25
SUN,400,60.758

Info

Each line in the text file contains details for a stock order: - symbol - quantity - price

A task that is scheduled using this custom implementation will read the text file, a line at a time, and create orders using the given values to be sent to the back-end service. The text file will then be tagged as processed to include a system time stamp. The task will be scheduled to run every 15 seconds.

Viewing the output

You will view the stock quotes sent by the backend service printed every 3 seconds by the scheduled task in the below format.

INFO - StockQuoteTask placed order symbol:IBM quantity:100 price:120.50
