Styling API Details Left Menu

The API details left menu can be customized to match with your design needs by configuring the defaultTheme.js file.

The defaultTheme.js file has all the parameters defining the look and feel of the developer portal. To learn more about defaultTheme.js refer here.

styling api details left menu

You can change the themes.light.custom.leftMenu attributes to change the left menu styling. Note that, these changes will effect the same way to application details left menu as well.

  1. Open the Open <API-M_HOME>/repository/deployment/server/webapps/devportal/site/public/theme/userTheme.json file in a text editor and update the attributes.

  2. Refresh the Developer Portal to view the changes.

The following attributes are available for the leftMenu

{
    "custom": {
        "leftMenu": {
            "position": "vertical-left",
            "style": "icon left",
            "iconSize": 24,
            "leftMenuTextStyle": "uppercase",
            "width": 180,
            "background": "#012534",
            "backgroundImage": "/site/public/images/leftMenuBack.png",
            "leftMenuActive": "#00597f",
            "leftMenuActiveSubmenu": "#0d1723",
            "activeBackground": "#191e46",
            "rootIconVisible": true,
            "rootIconSize": 42,
            "rootIconTextVisible": false,
            "rootBackground": "#000"
        }
    }
}

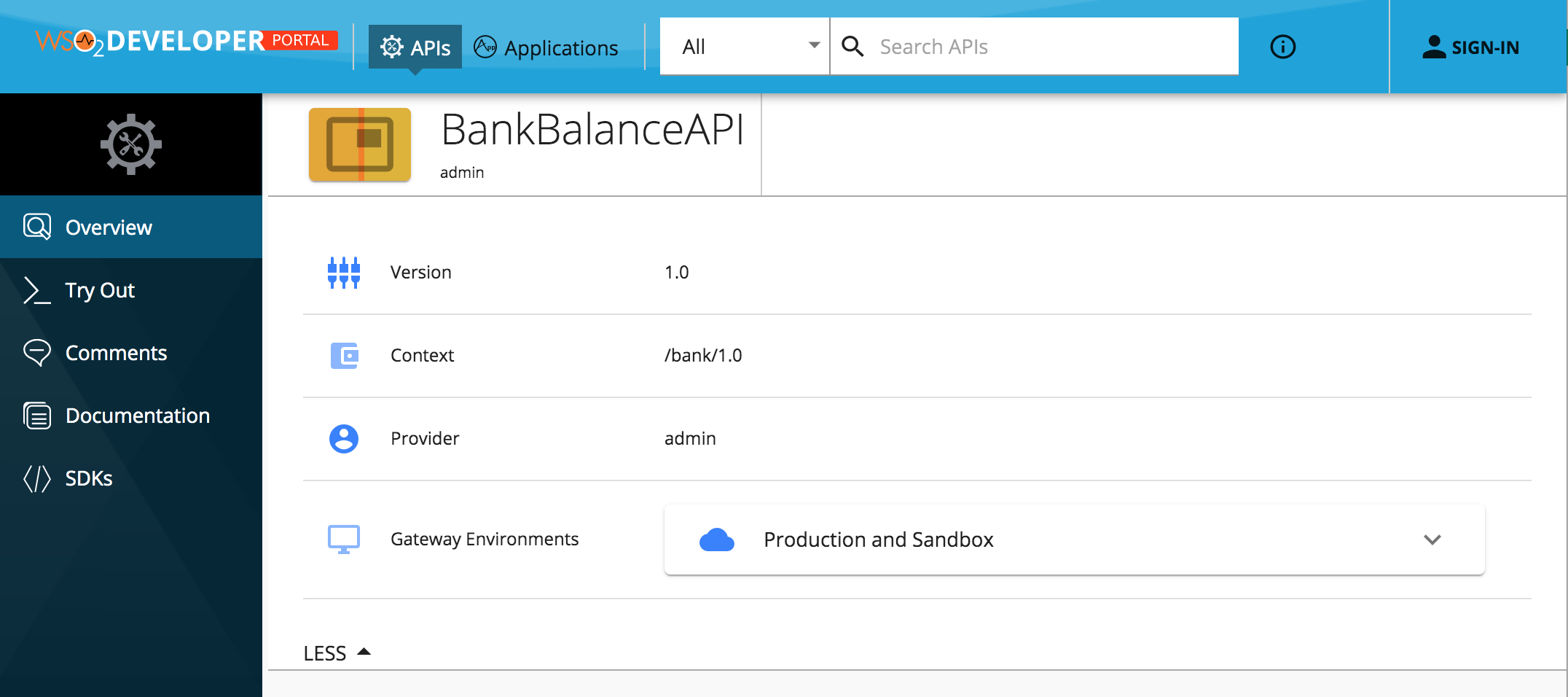

The above JSON defines the default look and feel.

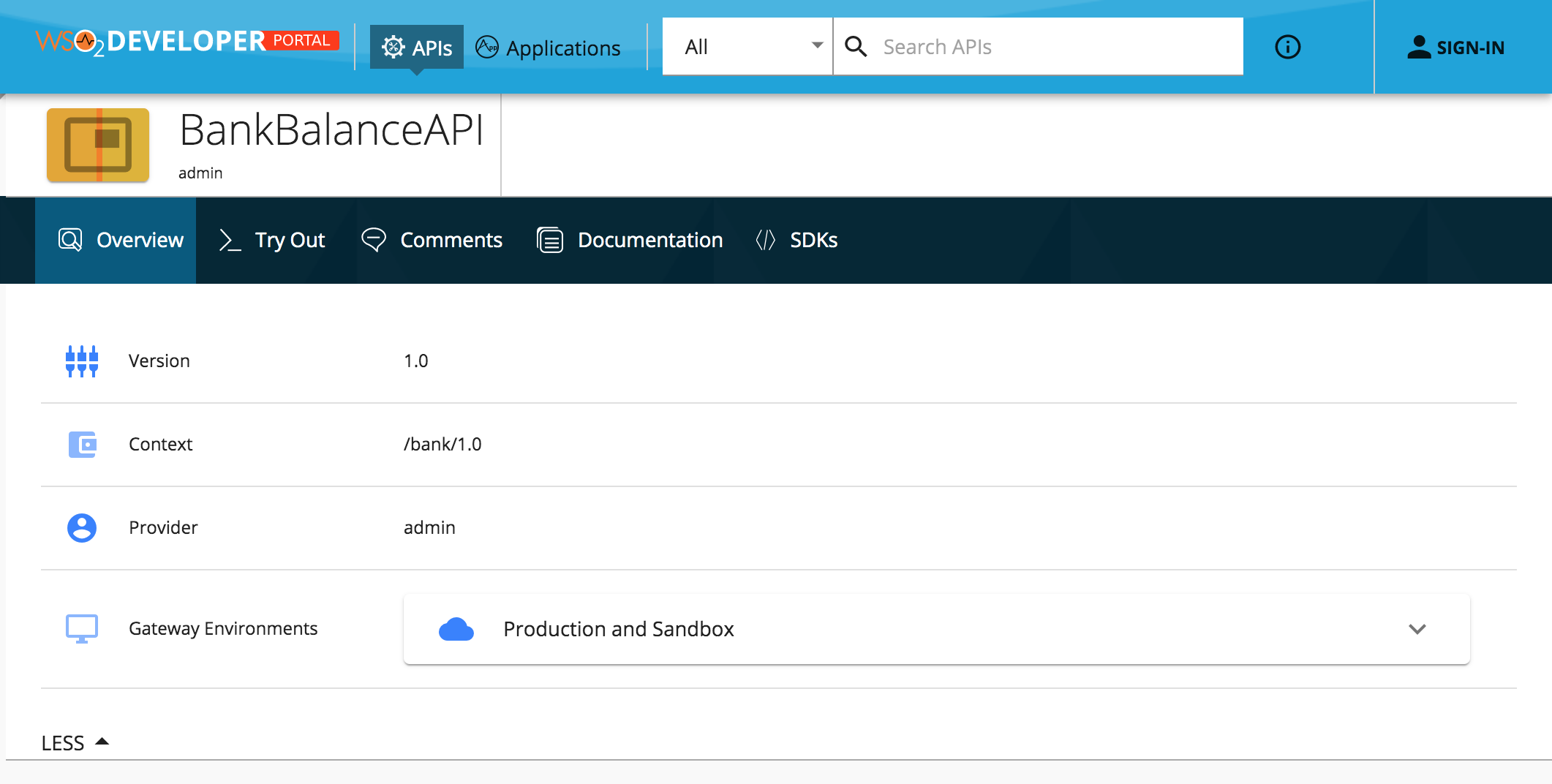

We can change the menu to take different positions. For an example, the following configuration sets the menu as a toolbar by just changing the values of the above JSON as follows.

{
    "custom": {
        "leftMenu": {
            "position": "horizontal",
            "rootIconVisible": true
        }
    }
}

styling api details left menu

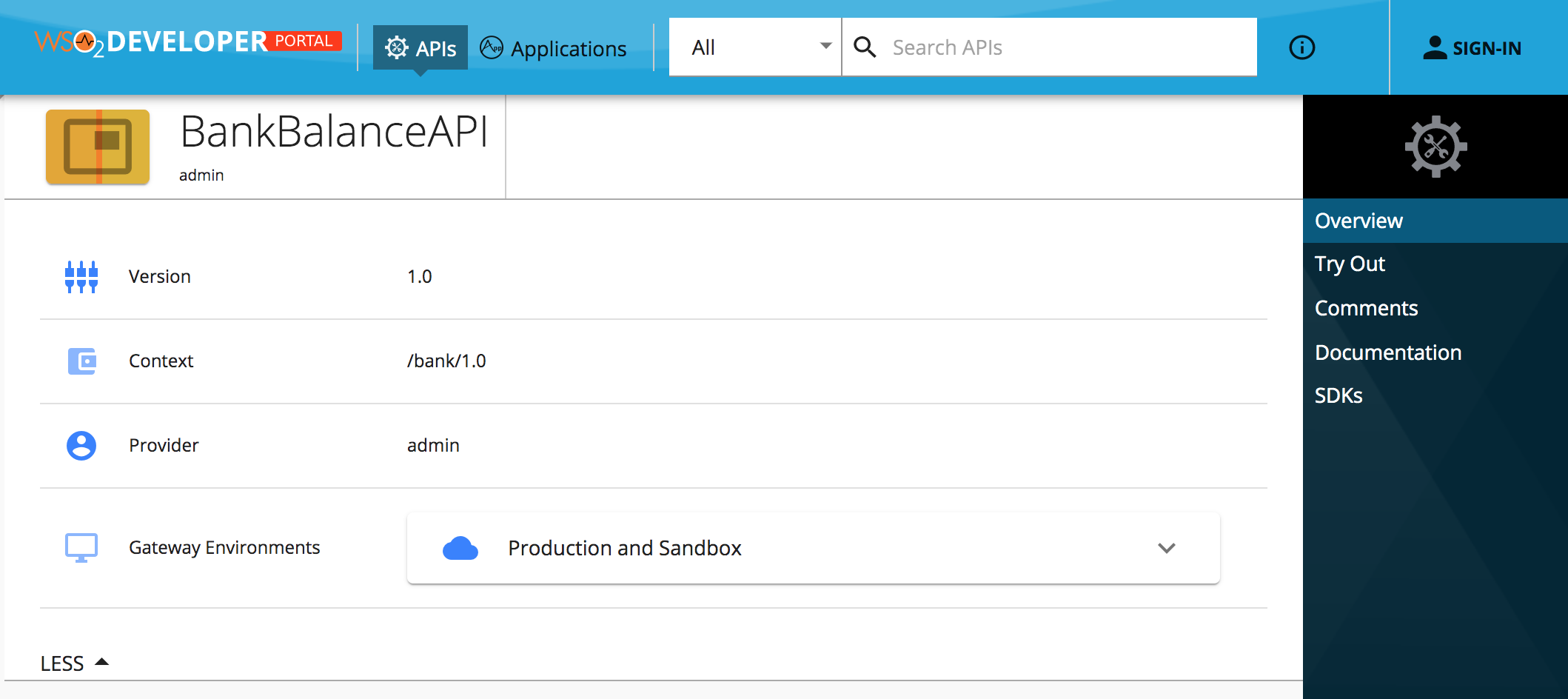

The following will set the menu to the right hand side and will disable the icons.

{
    "custom": {
        "leftMenu": {
            "position": "vertical-right",
            "style": "no icon"
        }
    }
}

styling api details left menu3.png

Option type Description
position string Sets the position of the menu. Accepts 'horizontal', 'vertical-left', 'vertical-right'
style string Sets the menu icon position and visibility. Accepts'icon top', 'icon left', 'no icon', 'no text'
iconSize integer Icon size in pixels
leftMenuTextStyle string Set the font style for the menu text
width integer Defines the menu width
background string Set the background for the left menu
backgroundImage string Set a background image to the left menu ex: '/site/public/images/leftMenuBack.png'
leftMenuActive string Set the background color of the menu when it's selected
leftMenuActiveSubmenu string Set the background color for submenu elements. Example use can be found at the Application details page
rootIconVisible boolean Set the top Icons visibility. By default set to true, Set it to false to hide it.
rootIconSize integer Define the size of root icon. The value is considered in pixels when rendering.
rootIconTextVisible boolean Set the visibility of the root icon text. By default it's hidden.
rootBackground string Set the background color of the root icon containing element

With these configurations, we tried to handle most of the use cases for rebranding. But if someone wants to do a change that is not supported, for an example change the icons or make the menu collapsible, then they need to override the relevant React component. Refer to the Advanced Customization for more information.
