Using Dynamic Data in apictl Projects

The WSO2 API Controller (apictl) can inject dynamic values based on environment variables to various project files. The use of environment variables is a very convenient way of controlling inputs in almost every CI/CD platform.

Add dynamic data to environment configs

To allow easily configuring environment-specific details, by default, the apictl supports an additional parameter file. For more information on using an environment parameter file, see Configuring Environment Specific Parameters.

The file supports detecting environment variables during the API (or API Product) import process. You can use the notation ${DEV_URL} to specify environment variables to any attribute in this file.

Follow the instructions below to add dynamic data to environment configs of an API.

  1. Initialize an API Project using the below command.

    apictl init PetstoreProject --oas https://petstore.swagger.io/v2/swagger.json
  2. Create a file named params.yaml with the below content.

    environments:
        - name: development
          configs:
              endpoints:
                  production:
                      url: ${DEV_ENV_PROD_URL}
                      config:
                          retryTimeOut: ${DEV_ENV_PROD_RE_TO}
                          retryDelay: ${DEV_ENV_PROD_RE_DELAY}
                  sandbox:
                      url: ${DEV_ENV_SAND_URL}
  3. Export the environment variables with required values.

    export DEV_ENV_PROD_URL=https://petstore.swagger.io/v2
    export DEV_ENV_PROD_RE_DELAY=10
    export DEV_ENV_PROD_RE_TO=5
    export DEV_ENV_SAND_URL=https://sand.petstore.swagger.io/v2
    SET DEV_ENV_PROD_URL=https://petstore.swagger.io/v2
    SET DEV_ENV_PROD_RE_DELAY=10
    SET DEV_ENV_PROD_RE_TO=5
    SET DEV_ENV_SAND_URL=https://sand.petstore.swagger.io/v2
  4. Import the API Project

    apictl import api -f PetstoreProject --environment development --params params.yaml

    Warning

    If an environment variable is not set, the command will fail and request to set the required missing environment variables on the system.

    Note

    apictl import-api command has been deprecated from apictl 4.0.0 onwards. Instead use apictl import api as shown above.

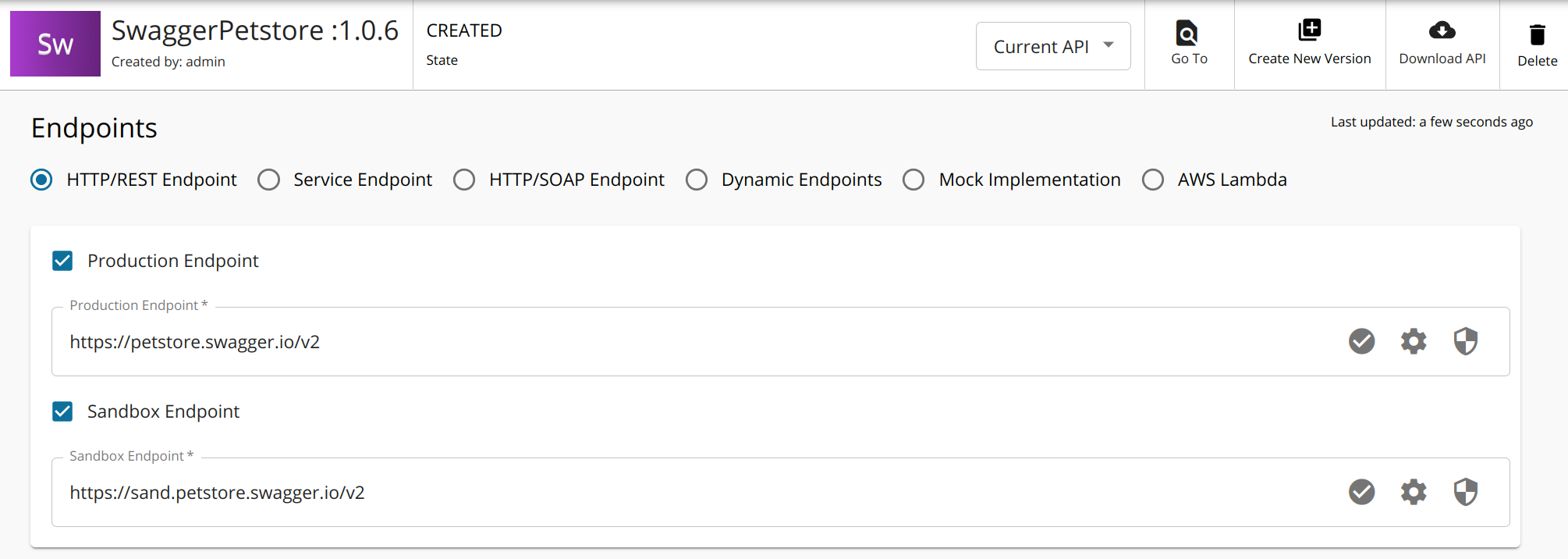

Once the project is successfully imported, sign-in to the WSO2 API Manager (WSO2 API-M) Publisher Portal and check the Endpoints section of the imported API. The URLs specified as environment variables will appear there.

Add dynamic data to Custom Medation Policies in an API project

Other than the API (or API Product) Environment Configuration (params.yaml), the apictl supports environment variable substitution in custom mediation policies.

For example, consider we need to send a special header to the backend when calling the SwaggerPetstore API we created above. The value of the header should be a dynamic value which the apictl should have control over.

  1. Create the below custom mediation policy custom-header-in.xml in PetstoreProject/Sequences/in-sequence/Custom folder.

    <sequence xmlns="http://ws.apache.org/ns/synapse" name="custom-header-in">
        <header name="X-ENV-KEY" value="${ENV_KEY}" scope="transport" />
        <log level="custom">
            <property name="Sent header(X-ENV-KEY)" value="${ENV_KEY}"/>
        </log>
    </sequence>
  2. Open PetstoreProject/api.yaml and change below settings.

    1. Replace lifeCycleStatus value from CREATED to PUBLISHED. This is to ensure that the API will be Published once imported.
    2. Add the mediation policy under the field (list) mediationPolicies as shown below. (Since you are adding an IN sequence the type should be specified as IN)
    mediationPolicies:
        - name: custom-header-in
          type: IN
          shared: false

    A sample configuration after applying the above changes is shown below.

    type: api
    version: v4.0.0
    data:
        name: SwaggerPetstore
        description: 'This is a sample server Petstore server.  You can find out more about
            Swagger at [http://swagger.io](http://swagger.io) or on [irc.freenode.net, #swagger](http://swagger.io/irc/).  For
            this sample, you can use the api key `special-key` to test the authorization filters.'
        context: /v2/1.0.5
        version: 1.0.5
        lifeCycleStatus: PUBLISHED
        mediationPolicies:
            - name: custom-header-in
              type: IN
              shared: false
    ...
  3. Export the environment variables with required values.

    export ENV_KEY=dev_101
    SET ENV_KEY=dev_101
  4. Import the API Project

    apictl import api -f PetstoreProject --environment development --update

    Note

    apictl import-api command has been deprecated from apictl 4.0.0 onwards. Instead use apictl import api as shown above.

  5. Generate a token and invoke the API

    $ apictl get keys -e development -n SwaggerPetstore -v 1.0.5 -r admin
    eyJ0eXAiOiJKV1QiLCJhbGciOiJSUz....RWrACAUNSFBpxz1lRLqFlDiaVJAg

    $ curl -H "Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJSUz....RWrACAUNSFBpxz1lRLqFlDiaVJAg" https://localhost:8243/v2/1.0.5/pet/1 -k
    {"id":1,"category":{"id":1001,"name":"Animal"},"name":"doggie","photoUrls":["img/test/dog.jpeg","img/test/dog1.jpeg"],"tags":[{"id":2001,"name":"Pet"},{"id":2002,"name":"Animal"}],"status":"available"}

    Note

    apictl get-keys command has been deprecated from the API Controller 4.0.0 onwards. Instead use apictl get keys as shown above.

Upon successful invocation, the header X-ENV-KEY: dev_101 will be sent to the backend of the API. The below log will be printed in the API gateway's terminal.

INFO - LogMediator Sent header(X-ENV-KEY) = dev_101
