WSO2 Admin Services¶
WSO2 products are managed internally using SOAP Web services known as admin services, and they come with a management console UI, which communicates with these admin services to facilitate administration capabilities through the UI.
A service in WSO2 products is defined by the following components:
- Service component: provides the actual service
- UI component: provides the web user interface to the service
- Service stub: provides the interface to invoke the service generated from the service WSDL
There can be instances where you want to call back-end web services directly. For example, during test automation, to minimize the overhead of changing automation scripts whenever a UI change happens, developers prefer to call the underlying services in scripts. The topics below explain how to discover and invoke these services from your applications.
Discovering the admin services¶
By default, the WSDLs of admin services are hidden from consumers. Follow the instructions below to discover the WSDLs of the admin services using the OSGi console.
-
Add the following configuration to the
<API-M_HOME>/repository/conf/deployment.toml
file. -
Navigate to the
<API-M_HOME>/bin/
directory and start WSO2 API Manager as follows: -
When the server starts, press the Enter/Return key several times to get the OSGi shell in the console.
-
View the list of admin services of your product.
Type
listAdminServices
in the OSGi shell and pressEnter

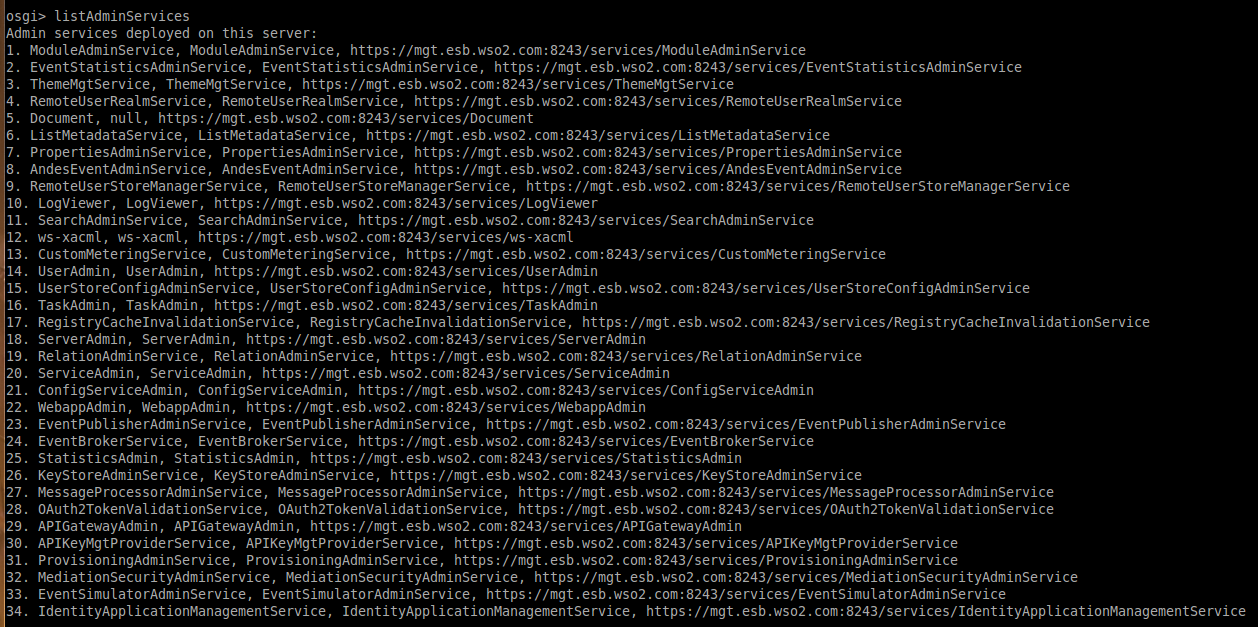

.The list of admin services related to WSO2 API Manager product will appear as shown below.
-
If required, view the service contract of an admin service.
Select the admin service's URL, copy and paste it in your browser with ?wsdl at the end. An example is given below.
Tip
In WSO2 API Manager, the port used is 8243 (assuming that the port offset is 0). However, you should be accessing the Admin Services via the management console port, which is 9443 when there is no port offset.
The admin service's URL appears as follows in the previous list that you discovered:
Note
After discovering the admin service, you can restart the server without -DosgiConsole
Invoking an admin service¶
For the purpose of preventing anonymous invocations, admin services are secured using common types of security protocols such as HTTP basic authentication, WS-Security username token, and session-based authentication. For example, the UserAdmin
web service is secured using HTTP basic authentication.
Follow the instructions below to invoke a service:
- Authenticate yourself and get the session cookie.
- Generate the client stubs to access the back-end Web services.
Tip
To generate the stubs, you can write your own client program using the Axis2 client API or use an existing tool like SoapUI (4.5.1 or later) or wsdl2java.
The wsdl2java tool, which is shipped with WSO2 products by default, hides all the complexity and presents you with a proxy to the back-end service. The stub generation happens during the project build process within the Maven POM files. It uses the Apache Maven AntRun plugin to execute the wsdl2java tool.
You can also use the Java client program given here to invoke admin services. All dependency JAR files required to run the Java client are available in the <API-M_HOME>/lib
directory.
Authenticating the user¶
The sample code given below authenticates the user and gets the session cookie:
import org.apache.axis2.AxisFault;
import org.apache.axis2.transport.http.HTTPConstants;
import org.wso2.carbon.authenticator.stub.AuthenticationAdminStub;
import org.wso2.carbon.authenticator.stub.LoginAuthenticationExceptionException;
import org.wso2.carbon.authenticator.stub.LogoutAuthenticationExceptionException;
import org.apache.axis2.context.ServiceContext;
import java.rmi.RemoteException;
public class LoginAdminServiceClient {
private final String serviceName = "AuthenticationAdmin";
private AuthenticationAdminStub authenticationAdminStub;
private String endPoint;
public LoginAdminServiceClient(String backEndUrl) throws AxisFault {
this.endPoint = backEndUrl + "/services/" + serviceName;
authenticationAdminStub = new AuthenticationAdminStub(endPoint);
}
public String authenticate(String userName, String password) throws RemoteException,
LoginAuthenticationExceptionException {
String sessionCookie = null;
if (authenticationAdminStub.login(userName, password, "localhost")) {
System.out.println("Login Successful");
ServiceContext serviceContext = authenticationAdminStub.
_getServiceClient().getLastOperationContext().getServiceContext();
sessionCookie = (String) serviceContext.getProperty(HTTPConstants.COOKIE_STRING);
System.out.println(sessionCookie);
}
return sessionCookie;
}
public void logOut() throws RemoteException, LogoutAuthenticationExceptionException {
authenticationAdminStub.logout();
}
}
Generating the client stubs¶
After authenticating the user provide the retrieved admin cookie with the service endpoint URL as shown in the sample below.
The Remote user management service name is RemoteUserStoreManagerService
. You can find its URL (e.g., https://localhost:9443/services/RemoteUserStoreManagerService
) in the service.xml
file, within the META-INF
folder, in the respective bundle that is in the <API-M_HOME>/repository/components/plugins
directory.
import org.apache.axis2.AxisFault;
import org.apache.axis2.client.Options;
import org.apache.axis2.client.ServiceClient;
import org.wso2.carbon.um.ws.api.stub.RemoteUserStoreManagerServiceStub;
import org.wso2.carbon.um.ws.api.stub.RemoteUserStoreManagerServiceUserStoreExceptionException;
import java.rmi.RemoteException;
public class RemoteUserStoreServiceAdminClient {
private final String serviceName = "RemoteUserStoreManagerService";
private RemoteUserStoreManagerServiceStub remoteUserStoreManagerServiceStub;
private String endPoint;
public RemoteUserStoreServiceAdminClient(String backEndUrl, String sessionCookie) throws AxisFault {
this.endPoint = backEndUrl + "/services/" + serviceName;
remoteUserStoreManagerServiceStub = new RemoteUserStoreManagerServiceStub(endPoint);
//Authenticate Your stub from sessionCooke
ServiceClient serviceClient;
Options option;
serviceClient = remoteUserStoreManagerServiceStub._getServiceClient();
option = serviceClient.getOptions();
option.setManageSession(true);
option.setProperty(org.apache.axis2.transport.http.HTTPConstants.COOKIE_STRING, sessionCookie);
}
public String[] listUsers()
throws RemoteException, RemoteUserStoreManagerServiceUserStoreExceptionException {
return remoteUserStoreManagerServiceStub.listUsers("*", 100);
}
}
The following sample code lists the users in the API-M server:
import org.apache.axis2.AxisFault;
import org.wso2.carbon.authenticator.stub.LoginAuthenticationExceptionException;
import org.wso2.carbon.authenticator.stub.LogoutAuthenticationExceptionException;
import org.wso2.carbon.um.ws.api.stub.RemoteUserStoreManagerServiceUserStoreExceptionException;
import java.rmi.RemoteException;
public class AdminServiceClientManager {
public static void main (String[] args) {
System.setProperty("javax.net.ssl.trustStore",
"<API-M_HOME>/repository/resources/security/client-truststore.jks");
System.setProperty("javax.net.ssl.trustStorePassword", "wso2carbon");
try {
LoginAdminServiceClient loginAdminServiceClient =
new LoginAdminServiceClient("https://localhost:9443");
String sessionId = loginAdminServiceClient.authenticate("admin", "admin");
RemoteUserStoreServiceAdminClient remoteUserStoreServiceAdminClient = new
RemoteUserStoreServiceAdminClient("https://localhost:9443", sessionId);
String[] users = remoteUserStoreServiceAdminClient.listUsers();
if(users != null){
System.out.println("Listing user names of Carbon server...... ");
for(String user : users){
System.out.println("User Name : " + user);
}
}
loginAdminServiceClient.logOut();
} catch (AxisFault axisFault) {
axisFault.printStackTrace();
throw new RuntimeException(axisFault);
} catch (RemoteException e) {
e.printStackTrace();
throw new RuntimeException(e);
} catch (LoginAuthenticationExceptionException e) {
e.printStackTrace();
throw new RuntimeException(e);
} catch (RemoteUserStoreManagerServiceUserStoreExceptionException e) {
e.printStackTrace();
throw new RuntimeException(e);
} catch (LogoutAuthenticationExceptionException e) {
e.printStackTrace();
throw new RuntimeException(e);
}
}
}
The complete Maven project can be found at: org.wso2.carbon.sample.admin.service.invoker.zip
