Pattern 5: Simple Scalable Setup with Key Manager

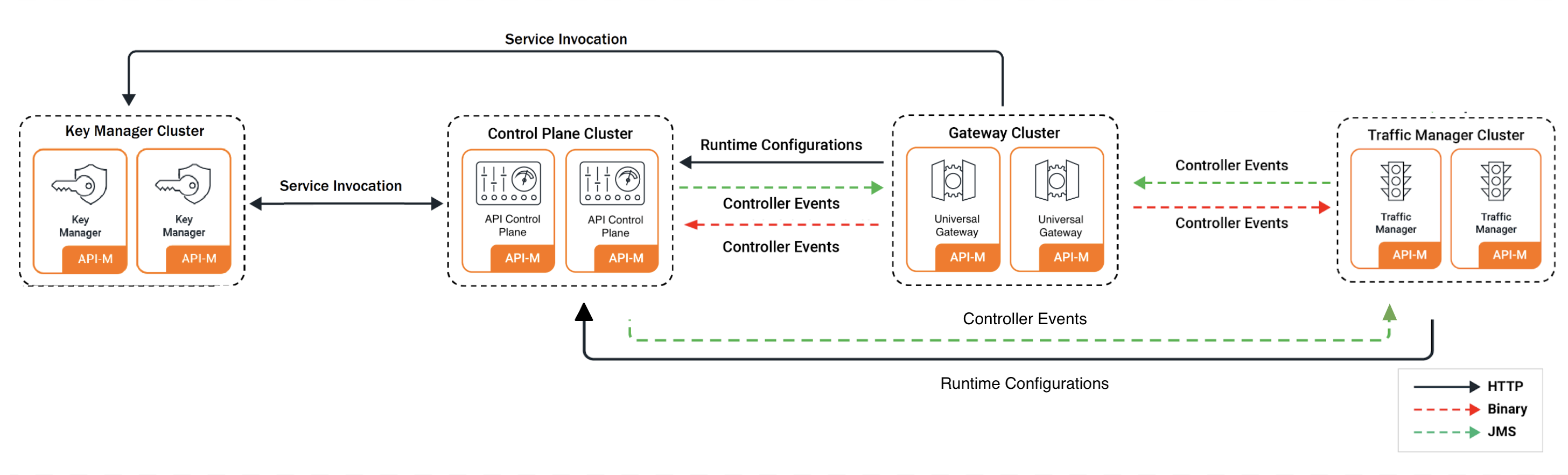

This pattern extends Pattern 2 by adding a dedicated Key Manager alongside the All-in-One and Classic Gateway. It is suitable for production environments where token issuance and validation need to be isolated from the Control Plane, without the overhead of a fully distributed setup.

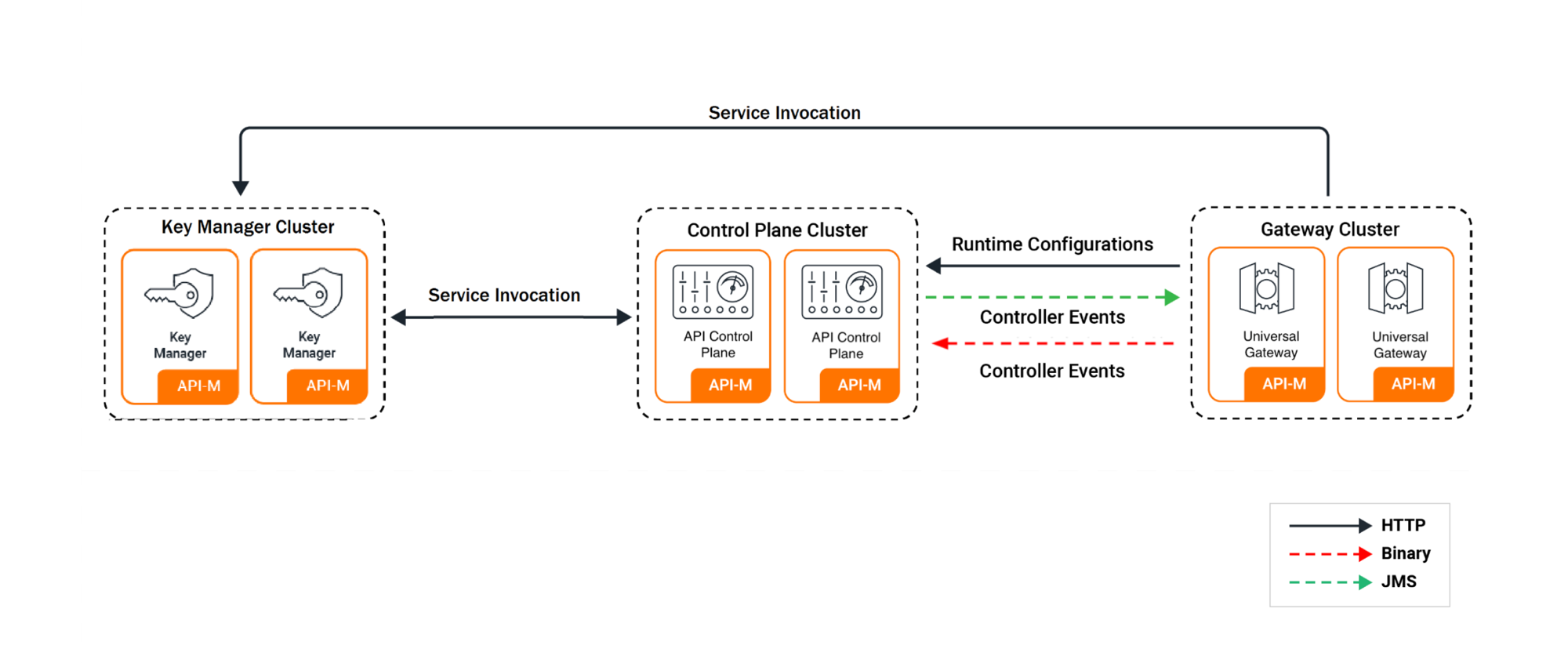

Pattern 5 deployment

How Pattern 5 Differs from Earlier Patterns

Pattern 2 Pattern 4 Pattern 5
Key Manager Embedded in All-in-One Dedicated KM Dedicated KM
Control Plane Embedded in All-in-One Dedicated ACP Embedded in All-in-One
Traffic Manager Embedded in All-in-One Dedicated TM Embedded in All-in-One
Custom images Required (All-in-One) Required (ACP); KM reuses ACP image Required (All-in-One + ACP); KM uses ACP image
High availability Gateway: Yes; All-in-One: Optional Yes (all components) Gateway: Yes; KM: Yes; All-in-One: Optional

Note

The Key Manager uses the same Docker image as the ACP (API Control Plane). The ACP image ships profileSetup.sh and key-manager.sh, which the KM chart's entrypoint requires at startup.

Pattern 5 requires the following before deploying:

  1. An external database — H2 is not supported. Set up an external database before deploying.
  2. Two custom Docker images — one for the All-in-One and one for the ACP (shared with the Key Manager), both with the JDBC driver for your database.
  3. Database schema initialised — run the WSO2 schema scripts against both databases before the pods start.

Quick Start

Step 1 — Install Required Tools

  1. Ensure the following tools are installed on your machine:

    Tool Purpose Install Guide
    kubectl Kubernetes CLI for managing cluster resources Install
    helm (v3) Package manager for deploying WSO2 Helm charts Install
    docker Required to build and push custom WSO2 images Install

  2. Verify all tools are installed and check their versions:

    kubectl version --client
helm version
docker info

    Version Compatibility

    Ensure your tool versions are within the supported ranges listed in the Prerequisites page before proceeding.

Step 2 — Verify Your Cluster is Running

  1. Ensure your Kubernetes cluster is up and running:

    kubectl cluster-info
kubectl get nodes

    All nodes should show a Ready status.

Step 3 — Add the WSO2 Helm Repository

  1. Add the WSO2 Helm repository and update it:

    helm repo add wso2 https://helm.wso2.com && helm repo update

Step 4 — Install a Routing Controller

WSO2 API Manager 4.7.0 uses Envoy Gateway by default for routing and it is the recommended option. NGINX Ingress Controller is also available for users who require it.

  1. Install Envoy Gateway:

    helm install envoy-gateway oci://docker.io/envoyproxy/gateway-helm \
  --version v1.7.0 -n envoy-gateway-system \
  --set config.envoyGateway.extensionApis.enableBackend=true \
  --set envoyGateway.gateway.experimentalFeatures.enabled=true \
  --create-namespace

  2. Create the apim namespace and apply the sample Gateway manifest:

    kubectl create namespace apim
kubectl apply \
  -f https://raw.githubusercontent.com/wso2/helm-apim/4.7.x/resources/assets/sample-gateway.yaml \
  -n apim

  3. Verify the gateway is ready:

    kubectl get gateway -n apim

See Section 4 — Routing Controller for full Envoy Gateway values configuration.

  1. Install the NGINX ingress controller into your cluster:

    helm upgrade --install ingress-nginx ingress-nginx \
  --repo https://kubernetes.github.io/ingress-nginx \
  --namespace ingress-nginx --create-namespace

    helm upgrade --install ingress-nginx ingress-nginx \
  --repo https://kubernetes.github.io/ingress-nginx \
  --namespace ingress-nginx --create-namespace \
  --set controller.service.externalTrafficPolicy=Local

    Note

    externalTrafficPolicy=Local is required on managed Kubernetes services. Without it, the cloud load balancer health probes fail and traffic never reaches the ingress controller.

  2. Verify the controller is running:

    kubectl get pods -n ingress-nginx

    The NGINX pod should show 1/1 Running before proceeding.

Step 5 — Build and Push Custom Docker Images

Pattern 5 requires custom Docker images for the All-in-One node and the API Control Plane (shared with the Key Manager), both with the JDBC driver for your database.

Choosing a base image

  • DockerHub (wso2/wso2am:4.7.0, wso2/wso2am-acp:4.7.0, wso2/wso2am-universal-gw:4.7.0) — packages the GA release. Suitable for evaluation and development.
  • WSO2 Private Registry (registry.wso2.com/wso2-apim/am:4.7.0.0, registry.wso2.com/wso2-apim/am-acp:4.7.0.0, registry.wso2.com/wso2-apim/am-universal-gw:4.7.0.0) — includes WSO2 Updates and is recommended for production. Requires an active WSO2 Subscription.

  1. Create a directory for the custom images:

    mkdir wso2am-custom && cd wso2am-custom

  2. Create a Dockerfile.aio for the All-in-One image:

    FROM wso2/wso2am:4.7.0

ADD --chown=wso2carbon:wso2 \
  https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.28/mysql-connector-java-8.0.28.jar \
  /home/wso2carbon/wso2am-4.7.0/repository/components/lib/

  3. Create a Dockerfile.acp for the ACP image (also used for the Key Manager):

    FROM wso2/wso2am-acp:4.7.0

ADD --chown=wso2carbon:wso2 \
  https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.28/mysql-connector-java-8.0.28.jar \
  /home/wso2carbon/wso2am-acp-4.7.0/repository/components/lib/

  4. Build the images, replacing <REGISTRY> and <TAG> with your values:

    docker buildx build --platform linux/amd64 -f Dockerfile.aio -t <REGISTRY>/wso2am-mysql:<TAG> .
docker buildx build --platform linux/amd64 -f Dockerfile.acp -t <REGISTRY>/wso2am-acp-mysql:<TAG> .

    Matching your cluster architecture

    The --platform flag ensures the image is built for the architecture your cluster nodes run on. Most managed clusters (AKS, GKE) and Linux servers use linux/amd64. If you are building on Apple Silicon (M1/M2/M3/M4) without this flag, the image will be built for linux/arm64 and the pod will fail to start with no match for platform in manifest.

    To check your cluster node architecture:

    kubectl get nodes -o jsonpath='{.items[*].status.nodeInfo.architecture}'

  5. Push the images to your container registry:

    docker push <REGISTRY>/wso2am-mysql:<TAG>
docker push <REGISTRY>/wso2am-acp-mysql:<TAG>

  6. Get the image digests — you will need them when configuring your values files:

    docker inspect <REGISTRY>/wso2am-mysql:<TAG> \
  --format='{{index .RepoDigests 0}}'

docker inspect <REGISTRY>/wso2am-acp-mysql:<TAG> \
  --format='{{index .RepoDigests 0}}'

Step 6 — Set Up the Database

Pattern 5 requires two databases: apim_db and shared_db. Both must be reachable from inside the Kubernetes cluster before the pods start.

Follow the Setting Up Databases guide to:

  1. Set up a database instance accessible from your cluster
  2. Obtain the schema scripts for your database type
  3. Run the scripts to initialise both databases

Note

The JDBC driver for your database is already included in the custom Docker image you built in Step 5. You do not need to follow the JDBC driver steps in the VM-oriented sections of that guide.

Once the scripts have been run, verify that both databases are set up correctly before proceeding:

  • Connect to your database instance and confirm that apim_db and shared_db both exist
  • Check that tables have been created in each database (the shared_db script creates UM_* and REG_* tables; the apim_db script creates AM_* tables)

Step 7 — Create the Keystore Secret

The Helm chart mounts a Kubernetes secret named apim-keystore-secret as a volume into the pods. The pods will not start if this secret does not exist.

  1. Extract the default keystores from your All-in-One image and create the secret:

    mkdir -p keystores

docker run --rm -v "$(pwd)/keystores:/keystores" --entrypoint bash <REGISTRY>/wso2am-mysql:<TAG> -c "cp /home/wso2carbon/wso2am-4.7.0/repository/resources/security/wso2carbon.jks /home/wso2carbon/wso2am-4.7.0/repository/resources/security/client-truststore.jks /keystores/"

kubectl create secret generic apim-keystore-secret \
  --from-file=wso2carbon.jks=keystores/wso2carbon.jks \
  --from-file=client-truststore.jks=keystores/client-truststore.jks \
  -n apim

  2. Verify the secret was created:

    kubectl get secret apim-keystore-secret -n apim

Note

The commands above use the default WSO2 keystores which are suitable for evaluation only. For production-level keystore setup, refer to Configuring Keystores in WSO2 API Manager.

Step 8 — Deploy the All-in-One

  1. Download the default values file for the All-in-One:

    curl -L https://raw.githubusercontent.com/wso2/helm-apim/4.7.x/resources/am-pattern-5-all-in-one_GW_KM/default_values.yaml \
  -o values-aio.yaml

  2. Open values-aio.yaml and update the sections below before deploying.

    Disable AIO ingresses for gateway traffic — the dedicated Classic Gateway owns the gateway, websocket, and websub ingresses. Disable them on the AIO to prevent conflicts:

    kubernetes:
  ingress:
    gateway:
      enabled: false
    websocket:
      enabled: false
    websub:
      enabled: false

    Warning

    On managed clusters (AKS, GKE), the NGINX admission webhook enforces that no two Ingress resources can claim the same hostname. If these are left enabled, the helm install apim-gw command will fail. The AIO management ingress (am.wso2.com) remains enabled — only the gateway-related ingresses are disabled here.

    Custom image — point to the All-in-One image you built in Step 5:

    wso2:
  deployment:
    image:
      registry: "docker.io"
      repository: "<your-username>/wso2am-mysql"
      tag: "<TAG>"
      digest: "sha256:abcdef..."

    Database connection — point to the database you set up in Step 6:

      apim:
    configurations:
      databases:
        apim_db:
          url: "<JDBC_URL_FOR_APIM_DB>"
          username: "<DB_USERNAME>"
          password: "<DB_PASSWORD>"
        shared_db:
          url: "<JDBC_URL_FOR_SHARED_DB>"
          username: "<DB_USERNAME>"
          password: "<DB_PASSWORD>"

    Replace <JDBC_URL_FOR_APIM_DB> and <JDBC_URL_FOR_SHARED_DB> with the JDBC connection URL for your database. For URL formats per database type, see Setting Up Databases.

  3. Generate the encryption key and deploy the All-in-One:

    Encryption key is mandatory

    WSO2 API Manager 4.7.0 requires a 256-bit encryption key before first startup. In a distributed deployment, all components must use the same key. Generate it once and keep $APIM_ENCRYPTION_KEY set in your shell for the Key Manager and Gateway deploy steps that follow.

    openssl is not available on Windows by default. Windows users can generate the key using PowerShell's System.Security.Cryptography.RandomNumberGenerator class.

    export APIM_ENCRYPTION_KEY=$(openssl rand -hex 32)

helm install apim wso2/wso2am-all-in-one \
  --version 4.7.0-1 \
  --namespace apim --create-namespace \
  --dependency-update \
  -f values-aio.yaml \
  --set wso2.apim.configurations.encryption.key=$APIM_ENCRYPTION_KEY

  4. Wait for the All-in-One pod to be ready:

    kubectl get pods -n apim -w

    The All-in-One pod should show 1/1 Running before deploying the Key Manager. This may take several minutes on the first run.

Step 9 — Deploy the Key Manager

  1. Download the default values file for the Key Manager:

    curl -L https://raw.githubusercontent.com/wso2/helm-apim/4.7.x/resources/am-pattern-5-all-in-one_GW_KM/default_km_values.yaml \
  -o values-km.yaml

  2. Open values-km.yaml and update the following sections.

    Custom image — the Key Manager uses the ACP image:

    wso2:
  deployment:
    image:
      registry: "docker.io"
      repository: "<your-username>/wso2am-acp-mysql"
      tag: "<TAG>"
      digest: "sha256:abcdef..."

    Note

    The default values file pre-configures the service URLs assuming the All-in-One was deployed with release name apim. If you used a different release name, run kubectl get svc -n apim to find the correct service name and update eventhub.serviceUrl and eventhub.urls in the values file.

    Database connection — the Key Manager needs access to both databases:

      apim:
    configurations:
      databases:
        apim_db:
          url: "<JDBC_URL_FOR_APIM_DB>"
          username: "<DB_USERNAME>"
          password: "<DB_PASSWORD>"
        shared_db:
          url: "<JDBC_URL_FOR_SHARED_DB>"
          username: "<DB_USERNAME>"
          password: "<DB_PASSWORD>"

    Replace <JDBC_URL_FOR_APIM_DB> and <JDBC_URL_FOR_SHARED_DB> with the JDBC connection URL for your database. For URL formats per database type, see Setting Up Databases.

  3. Deploy the Key Manager:

    helm install apim-km wso2/wso2am-km \
  --version 4.7.0-1 \
  --namespace apim \
  --dependency-update \
  -f values-km.yaml \
  --set wso2.apim.configurations.encryption.key=$APIM_ENCRYPTION_KEY

  4. Wait for the Key Manager pod to be ready:

    kubectl get pods -n apim -w

    The Key Manager pod should show 1/1 Running before deploying the Classic Gateway. This may take several minutes on the first run.

Step 10 — Deploy the Classic Gateway

Deploy the Classic Gateway using the default values:

helm install apim-gw wso2/wso2am-universal-gw \
  --version 4.7.0-1 \
  --namespace apim \
  --dependency-update \
  -f https://raw.githubusercontent.com/wso2/helm-apim/4.7.x/resources/am-pattern-5-all-in-one_GW_KM/default_gw_values.yaml \
  --set wso2.apim.configurations.encryption.key=$APIM_ENCRYPTION_KEY

To customise before deploying

If you used different release names than apim-km and apim, or want to make other changes, download the values file first, edit it, then replace the -f <url> above with -f values-gw.yaml:

curl -L https://raw.githubusercontent.com/wso2/helm-apim/4.7.x/resources/am-pattern-5-all-in-one_GW_KM/default_gw_values.yaml \
  -o values-gw.yaml

Step 11 — Configure DNS

Envoy Gateway users

If you installed Envoy Gateway (the default), get the external address from the Gateway resource:

kubectl get gateway -n apim

Then map the kubernetes.gatewayAPI.* hostnames from your values.yaml to the external address.

Windows users

On Windows, the hosts file is at C:\Windows\System32\drivers\etc\hosts. Open Notepad (or another text editor) as Administrator to edit it.

  1. Run the following command in a separate terminal and keep it running:

    minikube tunnel

    Note

    minikube tunnel requires sudo privileges to expose ports 80 and 443. You will be prompted for your system password. Once entered, the tunnel will stay running silently — this is expected. Do not close this terminal. Open a new terminal for the next steps.

  2. Get the external IP:

    kubectl get gateway -n apim

    kubectl get ing -n apim

    The ADDRESS column should now show 127.0.0.1.

  3. Add the following entry to your /etc/hosts file:

    127.0.0.1 am.wso2.com gw.wso2.com websocket.wso2.com websub.wso2.com

  1. Get the external IP:

    kubectl get gateway -n apim

    kubectl get ing -n apim

  2. Add the following entry to your /etc/hosts file, replacing <EXTERNAL-IP> with the value from the output above:

    <EXTERNAL-IP> am.wso2.com gw.wso2.com websocket.wso2.com websub.wso2.com

  1. Get the external IP:

    kubectl get gateway -n apim

    kubectl get ing -n apim

  2. For quick testing, add the ADDRESS value to your /etc/hosts:

    <EXTERNAL-IP> am.wso2.com gw.wso2.com websocket.wso2.com websub.wso2.com

    For a production setup, create a DNS record in your DNS provider (e.g. Route 53, Azure DNS, Cloud DNS) mapping the hostnames to the external IP instead of using /etc/hosts.

Note

These are the default hostnames. If you customised the hostnames in your values.yaml, use those values here instead:

  • Envoy Gateway: kubernetes.gatewayAPI.management.hostname, kubernetes.gatewayAPI.gateway.hostname, etc.
  • NGINX: ingress.controlPlane.hostname, ingress.gateway.hostname, etc.

Step 12 — Access the Portals

  1. Once DNS is configured, open the following URLs in your browser:

    Portal URL
    Publisher https://<kubernetes.gatewayAPI.management.hostname>/publisher
    Developer Portal https://<kubernetes.gatewayAPI.management.hostname>/devportal
    Carbon Console https://<kubernetes.gatewayAPI.management.hostname>/carbon
    Gateway https://<kubernetes.gatewayAPI.gateway.hostname>
    Portal URL
    Publisher https://<kubernetes.ingress.management.hostname>/publisher
    Developer Portal https://<kubernetes.ingress.management.hostname>/devportal
    Carbon Console https://<kubernetes.ingress.management.hostname>/carbon
    Gateway https://<kubernetes.ingress.gateway.hostname>

    Replace the hostname placeholders with the actual values from your values.yaml. With default values, all hostnames resolve to am.wso2.com (management) and gw.wso2.com (gateway).

    Chrome may block access

    Chrome enforces HSTS preloading for *.wso2.com domains, which removes the option to bypass the self-signed certificate warning entirely. Use Firefox or Safari instead, and click through the certificate warning when prompted.

    Default credentials: admin / admin

Customized Configurations

All configurations in this section are made by editing your values-aio.yaml, values-km.yaml, or values-gw.yaml files.

Note

Once all changes are in place, deploy using Deploy with Custom Values.

The Helm charts for WSO2 API Manager are available in the WSO2 Helm Chart Repository.

Resource Naming Convention

Kubernetes resources created by the Helm charts follow this naming pattern:

<RELEASE_NAME>-<CHART_NAME>-<RESOURCE_NAME>

1. Image and Registry

1.1 Private Registry Authentication

If your registry is private and requires authentication, enable imagePullSecrets in all values files:

wso2:
  deployment:
    image:
      imagePullSecrets:
        enabled: true
        username: ""
        password: ""

2. Database and Credentials

2.1 Configure Admin Credentials

The default admin credentials are admin/admin. Change these before deploying to any shared or production environment to prevent unauthorised access.

wso2:
  apim:
    configurations:
      adminUsername: ""
      adminPassword: ""

2.2 Update Keystore Passwords

If you are mounting custom keystores (see section 3.1), update the passwords here to match. If left as defaults while using custom keystores, WSO2 API-M will fail to start due to password mismatch.

wso2:
  apim:
    configurations:
      security:
        keystores:
          primary:
            password: ""
            keyPassword: ""
          internal:
            password: ""
            keyPassword: ""
          tls:
            password: ""
            keyPassword: ""
        truststore:
          password: ""

Note

keyPassword must equal password for each keystore. WSO2 API Manager requires these to be identical due to a limitation in internal third-party components — setting them to different values will cause startup failures.

2.3 Configure the Internal Encryption Key

In a distributed deployment, all API Manager nodes must use the same internal encryption key to encrypt and decrypt shared data. Set this before the first startup — changing it afterwards will cause decryption failures for any data already encrypted.

  1. Generate a unique 256-bit key:

    openssl rand -hex 32

    Note

    openssl is not available on Windows by default. Windows users can generate the key using PowerShell's System.Security.Cryptography.RandomNumberGenerator class.

  2. Add the key to all your values files:

    wso2:
  apim:
    configurations:
      encryption:
        key: "<generated-64-char-hex-key>"

    If you encrypt secrets using the cipher tool and secure vault (see Section 3.2), also encrypt the internal encryption key and set the encrypted value here instead of the plaintext key.

Warning

All nodes in the deployment must use the exact same key. A mismatch will cause decryption failures across the cluster.

2.4 Component Configuration References

All available configuration options for each Helm chart are documented in their respective component guides:

3. Security

3.1 Mount Keystore and Truststore

In Step 7, you created apim-keystore-secret using the default WSO2 keystores. Those are self-signed certificates suitable for evaluation only.

For production-level keystore setup, refer to Configuring Keystores in WSO2 API Manager. Then recreate the secret with your own certificates:

kubectl create secret generic apim-keystore-secret \
  --from-file=wso2carbon.jks \
  --from-file=client-truststore.jks \
  -n apim

Keep the following in mind:

  • The secret must be created in the same namespace as the deployment (e.g. apim).
  • Use the same secret name in both the kubectl command above and in your values files.
  • If you are using different keystore filenames or aliases, update the helm chart configurations accordingly.

For more details on configuring keystores, see Configuring Keystores in WSO2 API Manager.

3.2 Encrypt Secrets

By default, database passwords and other sensitive values are stored as plain text in the values files. This is acceptable for local testing but a security risk in production.

Option 1: Cipher Tool

Use the cipher tool from the product pack to encrypt secrets:

sh ciphertool.sh -Dconfigure -Dsymmetric -Dkey.based.encryption

Option 2: apictl

You can also use apictl to encrypt secrets. For further guidance, refer to Encrypting Secrets with apictl.

  1. Initialize apictl using the trust store:

    apictl secret init

    Example:

    apictl secret init
Enter Key Store location: /home/wso2carbon/wso2am-4.7.0/repository/resources/security/wso2carbon.jks
Enter Key Store password:
Enter Key alias: wso2carbon
Enter Key password:

Key Store initialization completed

  2. Encrypt each of the following values using apictl secret create:

    • admin_password
    • keystore_password
    • keystore_key_password
    • ssl_keystore_password
    • ssl_key_password
    • internal_keystore_password
    • internal_keystore_key_password
    • truststore_password
    • apim_db_password
    • shared_db_password

    Example:

    apictl secret create
Enter plain alias for secret: db_password
Enter plain text secret:
Repeat plain text secret:

db_password : eKALmLVA+HFVl7vxxxxxxxxxxxxxxxxxxxxxxxxxxxjakhHN

  3. Replace the plain text values in your values files with the encrypted values.

  4. Enable secure vault:

    # -- Secure vault enabled
secureVaultEnabled: true

  5. If you are using a cloud provider secret manager, store the secret encryption key there and reference it so the runtime can fetch and use it to decrypt secrets:

    aws:
  secretsManager:
    secretIdentifiers:
      secretEncryptionKey:
        # -- Secret name in the cloud provider's secret manager
        secretName: ""
        # -- Secret key in the cloud provider's secret manager
        secretKey: ""

    Note

    Currently, AWS, Azure, and GCP Secrets Managers are supported.

3.3 Configure SSL

For WSO2 recommended SSL best practices when exposing services outside the cluster, refer to the WSO2 container guide.

3.4 Configure JWKS URL

Important for Pattern 5 deployments

In Pattern 5, the Key Manager handles token issuance. Use the KM Kubernetes service name for the JWKS URL so all components can resolve it via cluster DNS:

wso2:
  apim:
    configurations:
      oauth_config:
        oauth2JWKSUrl: "https://<KM_SERVICE_NAME>:9443/oauth2/jwks"

4. Routing Controller

4.1 Configure Envoy Gateway (Default in 4.7.x)

Envoy Gateway is the default routing controller in WSO2 API Manager 4.7.0. It uses the Kubernetes Gateway API, which provides more flexibility than traditional Ingress resources.

Step 1: Create a TLS secret

kubectl create secret tls apim-tls-secret \
  --key <private-key-file> \
  --cert <certificate-file> \
  -n apim

Step 2: Install Envoy Gateway (if not already done in Step 4 of the Quick Start)

helm install envoy-gateway oci://docker.io/envoyproxy/gateway-helm \
  --version v1.7.0 -n envoy-gateway-system \
  --set config.envoyGateway.extensionApis.enableBackend=true \
  --set envoyGateway.gateway.experimentalFeatures.enabled=true \
  --create-namespace

Step 3: Apply the Gateway manifest

kubectl apply \
  -f https://raw.githubusercontent.com/wso2/helm-apim/4.7.x/resources/assets/sample-gateway.yaml \
  -n apim

Step 4: (Optional) Create a CA ConfigMap for backend TLS

If you want Envoy Gateway to verify backend TLS certificates, create a ConfigMap with your CA certificate:

kubectl create configmap wso2-ca-cert \
  --from-file=ca.crt=<path-to-ca-cert> \
  -n apim

Step 5: Configure Envoy Gateway in values.yaml

kubernetes:
  gatewayAPI:
    enabled: true
    gatewayName: "wso2-apim-gateway"
    defaultConfigMapCreation: false
    management:
      enabled: true
      hostname: "am.wso2.com"
    gateway:
      enabled: true
      hostname: "gw.wso2.com"
    websocket:
      enabled: true
      hostname: "websocket.wso2.com"
    websub:
      enabled: true
      hostname: "websub.wso2.com"
    backendTLSPolicy:
      enabled: true
      caCertificateConfigMap: "wso2-ca-cert"
      hostname: "<hostname used in the TLS certificate>"
    backendTrafficPolicy:
      enabled: true
      cookie:
        name: "WSO2_CP_STICKY_SESSION"
        ttl: "0s"

4.2 Configure NGINX Ingress Controller

Use this section if you are using NGINX Ingress Controller instead of Envoy Gateway.

Configure ingress annotations

You may need to customise these if you want to enable sticky sessions, change the backend protocol, or apply rate limiting.

ingressClass: "nginx"
ingress:
  tlsSecret: ""
  ratelimit:
    enabled: false
    zoneName: ""
    burstLimit: ""
  controlPlane:
    hostname: "am.wso2.com"
    annotations:
      nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
      nginx.ingress.kubernetes.io/affinity: "cookie"
      nginx.ingress.kubernetes.io/session-cookie-name: "route"
      nginx.ingress.kubernetes.io/session-cookie-hash: "sha1"

Refer to the NGINX ingress annotations documentation for the full list of supported options.

Configure TLS for Ingress

kubectl create secret tls my-tls-secret \
  --key <private-key-file> \
  --cert <certificate-file> \
  -n apim

Then set the secret name in your values.yaml under ingress.tlsSecret. Refer to the Kubernetes ingress TLS documentation for more details.

5. Gateway and High Availability

5.1 Configure Key Manager, EventHub, and Throttling

In Pattern 5, the Gateway connects to the dedicated KM for token validation, and to the All-in-One for event subscriptions and throttling:

km:
  serviceUrl: "<KM_SERVICE_NAME>"

eventhub:
  serviceUrl: "<AIO_SERVICE_NAME>"
  urls:
    - "<AIO_SERVICE_NAME>"

throttling:
  serviceUrl: "<AIO_SERVICE_NAME>"
  servicePort: 9443
  urls:
    - "<AIO_SERVICE_NAME>"
  unlimitedTier: true
  headerBasedThrottling: false
  jwtClaimBasedThrottling: false
  queryParamBasedThrottling: false

km:
  serviceUrl: "<KM_SERVICE_NAME>"

eventhub:
  serviceUrl: "<AIO_SERVICE_NAME>"
  urls:
    - "<AIO_POD_1_SERVICE_NAME>"
    - "<AIO_POD_2_SERVICE_NAME>"

throttling:
  serviceUrl: "<AIO_SERVICE_NAME>"
  servicePort: 9443
  urls:
    - "<AIO_POD_1_SERVICE_NAME>"
    - "<AIO_POD_2_SERVICE_NAME>"
  unlimitedTier: true
  headerBasedThrottling: false
  jwtClaimBasedThrottling: false
  queryParamBasedThrottling: false

5.2 Configure Gateway Replicas

wso2:
  deployment:
    replicas: 2
    minReplicas: 1
    maxReplicas: 3

5.3 Configure Multiple Gateways

gateway:
  environments:
    - name: "Default"
      type: "hybrid"
      gatewayType: "Regular"
      provider: "wso2"
      displayInApiConsole: true
      description: "Handles both production and sandbox token traffic."
      showAsTokenEndpointUrl: true
      serviceName: "apim-gw-wso2am-gateway-service"
      servicePort: 9443
      wsHostname: "websocket.wso2.com"
      httpHostname: "gw.wso2.com"
      websubHostname: "websub.wso2.com"

See Deploy through multiple API Gateways for more details.

5.4 Configure User Store Properties

userStore:
  type: "database_unique_id"
  properties:
    ReadGroups: true

Warning

If you do not need to set any custom properties, remove the properties block entirely. An empty properties block will cause the deployment to fail.

See Working with user store properties for the full list of options.

5.5 Enable High Availability for the All-in-One

By default, Pattern 5 deploys a single All-in-One pod. To run two pods in an active-active configuration, set:

wso2:
  deployment:
    highAvailability: true

When enabling HA, also update the EventHub and throttling URLs in values-gw.yaml to include both pod service names — see section 5.1.

6. Deploy with Custom Values

Once your values files are configured, generate the encryption key once and deploy all three components in order with the same key:

export APIM_ENCRYPTION_KEY=$(openssl rand -hex 32)

helm install apim wso2/wso2am-all-in-one \
  --version 4.7.0-1 \
  --namespace apim --create-namespace \
  --dependency-update \
  -f values-aio.yaml \
  --set wso2.apim.configurations.encryption.key=$APIM_ENCRYPTION_KEY

helm install apim-km wso2/wso2am-km \
  --version 4.7.0-1 \
  --namespace apim \
  --dependency-update \
  -f values-km.yaml \
  --set wso2.apim.configurations.encryption.key=$APIM_ENCRYPTION_KEY

helm install apim-gw wso2/wso2am-universal-gw \
  --version 4.7.0-1 \
  --namespace apim \
  --dependency-update \
  -f values-gw.yaml \
  --set wso2.apim.configurations.encryption.key=$APIM_ENCRYPTION_KEY

Deployment Parameters

  • Release names: apim, apim-km, apim-gw
  • <namespace> — Kubernetes namespace to deploy into (e.g. apim)
  • Helm chart paths: wso2/wso2am-all-in-one, wso2/wso2am-km, wso2/wso2am-universal-gw (or local clones)
