Pattern 2: API-M Deployment with Simple Scalable Setup

This is the standard distributed deployment for API Manager. The default configuration consists of a single API Control Plane and two Universal Gateways for better scalability and performance.

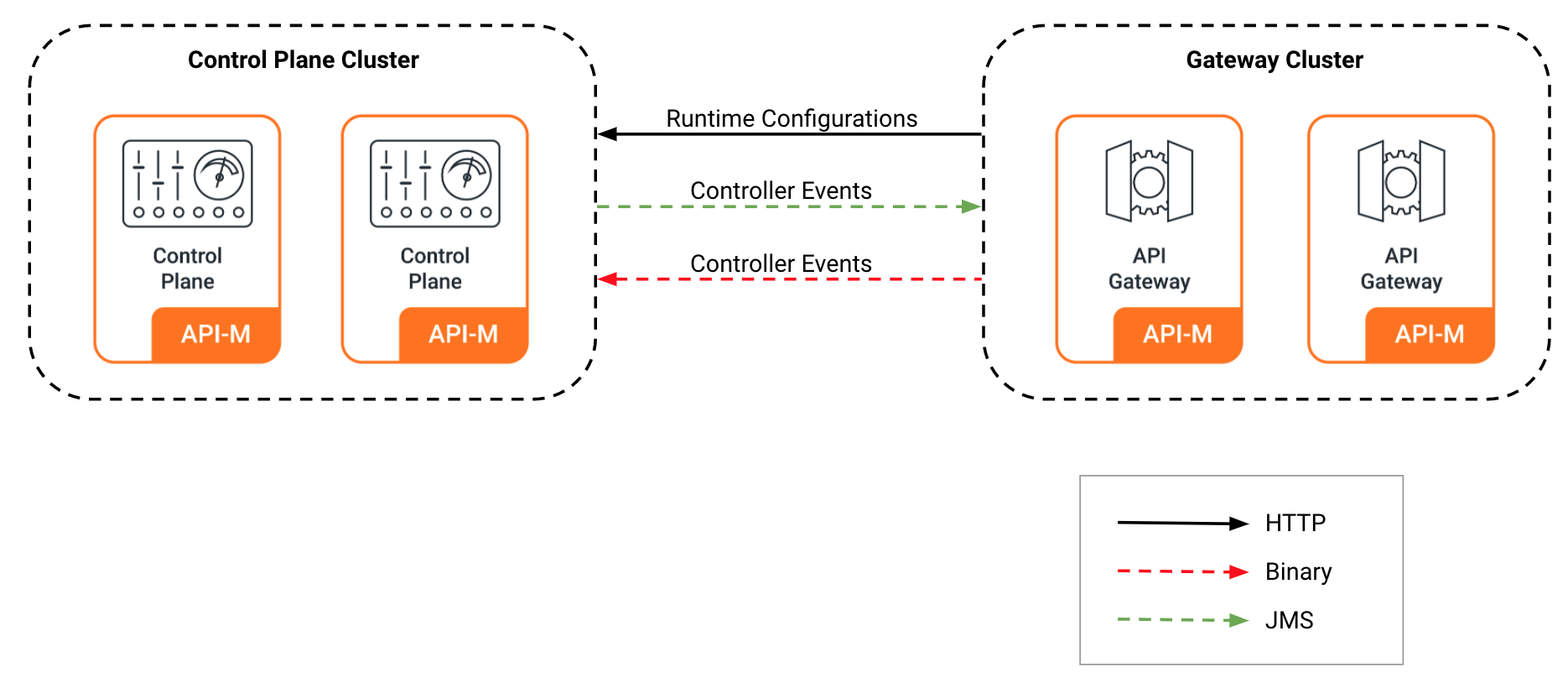

simple scalable api-m deployment

Info

For advanced details on the deployment pattern, please refer to the official documentation.

Contents

Prerequisites

Before you begin, ensure you have the following prerequisites in place:

Step 1 - Set Up Basic Configurations

Info

The following tools and configurations are necessary for deploying WSO2 API-M in a Kubernetes environment.

  1. Install the required tools:
  2. Git
  3. Helm

  4. Kubernetes client

  5. Ensure you have a running Kubernetes cluster.

  6. Install the NGINX Ingress Controller.

  7. Add the WSO2 Helm chart repository:

    helm repo add wso2 https://helm.wso2.com && helm repo update

Step 2 - Build Docker Images

  • WSO2 product Docker images are used for the Kubernetes deployment.

WSO2 product Docker images available at DockerHub package General Availability (GA) versions of WSO2 products with no WSO2 Updates.

For a production-grade deployment of the desired WSO2 product version, it is highly recommended to use the relevant Docker image which packages WSO2 Updates, available at WSO2 Private Docker Registry. To use these images, you need an active WSO2 Subscription.

  • WSO2 API Manager 4.5.0 provides three Docker images:
  • All-in-one - wso2am

  • Universal Gateway (GW) - wso2am-universal-gw

  • Since the products need to connect to databases at runtime, you need to include the relevant JDBC drivers in the distribution. This can be included in the Docker image building stage. For example, you can add the MySQL driver as follows:

    ADD --chown=wso2carbon:wso2 https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.28/mysql-connector-java-8.0.28.jar ${WSO2_SERVER_HOME}/repository/components/lib

  • Furthermore, if there are any customizations to the JARs in the product, those can also be included in the Docker image itself rather than mounting them from the deployment level (assuming that they are common to all environments).
  • The following is a sample Dockerfile to build a custom WSO2 APIM image. Depending on your requirements, you may refer to the following and make the necessary additions. The script below will:
  • Use WSO2 APIM 4.5.0 as the base image
  • Change UID and GID to 10001 (the default APIM image has 802 as UID and GID)

  • Copy third-party libraries to the <APIM_HOME>/lib directory

  • Dockerfile for All-in-one

    FROM docker.wso2.com/wso2am:4.5.0.0

ARG USER=wso2carbon
ARG USER_HOME=/home/${USER}
ARG WSO2_SERVER_NAME=wso2am
ARG WSO2_SERVER_VERSION=4.5.0
ARG WSO2_SERVER=${WSO2_SERVER_NAME}-${WSO2_SERVER_VERSION}
ARG WSO2_SERVER_HOME=${USER_HOME}/${WSO2_SERVER}

# Copy JDBC MySQL driver
ADD --chown=wso2carbon:wso2 https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.28/mysql-connector-java-8.0.28.jar ${WSO2_SERVER_HOME}/repository/components/lib

  • Dockerfile for Universal Gateway

    FROM docker.wso2.com/wso2am-universal-gw:4.5.0.0

ARG USER=wso2carbon
ARG USER_HOME=/home/${USER}
ARG WSO2_SERVER_NAME=wso2am-universal-gw
ARG WSO2_SERVER_VERSION=4.5.0
ARG WSO2_SERVER=${WSO2_SERVER_NAME}-${WSO2_SERVER_VERSION}
ARG WSO2_SERVER_HOME=${USER_HOME}/${WSO2_SERVER}

# Copy JDBC MySQL driver
ADD --chown=wso2carbon:wso2 https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.28/mysql-connector-java-8.0.28.jar ${WSO2_SERVER_HOME}/repository/components/lib

  • Once the required changes have been made to the Dockerfile, you can use the following command to build the custom image. Replace CONTAINER_REGISTRY, IMAGE_REPO, and TAG accordingly.

    docker build -t CONTAINER_REGISTRY/IMAGE_REPO:TAG .

  • After building your custom Docker image, you need to push it to your container registry so it can be accessed by your Kubernetes cluster. Use the following command, replacing CONTAINER_REGISTRY, IMAGE_REPO, and TAG with your values:
    docker push CONTAINER_REGISTRY/IMAGE_REPO:TAG

Step 3 - Configure Database

  • Before running the API Manager, you must configure the databases and populate them with the initial data. All required database scripts are available in the dbscripts directory of the product pack. Locate the appropriate scripts for your chosen database engine and execute them accordingly. It is recommended to use two separate database users with limited permissions for enhanced security.

  • An example for MySQL is provided below:

    CREATE DATABASE apim_db CHARACTER SET latin1;
CREATE DATABASE shared_db CHARACTER SET latin1;

GRANT ALL ON apim_db.* TO 'apimadmin'@'%';

CREATE USER 'sharedadmin'@'%' IDENTIFIED BY 'sharedadmin';
GRANT ALL ON shared_db.* TO 'sharedadmin'@'%';

    mysql -h <DB_HOST> -P 3306 -u sharedadmin -p -Dshared_db < './dbscripts/mysql.sql';
mysql -h <DB_HOST> -P 3306 -u apimadmin -p -Dapim_db < './dbscripts/apimgt/mysql.sql';

Minimal Configuration

If you want to quickly try out WSO2 API Manager on Kubernetes with minimal configuration, you can use the default values provided in the pre-configured YAML files.

Quick Start Configuration

This minimal configuration includes:

  • External database connection (requires setup)
  • Default keystore and truststore
  • Basic settings for a scalable deployment with Control Plane and Gateway separation

Note: This deployment requires separate databases. Follow the steps in Step 2 - Build Docker Images to build the Docker images with JDBC drivers, and Step 3 - Configure Database to set up the database.

Before deploying, create a Kubernetes secret with the keystore and truststore:

# Create secret with default WSO2 keystores and truststores
kubectl create secret generic apim-keystore-secret --from-file=wso2carbon.jks --from-file=client-truststore.jks

Deploy API Manager with minimal configuration using the following commands:

# Deploy API Manager Control Plane
helm install apim wso2/wso2am-all-in-one --version 4.5.0-3 -f https://raw.githubusercontent.com/wso2/helm-apim/main/docs/am-pattern-2-all-in-one_GW/default_values.yaml

# Deploy Universal Gateway
helm install apim-gw wso2/wso2am-gw --version 4.5.0-3 -f https://raw.githubusercontent.com/wso2/helm-apim/main/docs/am-pattern-2-all-in-one_GW/default_gw_values.yaml

Important

Naming conventions are important. If you want to change them, ensure consistency throughout your configuration.

Once the services are up and running, make sure you have the NGINX Ingress Controller deployed by following the steps outlined in the Add Ingress Controller section.

Configuration

1. General Configuration of Helm Charts

The Helm charts for the API Manager deployment are available in the WSO2 Helm Chart Repository. You can either use the charts from the repository or clone the repository and use the charts from the local copy. - The Helm naming convention for APIM follows a simple pattern. The following format is used for naming the resources: <RELEASE_NAME>-<CHART_NAME>-<RESOURCE_NAME>

1.1 Add Ingress Controller

The recommendation is to use the NGINX Ingress Controller suitable for your cloud environment or local deployment. Some sample annotations that could be used with the ingress resources are as follows:

  • The ingress class should be set to nginx in the ingress resource if you are using the NGINX Ingress Controller.

  • The following are some of the recommended annotations to include in the Helm charts for ingresses. These may vary depending on the requirements. Please refer to the documentation for more information about the annotations.

    ingressClass: "nginx"
ingress:
  tlsSecret: ""
  ratelimit:
    enabled: false
    zoneName: ""
    burstLimit: ""
  controlPlane:
    hostname: "am.wso2.com"
    annotations:
      nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
      nginx.ingress.kubernetes.io/affinity: "cookie"
      nginx.ingress.kubernetes.io/session-cookie-name: "route"
      nginx.ingress.kubernetes.io/session-cookie-hash: "sha1"
    - You need to create a Kubernetes secret including the certificate and the private key and include the name of the secret in the Helm charts. This will be used for TLS termination at the load balancer level by the ingress controller. Please refer to the documentation for more information.
    kubectl create secret tls my-tls-secret --key <private key filename> --cert <certificate filename>

1.2 Mount Keystore and Truststore

  • If you are not including the keystore and truststore in the Docker image, you can mount them using a Kubernetes secret. The following steps show how to mount the keystore and truststore using a Kubernetes secret.
  • Create a Kubernetes secret with the keystore and truststore files. The secret should contain the primary keystore file, secondary keystore file, internal keystore file, and the truststore file. Note that the secret should be created in the same namespace in which you will be setting up the deployment.
  • Make sure to use the same secret name when creating the secret and when configuring the Helm chart.
  • If you are using a different keystore file name and alias, make sure to update the Helm chart configurations accordingly. In addition to the primary, internal keystores and truststore files, you can also include the keystores for HTTPS transport as well.
  • Refer to the following sample command to create the secret and use it in the APIM.
kubectl create secret generic apim-keystore-secret --from-file=wso2carbon.jks --from-file=client-truststore.jks --from-file=wso2internal.jks -n <namespace>

By default, this deployment uses the default keystores and truststores provided by the relevant WSO2 product. For advanced details regarding managing custom Java keystores and truststores in a container-based WSO2 product deployment, please refer to the official WSO2 container guide.

1.3 Encrypting Secrets

  • If you need to use the cipher tool to encrypt the passwords in the secret, first you need to encrypt the passwords using the cipher tool. The cipher tool can be found in the bin directory of the product pack. The following command can be used to encrypt the password:
    sh cipher-tool.sh -Dconfigure
  • Also, the apictl can be used to encrypt passwords as well. Reference can be found in the following.
  • Then the encrypted values should be filled in the relevant fields of values.yaml.
  • Since the internal keystore password is required to resolve the encrypted value at runtime, you need to store the value in the cloud provider's secret manager. You can use the cloud provider's secret store to store the password of the internal keystore. The following section can be used to add the cloud provider's credentials to fetch the internal keystore password. Configuration for AWS can be as below:
    internalKeystorePassword:
  # -- AWS Secrets Manager secret name
  secretName: ""
  # -- AWS Secrets Manager secret key
  secretKey: ""

    Please note that currently AWS, Azure, and GCP Secrets Managers are only supported for this.

1.4 Configure Docker Image and Databases

  • Add the following configurations to reflect the Docker image created previously in the Helm chart.

    wso2:
  deployment:
    image:
      imagePullSecrets:
        enabled: false
        username: ""
        password: ""
      registry: ""
      repository: ""
      digest: ""

Info

If you are using a private Docker registry, you must enable imagePullSecrets.enabled and provide the username and password.

  • Provide the database configurations under the following section.

    wso2:
  apim:
    configurations:
      databases:
        apim_db:
          url: ""
          username: ""
          password: ""
        shared_db:
          url: ""
          username: ""
          password: ""
    - If you need to change the hostnames, update them under the Kubernetes ingress section. - Update the keystore passwords in the security section of the values.yaml file. - Review the descriptions of other configurations and modify them as needed to meet your requirements. A simple deployment can be achieved using the basic configurations provided in the values.yaml file. All configuration options for each Helm chart are documented in their respective component guides: - All-in-one - Universal Gateway - Update the admin credentials in the configuration directory.
      # -- Super admin username
  adminUsername: ""
  # -- Super admin password
  adminPassword: ""

1.5 Configure SSL in Service Exposure

  • For WSO2 recommended best practices in configuring SSL when exposing the internal product services outside of the Kubernetes cluster, please refer to the official WSO2 container guide.

2. All-in-One Configurations

2.1 Configure Multiple Gateways

If you need to distribute the Gateway load, you can configure multiple API Gateway environments in WSO2 API Manager to publish to a single Developer Portal. See more...

    gateway:
        # -- APIM Gateway environments
        environments:
        - name: "Default"
          type: "hybrid"
          gatewayType: "Regular"
          provider: "wso2"
          visibility:
          displayInApiConsole: true
          description: "This is a hybrid gateway that handles both production and sandbox token traffic."
          showAsTokenEndpointUrl: true
          serviceName: "apim-gw-wso2am-gateway-service"
          servicePort: 9443
          wsHostname: "websocket.wso2.com"
          httpHostname: "gw.wso2.com"
          websubHostname: "websub.wso2.com"
        - name: "Default_apk"
          type: "hybrid"
          provider: "wso2"
          gatewayType: "APK"
          displayInApiConsole: true
          description: "This is a hybrid gateway that handles both production and sandbox token traffic."
          showAsTokenEndpointUrl: true
          serviceName: "apim-gw-wso2am-gateway-service"
          servicePort: 9443
          wsHostname: "websocket.wso2.com"
          httpHostname: "default.gw.wso2.com:9095"
          websubHostname: "websub.wso2.com"

2.2 Configure User Store Properties

You can configure user store properties as described in this documentation:

    userStore:
    # -- User store type.
    type: "database_unique_id"
    # -- User store properties
    properties:
        ReadGroups: true

Warning

If you do not want to configure any of the above properties, you must remove the properties block from the YAML file.

2.4 Configure JWKS URL

By default, for the super tenant, the Resident Key Manager's JWKS URL is set to https://<HOSTNAME>:9443/oauth2/jwks. If you are using a virtual host like am.wso2.com that is not globally routable, this URL will be incorrect. You can configure the correct JWKS URL for the super tenant using the Helm chart as shown below:

wso2:
  apim:
    configurations:
      oauth_config:
        oauth2JWKSUrl: "https://<ALL-IN-ONE_SERVICE_NAME>:9443/oauth2/jwks"

2.5 Deploy Control Plane

After configuring all the necessary parameters, you can deploy the Control Plane using Helm:

  1. Create a namespace for your deployment
  2. Install the Helm chart with your custom configurations
# Create namespace for deployment
kubectl create namespace <namespace>

# Deploy API Manager Control Plane using Helm
helm install <release-name> <helm-chart-path> \
  --version 4.5.0-3 \
  --namespace <namespace> \
  --dependency-update \
  -f values.yaml \
  --create-namespace

Deployment Parameters

  • <release-name>: Choose a name for your release (e.g., apim)
  • <namespace>: Specify the Kubernetes namespace (e.g., wso2)
  • <helm-chart-path>: Path to the Helm chart (e.g., ./all-in-one or use the repository URL)

2.6 Enable High Availability

To enable high availability, you can scale the deployment by increasing the number of replicas for the API Manager runtime. This can be done by modifying the highAvailability in the values.yaml file:

wso2:
  deployment:
    highAvailability: true

3. Universal Gateway Configuration

3.1 Configure Key Manager, Eventhub and Throttling

The following configurations are needed to connect the Universal Gateway to the Control Plane:

  • Configure Control Plane as the Key Manager:

    km:
  # -- Key manager service name if default Resident KM is used
  serviceUrl: "<CONTROL_PLANE_SERVICE_NAME>"

  • Configure Event Hub connection:

eventhub:
  # -- Event hub (control plane) load balancer service URL
  serviceUrl: "<CONTROL_PLANE_SERVICE_NAME>"
  # -- Event hub service URLs
  urls:
    - "<CONTROL_PLANE_SERVICE_NAME>"

eventhub:
  # -- Event hub (control plane) load balancer service URL
  serviceUrl: "<CONTROL_PLANE_SERVICE_NAME>"
  # -- Event hub service URLs
  urls:
    - "<CONTROL_PLANE_1_SERVICE_NAME>"
    - "<CONTROL_PLANE_2_SERVICE_NAME>"
  • Configure throttling settings:
throttling:
  serviceUrl: "<CONTROL_PLANE_SERVICE_NAME>"
  portOffset: 0
  # -- Port of the service URL
  servicePort: 9443
  # -- Traffic manager service URLs. You only need to define one if the TM is not in HA.
  urls:
  - "<CONTROL_PLANE_SERVICE_NAME>"
  # -- Enable unlimited throttling tier
  unlimitedTier: true
  # -- Enable header-based throttling
  headerBasedThrottling: false
  # -- Enable JWT claim-based throttling
  jwtClaimBasedThrottling: false
  # -- Enable query param-based throttling
  queryParamBasedThrottling: false

throttling:
  serviceUrl: "<CONTROL_PLANE_SERVICE_NAME>"
  portOffset: 0
  # -- Port of the service URL
  servicePort: 9443
  # -- Traffic manager service URLs. You only need to define one if the Traffic Manager is not in HA.
  urls:
  - "<CONTROL_PLANE_1_SERVICE_NAME>"
  - "<CONTROL_PLANE_2_SERVICE_NAME>"
  # -- Enable unlimited throttling tier
  unlimitedTier: true
  # -- Enable header-based throttling
  headerBasedThrottling: false
  # -- Enable JWT claim-based throttling
  jwtClaimBasedThrottling: false
  # -- Enable query param-based throttling
  queryParamBasedThrottling: false

3.2 Enable Replicas

To ensure high availability and scalability of the Universal Gateway, you can configure the number of replicas in the wso2.deployment section of your values.yaml file.

wso2:
  deployment:
    replicas: 2
    minReplicas: 1
    maxReplicas: 3

Info

  • replicas: The initial number of pods to start with (e.g., 2).
  • minReplicas: The minimum number of pods that should always be running (e.g., 1).
  • maxReplicas: The maximum number of pods that can be scaled up to (e.g., 3).

3.3 Deploy Universal Gateway

After configuring all the necessary parameters, you can deploy the Universal Gateway using Helm:

# Deploy Universal Gateway using Helm
helm install <release-name> <helm-chart-path> \
  --version 4.5.0-3 \
  --namespace <namespace> \
  --dependency-update \
  -f values.yaml \
  --create-namespace

Deployment Parameters

  • <release-name>: Choose a name for your gateway release (e.g., apim-gw)
  • <namespace>: Specify the same Kubernetes namespace as the Control Plane
  • <helm-chart-path>: Path to the Gateway Helm chart (e.g., ./distributed/gateway or use the repository URL)

4. Add a DNS Record Mapping the Hostnames and the External IP

Obtain the external IP (EXTERNAL-IP) of the API Manager Ingress resources by listing the Kubernetes Ingresses:

kubectl get ing -n <NAMESPACE>

If the defined hostnames (in the previous step) are backed by a DNS service, add a DNS record mapping the hostnames and the external IP (EXTERNAL-IP) in the relevant DNS service.

If the defined hostnames are not backed by a DNS service, for evaluation purposes you may add an entry mapping the hostnames and the external IP in the /etc/hosts file on the client side:

<EXTERNAL-IP> <kubernetes.ingress.management.hostname> <kubernetes.ingress.gateway.hostname> <kubernetes.ingress.websub.hostname> <kubernetes.ingress.websocket.hostname>

5. Access Management Consoles

  • API Manager Publisher: https://<kubernetes.ingress.management.hostname>/publisher

  • API Manager DevPortal: https://<kubernetes.ingress.management.hostname>/devportal

  • API Manager Carbon Console: https://<kubernetes.ingress.management.hostname>/carbon

  • Universal Gateway: https://<kubernetes.ingress.gateway.hostname>
