Running API Manager as a Windows Service

Note

Before you begin:

Prerequisites

  • Install JDK and set up the JAVA_HOME environment variable.
  • Download and install a service wrapper library to use for running WSO2 API Manager as a Windows service. WSO2 recommends Yet Another Java Service Wrapper ( YAJSW ) version 13.05 and several WSO2 products provide a default wrapper.conf file in their <PRODUCT_HOME>/bin/yajsw/ directory. The instructions below describe how to set up this file.

Important

Use YAJSW 13.05 for both JDK 11 and JDK 17.

Setting up the YAJSW wrapper configuration file

The configuration file used for wrapping Java Applications by YAJSW is wrapper.conf , which is located in the <YAJSW_HOME>/conf/ directory. The configuration file in <PRODUCT_HOME>/bin/yajsw/ directory of many WSO2 products can be used as a reference for this. Following is the minimal wrapper.conf configuration for running a WSO2 product as a Windows service. Open your wrapper.conf file in <YAJSW_HOME>/conf/ directory, set its properties as follows, and save it.

Info

If you want to set additional properties from an external registry at runtime, store sensitive information like usernames and passwords for connecting to the registry in a properties file and secure it with secure vault.

Note

Manual Configurations in wrapper.conf file

Add the following class path manually to avoid errors in the WSO2 API Manager Management Console:

wrapper.java.classpath.4 = ${carbon_home}/repository/components/plugins/commons-lang_2.6.0.wso2v1.jar

Add the below line to prevent wso2carbon log file getting overridden at each service startup.

wrapper.java.additional.29 = -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager

Tip

You may encounter the following issue when starting Windows Services when the file "java" or a "dll" used by Java cannot be found by YAJSW.

"Error 2: The system cannot find the file specified"

This can be resolved by providing the "complete java path" for the wrapper.java.command as follows.

wrapper.java.command = ${JAVA_HOME}/bin/java

Minimal wrapper.conf configuration

    #********************************************************************
    # working directory
    #********************************************************************
    wrapper.working.dir=${carbon_home}/
    # Java Main class.
    # YAJSW: default is "org.rzo.yajsw.app.WrapperJVMMain"
    # DO NOT SET THIS PROPERTY UNLESS YOU HAVE YOUR OWN IMPLEMENTATION
    # wrapper.java.mainclass=
    #********************************************************************
    # tmp folder
    # yajsw creates temporary files named in_.. out_.. err_.. jna..
    # per default these are placed in jna.tmpdir.
    # jna.tmpdir is set in setenv batch file to <yajsw>/tmp
    #********************************************************************
    wrapper.tmp.path = ${jna_tmpdir}
    #********************************************************************
    # Application main class or native executable
    # One of the following properties MUST be defined
    #********************************************************************
    # Java Application main class
    wrapper.java.app.mainclass=org.wso2.carbon.bootstrap.Bootstrap
    # Log Level for console output.  (See docs for log levels)
    wrapper.console.loglevel=INFO
    # Log file to use for wrapper output logging.
    wrapper.logfile=${wrapper_home}\/log\/wrapper.log
    # Format of output for the log file.  (See docs for formats)
    #wrapper.logfile.format=LPTM
    # Log Level for log file output.  (See docs for log levels)
    #wrapper.logfile.loglevel=INFO
    # Maximum size that the log file will be allowed to grow to before
    #  the log is rolled. Size is specified in bytes.  The default value
    #  of 0, disables log rolling by size.  May abbreviate with the 'k' (kB) or
    #  'm' (mB) suffix.  For example: 10m = 10 megabytes.
    # If wrapper.logfile does not contain the string ROLLNUM it will be automatically added as suffix of the file name
    wrapper.logfile.maxsize=10m
    # Maximum number of rolled log files which will be allowed before old
    #  files are deleted.  The default value of 0 implies no limit.
    wrapper.logfile.maxfiles=10
    # Title to use when running as a console
    wrapper.console.title=WSO2 Carbon
    #********************************************************************
    # Wrapper Windows Service and Posix Daemon Properties
    #********************************************************************
    # Name of the service
    wrapper.ntservice.name=WSO2CARBON
    # Display name of the service
    wrapper.ntservice.displayname=WSO2 Carbon
    # Description of the service
    wrapper.ntservice.description=Carbon Kernel
    #********************************************************************
    # Wrapper System Tray Properties
    #********************************************************************
    # enable system tray
    wrapper.tray = true
    # TCP/IP port. If none is defined multicast discovery is used to find the port
    # Set the port in case multicast is not possible.
    wrapper.tray.port = 15002
    #********************************************************************
    # Exit Code Properties
    # Restart on non zero exit code
    #********************************************************************
    wrapper.on_exit.0=SHUTDOWN
    wrapper.on_exit.default=RESTART
    #********************************************************************
    # Trigger actions on console output
    #********************************************************************
    # On Exception show message in system tray
    wrapper.filter.trigger.0=Exception
    wrapper.filter.script.0=${wrapper_home}/scripts/trayMessage.gv
    wrapper.filter.script.0.args=Exception
    #********************************************************************
    # genConfig: further Properties generated by genConfig
    #********************************************************************
    placeHolderSoGenPropsComeHere=
    wrapper.java.command = java
    wrapper.java.classpath.1 = ${carbon_home}/bin/*.jar
    wrapper.java.classpath.2 = ${carbon_home}/lib/commons-lang-*.jar
    wrapper.java.classpath.3 = ${carbon_home}/lib/*.jar
    wrapper.app.parameter.1 = org.wso2.carbon.bootstrap.Bootstrap
    wrapper.app.parameter.2 = RUN
    wrapper.java.additional.1 = -Xbootclasspath/a:${carbon_home}/lib/xboot/*.jar
    wrapper.java.additional.2 = -Xms256m
    wrapper.java.additional.3 = -Xmx1024m
    wrapper.java.additional.4 = -XX:+HeapDumpOnOutOfMemoryError
    wrapper.java.additional.5 = -XX:HeapDumpPath=${carbon_home}/repository/logs/heap-dump.hprof
    wrapper.java.additional.6 = -Dcom.sun.management.jmxremote
    wrapper.java.additional.7 = -Dcarbon.registry.root=\/
    wrapper.java.additional.8 = -Dcarbon.home=${carbon_home}
    wrapper.java.additional.9 = -Dwso2.server.standalone=true
    wrapper.java.additional.10 = -Djava.command=${java_home}/bin/java
    wrapper.java.additional.11 = -Djava.io.tmpdir=${carbon_home}/tmp
    wrapper.java.additional.12 = -Dcatalina.base=${carbon_home}/lib/tomcat
    wrapper.java.additional.13 = -Djava.util.logging.config.file=${carbon_home}/repository/conf/etc/logging-bridge.properties
    wrapper.java.additional.14 = -Dcarbon.config.dir.path=${carbon_home}/repository/conf
    wrapper.java.additional.15 = -Dcarbon.logs.path=${carbon_home}/repository/logs
    wrapper.java.additional.16 = -Dcomponents.repo=${carbon_home}/repository/components/plugins
    wrapper.java.additional.17 = -Dconf.location=${carbon_home}/repository/conf
    wrapper.java.additional.18 = -Dcom.atomikos.icatch.file=${carbon_home}/lib/transactions.properties
    wrapper.java.additional.19 = -Dcom.atomikos.icatch.hide_init_file_path=true
    wrapper.java.additional.20 = -Dorg.apache.jasper.runtime.BodyContentImpl.LIMIT_BUFFER=true
    wrapper.java.additional.21 = -Dcom.sun.jndi.ldap.connect.pool.authentication=simple
    wrapper.java.additional.22 = -Dcom.sun.jndi.ldap.connect.pool.timeout=3000
    wrapper.java.additional.23 = -Dorg.terracotta.quartz.skipUpdateCheck=true
    wrapper.java.additional.24 = -Dorg.apache.jasper.compiler.Parser.STRICT_QUOTE_ESCAPING=false
    wrapper.java.additional.25 = -Dfile.encoding=UTF8
    wrapper.java.additional.26 = -DworkerNode=false
    wrapper.java.additional.27 = -Dhttpclient.hostnameVerifier=DefaultAndLocalhost
    wrapper.java.additional.28 = -Dcarbon.new.config.dir.path=${carbon_home}/repository/resources/conf
    wrapper.java.additional.29 = -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager

Setting up carbon_home

Extract WSO2 API Manager that you want to run as a Windows service, and then set the Windows environment variable carbon_home to the extracted product directory location.

Running the product in console mode

You will now verify that YAJSW is configured correctly for running the WSO2 API Manager as a Windows service.

  1. Open a Windows command prompt with administrative privileges and go to the <YAJSW_HOME>/bat/ directory. For example:

    cd C:\Documents and Settings\yajsw_home\bat

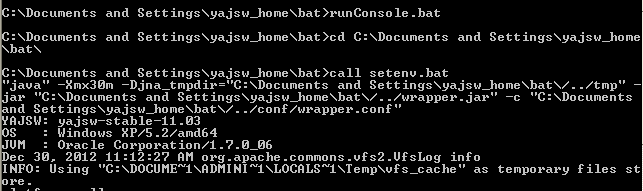

  2. Start the wrapper in console mode using the following command:

    runConsole.bat


    For example:

If the configurations are set properly for YAJSW, you will see console output similar to the following and can now access the WSO2 management console from your web browser via https://localhost:9443/carbon.

Working with the WSO2CARBON service

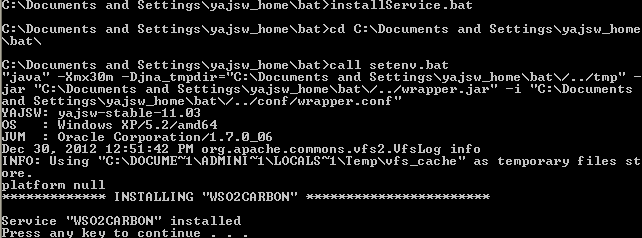

To install the Carbon-based product WSO2 API Manager as a Windows service, execute the following command in a console with administrative privileges, in the <YAJSW_HOME>/bat/ directory:

installService.bat

The console will display a message confirming that the WSO2CARBON service was installed.

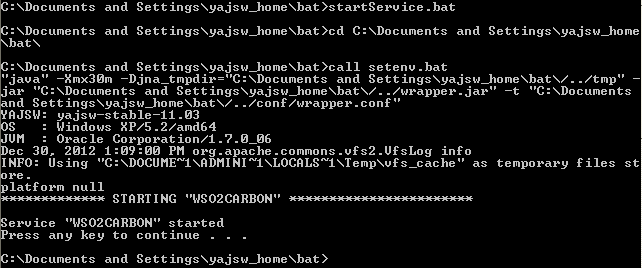

To start the service, execute the following command in the same console window:

startService.bat

The console will display a message confirming that the WSO2CARBON service was started.

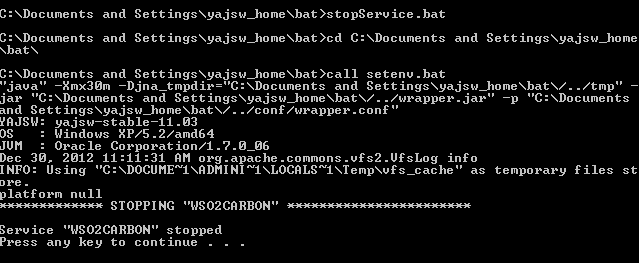

To stop the service, execute the following command in the same console window:

stopService.bat

The console will display a message confirming that the WSO2CARBON service has stopped.

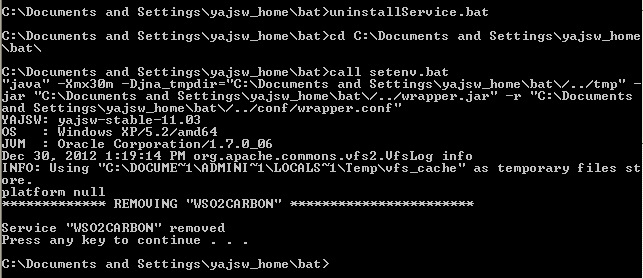

To uninstall the service, execute the following command in the same console window:

uninstallService.bat

The console will display a message confirming that the WSO2CARBON service was removed.
