Invoke an API using a SOAP Client

You can use any SOAP client to invoke an API . We use the SOAP UI in this example.

The examples here uses the PhoneVerification API, which is created in section Expose a SOAP service as a REST API .

Let's invoke the PhoneVerification API using a SOAP client.

  1. Sign in to the Developer Portal and click an API that you want to invoke (e.g., PhoneVerification ).

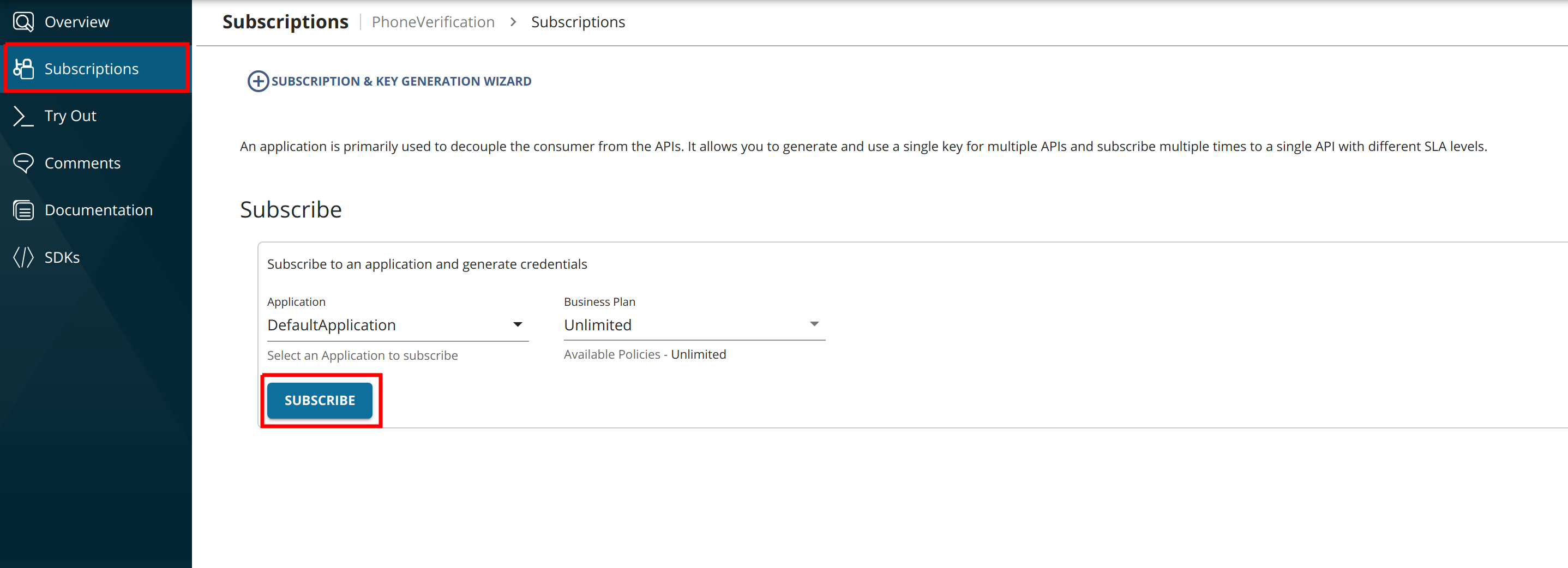

  2. The API's Overview page opens. Select an application (e.g., DefaultApplication ), with an available tier and subscribe to the API.

    Subscribe to Phone Verification API

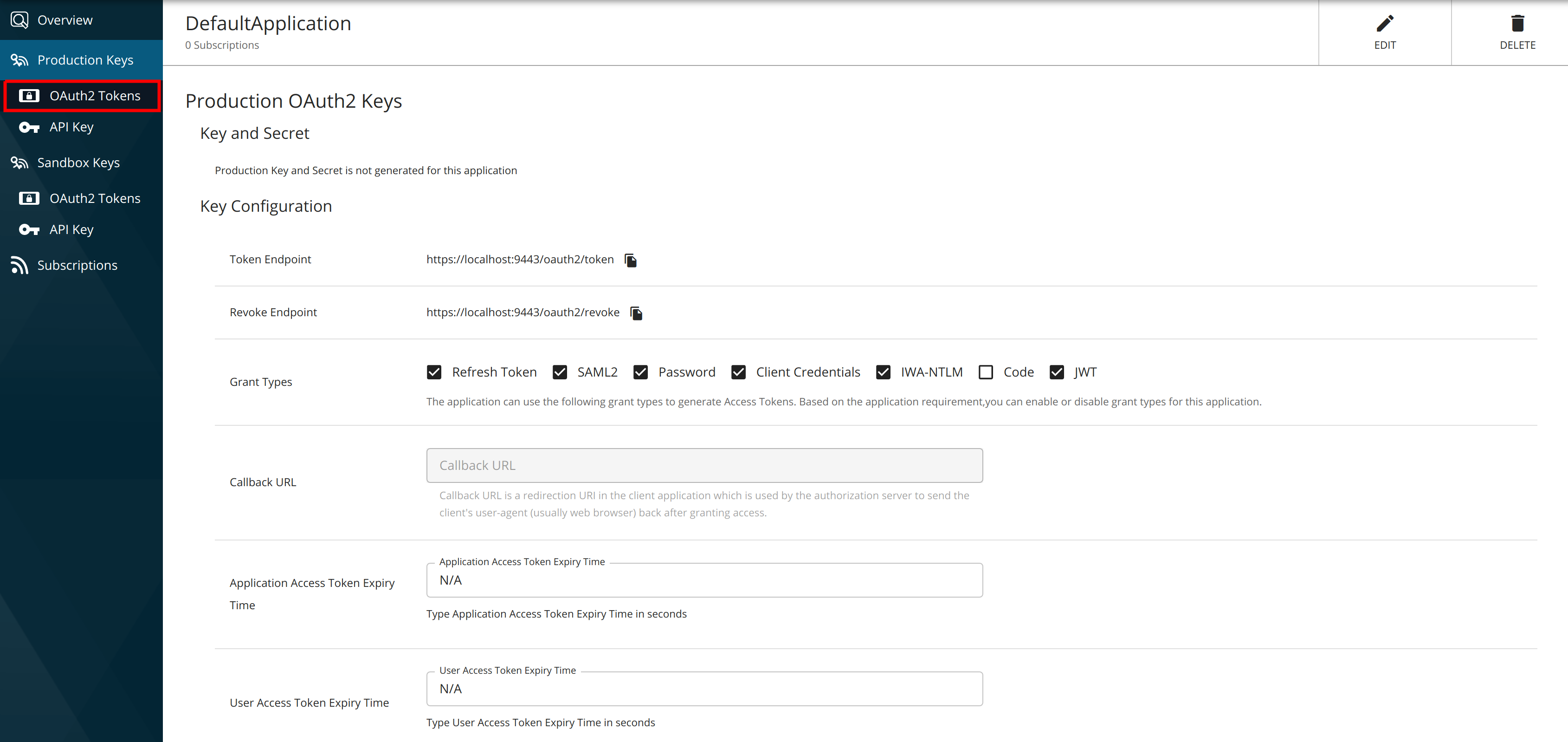

  3. Click the Applications menu, open the default application using which you subscribed to the API, and navigate to OAuth2 Tokens under Production Keys.

    oauth2 phone verification

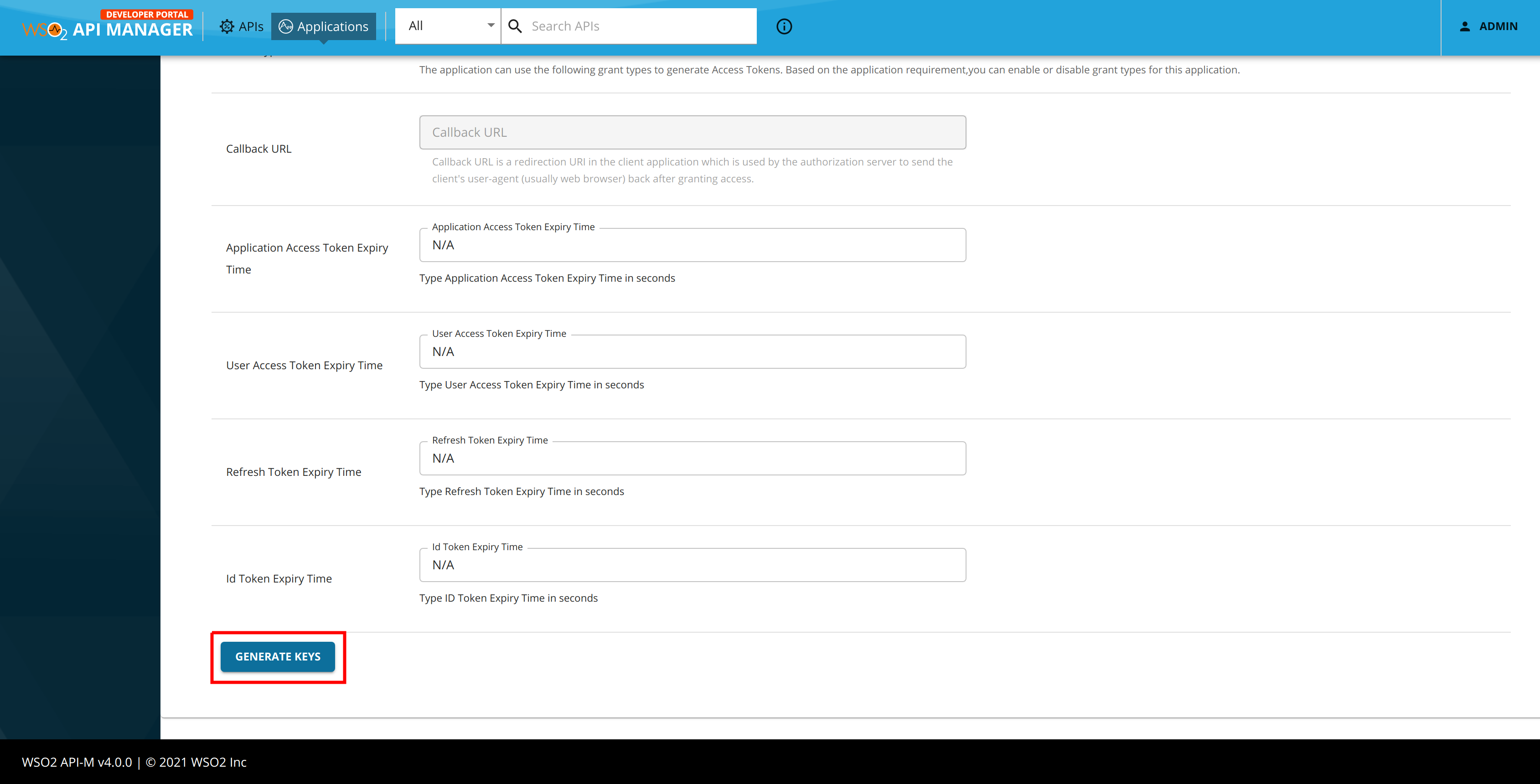

  4. Scroll down and generate a production key

    Generate Phone Verification OAuth Key

  5. Copy the access token to the clipboard as you need it later to invoke the API.

  6. Download the SOAP UI installation that suits your operating system from https://www.soapui.org/downloads/soapui.html and open its console.

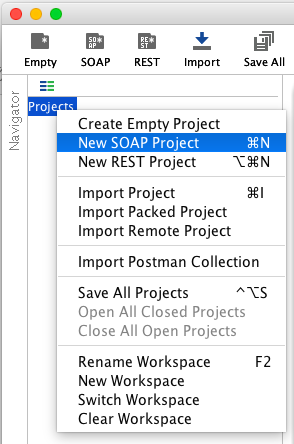

  7. In the SOAP UI, right click on the Projects menu and create a new SOAP project.

    Create new SOAP UI Project

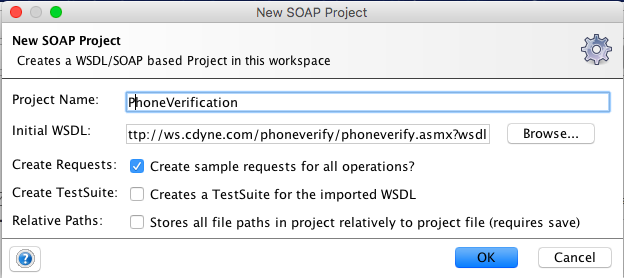

  8. Give your API's WSDL and click OK . In this case, the WSDL is as follows: http://ws.cdyne.com/phoneverify/phoneverify.asmx?wsdl

    SOAP UI New Project Window

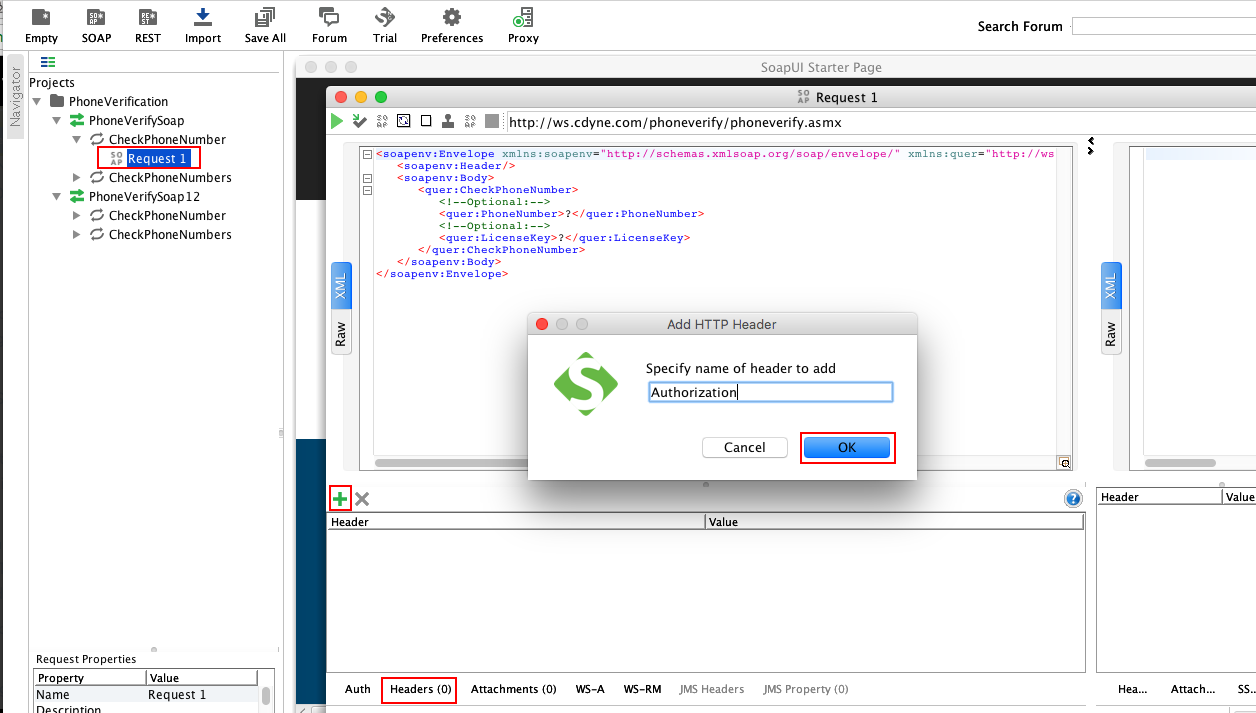

  9. The WSDL defines two operations. Let's work with CheckPhoneNumber. Double click on Request 1. Then, click the Header tab and add an authorization header to your request by clicking on the add icon.

    Set Authorization Header

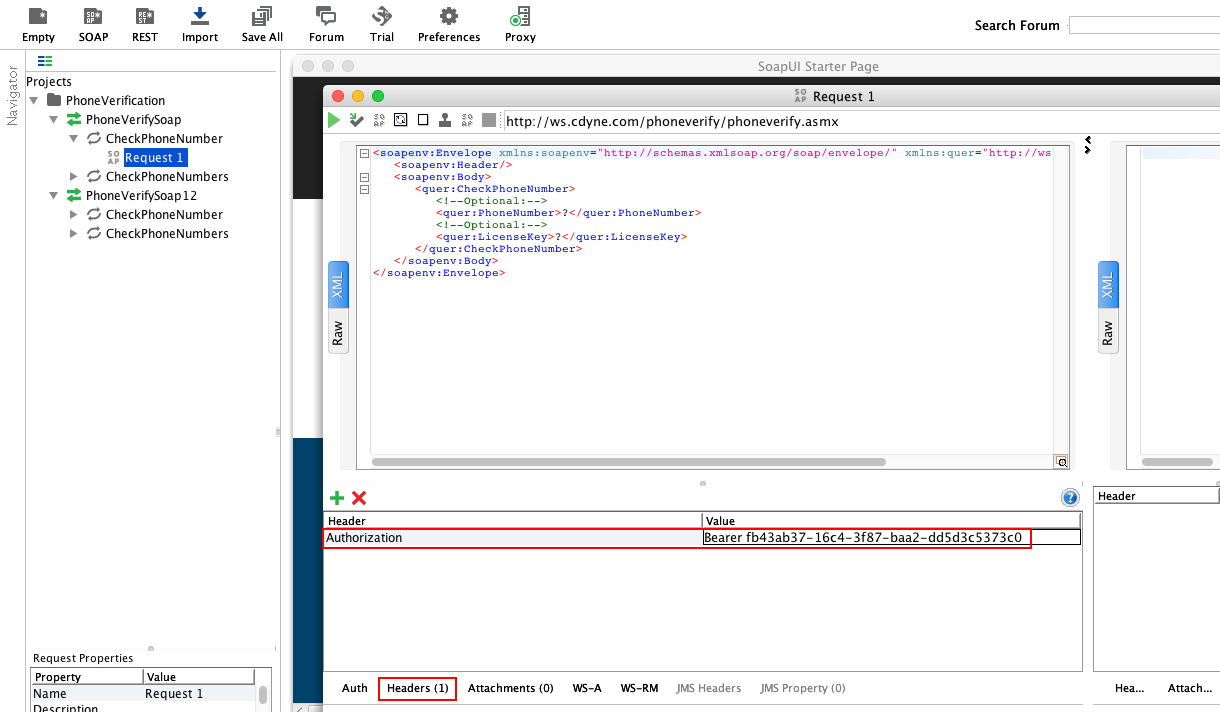

  10. Give the value of the Authorization header in the following format: Bearer <the-access-token-you-copied-in-step4>

    Set Bearer token

  11. Add the following dummy values and submit the request.

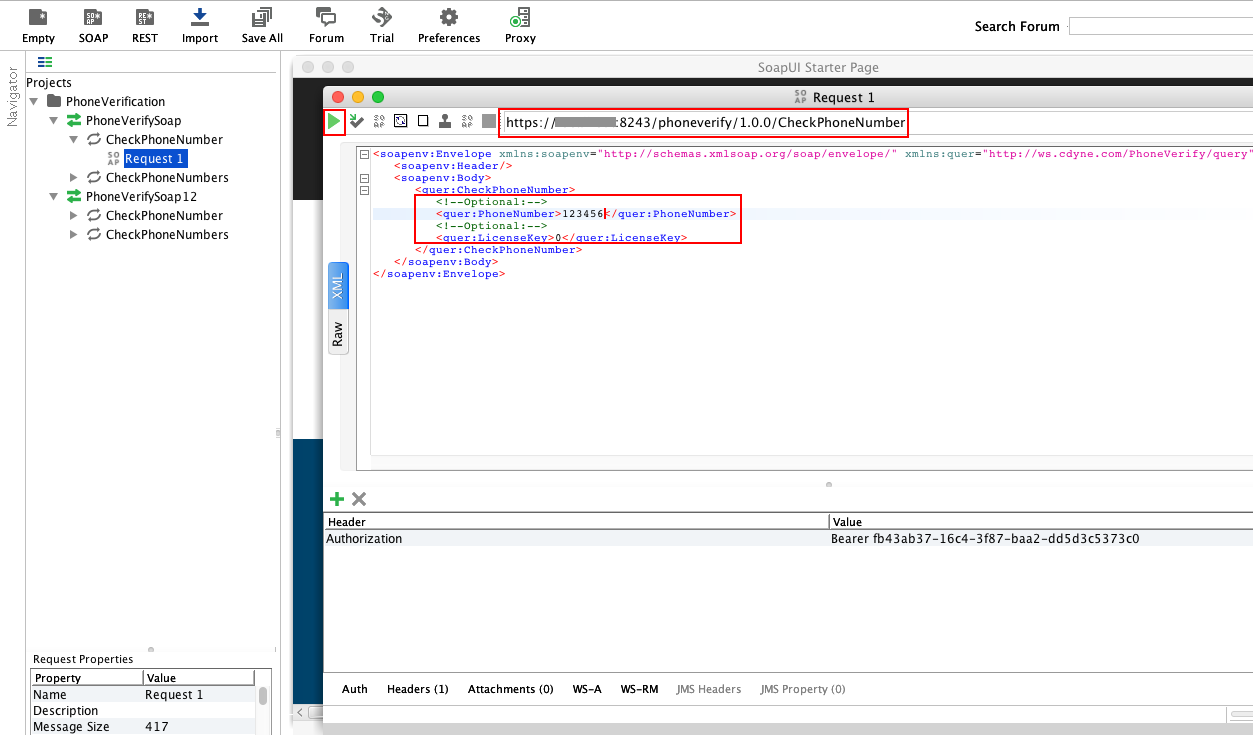

    1. Change the endpoint with the production URL of the API. You can copy the production URL from the API's Overview tab in the Developer Portal (i.e., It is https://localhost:8243/phoneverify/1.0.0 for the PhoneVerification API). Append the resources to the end of the URL, if any. The resource is /CheckPhoneNumber for the PhoneVerification API that we use here.

    2. In the SOAP request, change the parameters, which are PhoneNumber and LicenseKey.

      PhoneNumber Give a dummy phone number E.g., 123456
      LicenseKey Give 0 for testing purpose

      Set The Correct URL

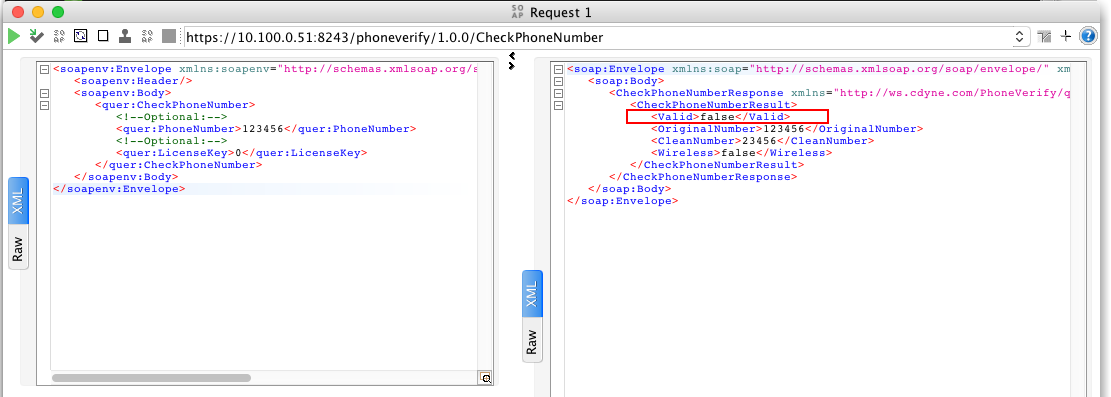

    Note the result on the right-hand side panel. As you gave a dummy phone number in this example, you get the result as invalid. Make Dummy SOAP Request

  12. Add the following values and submit the request:

    1. Maintain the same endpoint that you used in the previous step.

    2. In the SOAP request, change the parameters, which are PhoneNumber and LicenseKey.

      PhoneNumber Give a proper phone number E.g., 18006785432
      LicenseKey Give 0 for testing purpose

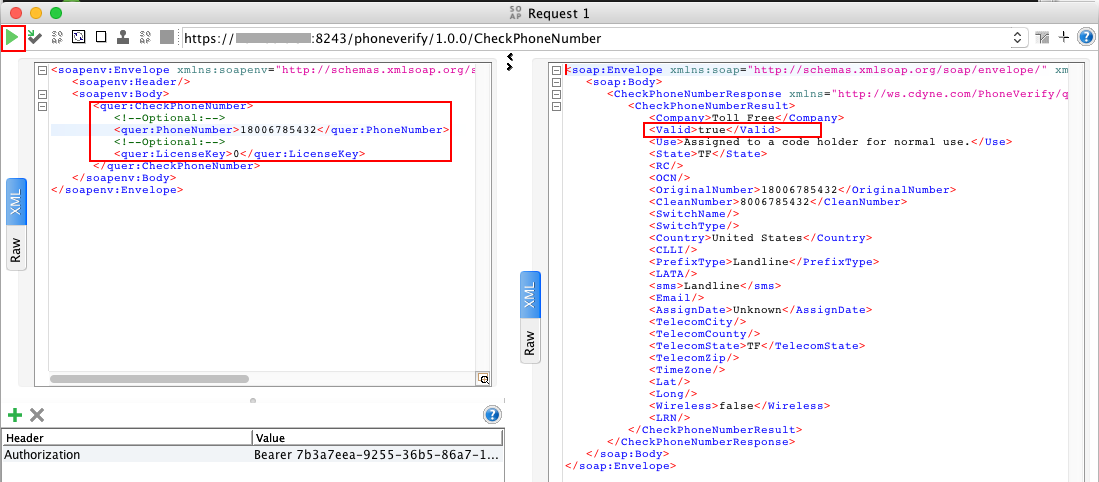

    Note the result on the right-hand side panel. As you gave a valid phone number in this example, you get the result as valid.

    Make Valid SOAP Request

You have now successfully invoked an API using a SOAP client.

Info

You can treat the Admin Services APIs as if they were back-end server APIs, and get all the benefits of API management for the admin services as well.

Do the following to expose WSO2 API Manager Admin Services with OAUTH2.0.

  1. Create a SOAP API for an admin service in the Publisher.
  2. Add backend admin credentials for basic auth in the Endpoints tab in publisher.
  3. Publish the app with a scope protecting access - use the admin role for your scope.

Admins can then subscribe to the app and invoke it using OAUTH2.0 security.
