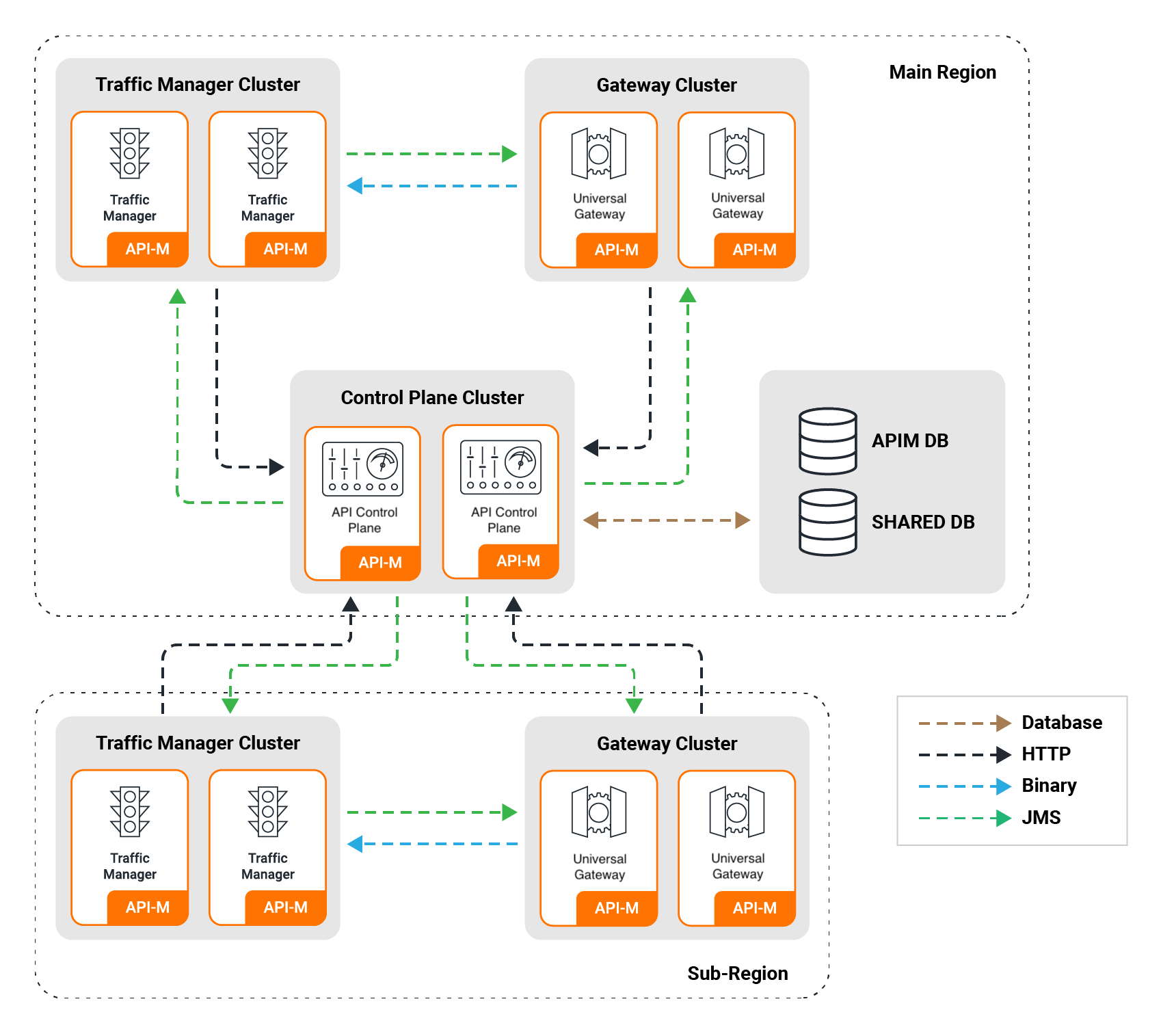

Configure Pattern 2: Centralized API Management with Regional Data Planes

Configuring Main Region

The main region will be similar to the setup in a particular region as Pattern 1. Hence, the configuration will be similar except for the DB replication and event hub communication.

Step 1 - Install WSO2 API-M

To install and set up the API-M servers:

1. Download the WSO2 API Manager.
2. Create copies of the API-M distribution for the individual profiles.

Step 2 - Install and configure the databases

You can create the required databases for the API-M deployment in a separate server and point to the databases from the respective nodes.

For information, see Installing and Configuring the Databases.

Step 3 - Configure your deployment with production hardening

Ensure that you have taken into account the respective security hardening factors (e.g., changing and encrypting the default passwords, configuring JVM security, etc.) before deploying WSO2 API-M.

For more information, see Production Deployment Guidelines.

Step 4 - Create and import SSL certificates

Create an SSL certificate for each of the WSO2 API-M nodes and import them to the keystore and the truststore. This ensures that hostname mismatch issues in the certificates will not occur.

Note

The same primary keystore should be used for all API Manager instances to decrypt the registry resources. For more information, see Configuring the Primary Keystore.

For more information, see Creating SSL Certificates.

Step 5 - Configure API-M Analytics

API Manager Analytics is delivered via the API Manager Analytics cloud solution. You need to configure the API Manager Gateway to publish analytics data to the cloud.

See the instructions on configuring the API Gateway with the cloud-based analytics solution.

Step 6 - Configure and start the profiles

Let's configure the API-M nodes in the deployment.

Configure the Gateway nodes

Configure the Gateway to communicate with the Control Plane and the Traffic Manager nodes.

Follow the instructions given below to configure the Gateway node so that it can communicate with the Control Plane node:

1. Open the <API-M_HOME>/repository/conf/deployment.toml file of the Gateway node.

2. Add the following configurations to the deployment.toml file.

3. Connecting the Gateway to the Control Plane node:

   Control Plane with High AvailabilitySingle Control Plane

   # Key Manager configuration
   [apim.key_manager]
   service_url = "https://[control-plane-LB-host]/services/"
   username = "$ref{super_admin.username}"
   password = "$ref{super_admin.password}"

   # Event Hub configurations
   [apim.event_hub]
   enable = true
   username = "$ref{super_admin.username}"
   password = "$ref{super_admin.password}"
   service_url = "https://[control-plane-LB-host]/services/"
   event_listening_endpoints = ["tcp://control-plane-1-host:5672", "tcp://control-plane-2-host:5672"]


   # Key Manager configuration
   [apim.key_manager]
   service_url = "https://[control-plane-host]:${mgt.transport.https.port}/services/"
   username = "$ref{super_admin.username}"
   password = "$ref{super_admin.password}"

   # Event Hub configurations
   [apim.event_hub]
   enable = true
   username = "$ref{super_admin.username}"
   password = "$ref{super_admin.password}"
   service_url = "https://[control-plane-host]:${mgt.transport.https.port}/services/"
   event_listening_endpoints = ["tcp://control-plane-host:5672"]


   Info

   Event hub configuration is used to retrieve Gateway artifacts. Using event_listening_endpoints, the Gateway will create a JMS connection with the event hub that is then used to subscribe for API/Application/Subscription and Key Manager operations-related events. The service_url points to the internal API that resides in the event hub that is used to pull artifacts and information from the database.

   • Connecting the Gateway to the Traffic Manager node:
   Traffic Manager with HASingle Traffic Manager

   [apim.throttling]
   throttle_decision_endpoints = ["tcp://traffic-manager-1-host:5672", "tcp://Traffic-Manager-2-host:5672"]

   [[apim.throttling.url_group]]
   traffic_manager_urls = ["tcp://traffic-manager-1-host:9611"]
   traffic_manager_auth_urls = ["ssl://traffic-manager-1-host:9711"]

   [[apim.throttling.url_group]]
   traffic_manager_urls = ["tcp://traffic-manager-2-host:9611"]
   traffic_manager_auth_urls = ["ssl://traffic-manager-2-host:9711"]


   [apim.throttling]
   throttle_decision_endpoints = ["tcp://traffic-manager-host:5672"]

   [[apim.throttling.url_group]]
   traffic_manager_urls = ["tcp://traffic-manager-host:9611"]
   traffic_manager_auth_urls = ["ssl://traffic-manager-host:9711"]


   Info

   Rate limiting configurations are used by the Gateway to connect with the Traffic Manager. The Gateway will publish Gateway invocation-related events to the TM using the apim.throttling.url_group. Traffic Managers will receive these events and rate limiting decisions will be published to the Gateway. To receive these rate limiting decisions, the Gateway has to create a JMS connection using throttle_decision_endpoints and listen.

   Enabling TLS/SSL for Gateway to Traffic Manager JMS communications

   If required, you can enable TLS/SSL for the JMS communications happening between the Gateway and Traffic Manager nodes.

   Add the following configuration to the Gateway node for this purpose.

   [apim.throttling.jms]
   topic_connection_factory = "amqp://<![CDATA[<username>]]>:<![CDATA[<password>]]>@clientid/carbon?brokerlist='tcp://tm.wso2.com:8672?ssl='true'%26ssl_cert_alias='<certificate_alias_in_truststore>'%26trust_store='<path_to_trust_store>'%26trust_store_password='<truststore_password>'%26key_store='<path_to_key_store>'%26key_store_password='<keystore_password>''"


   Also update your Traffic Manager node to include the following configuration to enable secure broker connections.

   [broker.transport.amqp.ssl_connection]
   enabled = true
   port = 8672
   ssl_enabled_protocols = "TLSv1,TLSv1.2"
   ciphers = "TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDH_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDH_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256"

   [broker.transport.amqp.ssl_connection.keystore]
   location = "repository/resources/security/wso2carbon.jks"
   password = "wso2carbon"
   cert_type = "SunX509"

   [broker.transport.amqp.ssl_connection.truststore]
   location = "repository/resources/security/client-truststore.jks"
   password = "wso2carbon"
   cert_type = "SunX509"


4. Add the following configurations to the deployment.toml file to configure the Gateway environment. Change the gateway_labels property based on your Gateway environment.

   [apim.sync_runtime_artifacts.gateway]
   gateway_labels =["Default"]


   Info

   Once an API is deployed/undeployed, the Control Plane will send a deploy/undeploy event to the Gateways. Using this configuration, the Gateway will filter out its relevant deploy/undeploy events and retrieve the artifacts.

5. Enable JSON Web Token (JWT) if required. For instructions, see Generating JSON Web Token.

6. Add the public certificate of the private key (that is used for signing the tokens) to the truststore under the "gateway_certificate_alias" alias. For instructions, see Create and import SSL certificates.

   Note

   This is not applicable if you use the default certificates, which are the certificates that are shipped with the product itself.

7. Follow the steps given below to configure High Availability (HA) for the API-M Gateway:

   1. Create a copy of the API-M Gateway node that you just configured. This is the second node of the API-M Gateway cluster.

   2. Configure a load balancer fronting the two Gateway nodes in your deployment. For instructions, see Configuring the Proxy Server and the Load Balancer.

      Note

      To keep custom runtime artifacts deployed in the Gateway, add the following configuration in the <API-M_HOME>/repository/conf/deployment.toml file of the Gateway nodes.

      [apim.sync_runtime_artifacts.gateway.skip_list]
      apis = ["api1.xml","api2.xml"]
      endpoints = ["endpoint1.xml"]
      sequences = ["post_with_nobody.xml"]
      local_entries = ["file.xml"]


   3. Open the deployment.toml files of each Gateway node and add the cluster hostname. For example, if the hostname is gw.am.wso2.com the configuration will be:

      [server]
      hostname = "gw.wso2.com"


   4. Specify the following incoming connection configurations in the deployment.toml files of both nodes.

      [transport.http]
      properties.port = 9763
      properties.proxyPort = 80

      [transport.https]
      properties.port = 9443
      properties.proxyPort = 443


   5. Open the server's /etc/hosts file and map the hostnames to IPs.

      Format:

      <GATEWAY-IP> gw.wso2.com


      Example:

      xxx.xxx.xxx.xx4 gw.wso2.com


Sample configuration for the Gateway

HA ClusterSingle Node

[server]
hostname = "gw.wso2.com"
node_ip = "127.0.0.1"
server_role = "gateway-worker"

[user_store]
type = "database_unique_id"

[super_admin]
username = "admin"
password = "admin"
create_admin_account = true

[database.shared_db]
type = "mysql"
hostname = "db.wso2.com"
name = "shared_db"
port = "3306"
username = "sharedadmin"
password = "sharedadmin"

[keystore.tls]
file_name =  "wso2carbon.jks"
type =  "JKS"
password =  "wso2carbon"
alias =  "wso2carbon"
key_password =  "wso2carbon"

[truststore]
file_name = "client-truststore.jks"
type = "JKS"
password = "wso2carbon"

[transport.http]
properties.port = 9763
properties.proxyPort = 80

[transport.https]
properties.port = 9443
properties.proxyPort = 443

# key manager implementation
[apim.key_manager]
service_url = "https://api.am.wso2.com/services/"

[apim.sync_runtime_artifacts.gateway]
gateway_labels =["Default"]

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://api.am.wso2.com/services/"
event_listening_endpoints = ["tcp://apim-cp-1:5672", "tcp://apim-cp-2:5672"]

# Traffic Manager configurations
[apim.throttling]
throttle_decision_endpoints = ["tcp://traffic-manager-1:5672", "tcp://traffic-manager-2:5672"]

[[apim.throttling.url_group]]
traffic_manager_urls=["tcp://traffic-manager-1:9611"]
traffic_manager_auth_urls=["ssl://traffic-manager-1:9711"]

[[apim.throttling.url_group]]
traffic_manager_urls=["tcp://traffic-manager-2:9611"]
traffic_manager_auth_urls=["ssl://traffic-manager-2:9711"]

[server]
hostname = "gw.wso2.com"
node_ip = "127.0.0.1"
server_role = "gateway-worker"
offset=0

[user_store]
type = "database_unique_id"

[super_admin]
username = "admin"
password = "admin"
create_admin_account = true

[database.shared_db]
type = "h2"
url = "jdbc:h2:./repository/database/WSO2SHARED_DB;DB_CLOSE_ON_EXIT=FALSE"
username = "wso2carbon"
password = "wso2carbon"

[keystore.tls]
file_name =  "wso2carbon.jks"
type =  "JKS"
password =  "wso2carbon"
alias =  "wso2carbon"
key_password =  "wso2carbon"

[truststore]
file_name = "client-truststore.jks"
type = "JKS"
password = "wso2carbon"

# Key Manager configuration
[apim.key_manager]
service_url = "https://cp.wso2.com:9443/services/"
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"

# Traffic Manager configurations
[apim.throttling]
throttle_decision_endpoints = ["tcp://tm.wso2.com:5672"]

[[apim.throttling.url_group]]
traffic_manager_urls=["tcp://tm.wso2.com:9611"]
traffic_manager_auth_urls=["ssl://tm.wso2.com:9711"]

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://cp.wso2.com:9443/services/"
event_listening_endpoints = ["tcp://cp.wso2.com:5672"]

[apim.sync_runtime_artifacts.gateway]
gateway_labels =["Default"]

Configure the Control Plane nodes

Follow the steps given below to configure the Control Plane nodes to communicate with the Gateway.

1. Open the <API-M_HOME>/repository/conf/deployment.toml file of the Control Plane node.

2. Add the following configurations to the deployment.toml file.

   Connecting the Control Plane to the Gateway node:

   Gateway with High AvailabilitySingle gateway

   [[apim.gateway.environment]]
   name = "Default"
   type = "hybrid"
   display_in_api_console = true
   description = "This is a hybrid gateway that handles both production and sandbox token traffic."
   show_as_token_endpoint_url = true
   service_url = "https://[api-gateway-LB-host]/services/"
   ws_endpoint = "ws://[api-gateway-LB-host-or-ip]:9099"
   wss_endpoint = "wss://[api-gateway-LB-host-or-ip]:8099"
   http_endpoint = "http://[api-gateway-LB-host]"
   https_endpoint = "https://[api-gateway-LB-host]"


   [[apim.gateway.environment]]
   name = "Default"
   type = "hybrid"
   display_in_api_console = true
   description = "This is a hybrid gateway that handles both production and sandbox token traffic."
   show_as_token_endpoint_url = true
   service_url = "https://[api-gateway-host]:9443/services/"
   ws_endpoint = "ws://[api-gateway-host]:9099"
   wss_endpoint = "wss://[api-gateway-host]:8099"
   http_endpoint = "http://[api-gateway-host]:${http.nio.port}"
   https_endpoint = "https://[api-gateway-host]:${https.nio.port}"


   Info

   This configuration is used for deploying APIs to the Gateway and for connecting the Developer Portal component to the Gateway if the Gateway is shared across tenants. If the Gateway is not used in multiple tenants, you can create a Gateway Environment using the Admin Portal.

   Note that in the above configurations, the service_url points to the 9443 port of the Gateway node, while http_endpoint and https_endpoint points to the http and https nio ports (8280 and 8243).

   Add Event Hub Configurations:

   Info

   Enabling TLS/SSL for event hub JMS communications

   If required, you can enable TLS/SSL for the JMS communications of event hub. Update your event hub configurations to include the following for this purpose.

   [apim.event_hub]
   enable = true
   jms.username = "<username>"
   jms.password = "<password>"
   jms.ssl = "true'&amp;ssl_cert_alias='<certificate_alias_in_truststore>'&amp;trust_store='<path_to_trust_store>'&amp;trust_store_password='<truststore_password>'&amp;key_store='<path_to_key_store>'&amp;key_store_password='<keystore_password>"
   ssl = "true'&amp;ssl_cert_alias='<certificate_alias_in_truststore>'&amp;trust_store='<path_to_trust_store>'&amp;trust_store_password='<truststore_password>'&amp;key_store='<path_to_key_store>'&amp;key_store_password='<keystore_password>"
   event_listening_endpoints = ["tcp://control-plane-host:8672"]


   To enable secure broker connections add the following configuration to the Control Plane node.

   [broker.transport.amqp.ssl_connection]
   enabled = true
   port = 8672
   ssl_enabled_protocols = "TLSv1,TLSv1.2"
   ciphers = "TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDH_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDH_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256"

   [broker.transport.amqp.ssl_connection.keystore]
   location = "repository/resources/security/wso2carbon.jks"
   password = "wso2carbon"
   cert_type = "SunX509"

   [broker.transport.amqp.ssl_connection.truststore]
   location = "repository/resources/security/client-truststore.jks"
   password = "wso2carbon"
   cert_type = "SunX509"


   Control Plane with High AvailabilitySingle Control Plane

   # Event Hub configurations
   [apim.event_hub]
   enable = true
   username= "$ref{super_admin.username}"
   password= "$ref{super_admin.password}"
   service_url = "https://localhost:${mgt.transport.https.port}/services/"
   event_listening_endpoints = ["tcp://localhost:5672"]
   event_duplicate_url = ["tcp://apim-cp-2:5672"]

   [[apim.event_hub.publish.url_group]]
   urls = ["tcp://control-plane-1-host:9611"]
   auth_urls = ["ssl://control-plane-1-host:9711"]

   [[apim.event_hub.publish.url_group]]
   urls = ["tcp://control-plane-2-host:9611"]
   auth_urls = ["ssl://control-plane-2-host:9711"]


   # Event Hub configurations
   [apim.event_hub]
   enable = true
   username= "$ref{super_admin.username}"
   password= "$ref{super_admin.password}"
   service_url = "https://localhost:${mgt.transport.https.port}/services/"
   event_listening_endpoints = ["tcp://localhost:5672"]

   [[apim.event_hub.publish.url_group]]
   urls = ["tcp://control-plane-host:9611"]
   auth_urls = ["ssl://control-plane-host:9711"]


   Info

   As there are two event hubs in a HA setup, each event hub has to publish events to both event streams. This will be done through the event streams created with apim.event_hub.publish.url_group. The token revocation events that are received to an event hub will be duplicated to the other event hub using event_duplicate_url.

   Add Event Listener Configurations:

   The below configurations are only added to the Control Plane if you are using the Resident Key Manager (resides in the Control Plane). If you are using WSO2 IS as Key Manager, you need to add these in the IS node. Once you add the below configurations, the Control Plane or Identity Server will listen to token revocation events and invoke the notification_endpoint regarding the revoked token.

   Control Plane with High AvailabilitySingle Control Plane

   # Event Listener configurations
   [[event_listener]]
   id = "token_revocation"
   type = "org.wso2.carbon.identity.core.handler.AbstractIdentityHandler"
   name = "org.wso2.is.notification.ApimOauthEventInterceptor"
   order = 1

   [event_listener.properties]
   notification_endpoint = "https://[control-plane-LB-host]/internal/data/v1/notify"
   username = "${admin.username}"
   password = "${admin.password}"
   'header.X-WSO2-KEY-MANAGER' = "default"


   # Event Listener configurations
   [[event_listener]]
   id = "token_revocation"
   type = "org.wso2.carbon.identity.core.handler.AbstractIdentityHandler"
   name = "org.wso2.is.notification.ApimOauthEventInterceptor"
   order = 1

   [event_listener.properties]
   notification_endpoint = "https://[control-plane-host]:${mgt.transport.https.port}/internal/data/v1/notify"
   username = "${admin.username}"
   password = "${admin.password}"
   'header.X-WSO2-KEY-MANAGER' = "default"


3. If required, encrypt the Auth Keys (access tokens, client secrets, and authorization codes), see Encrypting OAuth Keys.

4. Optionally, add the following configuration to enable distributed cache invalidation within the Control Plane nodes.

   [apim.cache_invalidation]
   enabled = true
   domain = "control-plane-domain"


5. Follow the steps given below to configure High Availability (HA) for the Control Plane:

   1. Create a copy of the API-M Control Plane node that you just configured. This is the second node of the API-M Control Plane cluster.

   2. Configure a load balancer fronting the two Control Plane nodes in your deployment. For instructions, see Configuring the Proxy Server and the Load Balancer.

Sample configuration for the Control Plane

HA ClusterSingle Node

[server]
hostname = "api.am.wso2.com"
node_ip = "127.0.0.1"
server_role="control-plane"
base_path = "${carbon.protocol}://${carbon.host}:${carbon.management.port}"

[user_store]
type = "database_unique_id"

[super_admin]
username = "admin"
password = "admin"
create_admin_account = true

[database.apim_db]
type = "mysql"
hostname = "db.wso2.com"
name = "apim_db"
port = "3306"
username = "apimadmin"
password = "apimadmin"

[database.shared_db]
type = "mysql"
hostname = "db.wso2.com"
name = "shared_db"
port = "3306"
username = "sharedadmin"
password = "sharedadmin"

[keystore.tls]
file_name =  "wso2carbon.jks"
type =  "JKS"
password =  "wso2carbon"
alias =  "wso2carbon"
key_password =  "wso2carbon"

[truststore]
file_name = "client-truststore.jks"
type = "JKS"
password = "wso2carbon"

[[apim.gateway.environment]]
name = "Default"
type = "hybrid"
display_in_api_console = true
description = "This is a hybrid gateway that handles both production and sandbox token traffic."
show_as_token_endpoint_url = true
service_url = "https://[api-gateway-LB-host]/services/"
ws_endpoint = "ws://[api-gateway-LB-host]:9099"
wss_endpoint = "wss://[api-gateway-LB-host]:8099"
http_endpoint = "http://[api-gateway-LB-host]"
https_endpoint = "https://[api-gateway-LB-host]"

[apim.devportal]
url = "https://api.am.wso2.com/devportal"

[transport.https.properties]
proxyPort = 443

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://api.am.wso2.com/services/"
event_listening_endpoints = ["tcp://localhost:5672"]
event_duplicate_url = ["tcp://apim-cp-2:5672"]

[[apim.event_hub.publish.url_group]]
urls = ["tcp://apim-cp-1:9611"]
auth_urls = ["ssl://apim-cp-1:9711"]

[[apim.event_hub.publish.url_group]]
urls = ["tcp://apim-cp-2:9611"]
auth_urls = ["ssl://apim-cp-2:9711"]

# key manager implementation
[apim.key_manager]
service_url = "https://api.am.wso2.com/services/"
username= "$ref{super_admin.username}"
password= "$ref{super_admin.password}"
type = "default"

[[event_listener]]
id = "token_revocation"
type = "org.wso2.carbon.identity.core.handler.AbstractIdentityHandler"
name = "org.wso2.is.notification.ApimOauthEventInterceptor"
order = 1

[event_listener.properties]
notification_endpoint = "https://api.am.wso2.com/internal/data/v1/notify"
username = "${admin.username}"
password = "${admin.password}"
'header.X-WSO2-KEY-MANAGER' = "default"

[server]
hostname = "cp.wso2.com"
node_ip = "127.0.0.1"
server_role = "control-plane"
offset=0

[user_store]
type = "database_unique_id"

[super_admin]
username = "admin"
password = "admin"
create_admin_account = true

[database.apim_db]
type = "mysql"
hostname = "db.wso2.com"
name = "apim_db"
port = "3306"
username = "apimadmin"
password = "apimadmin"

[database.shared_db]
type = "mysql"
hostname = "db.wso2.com"
name = "shared_db"
port = "3306"
username = "sharedadmin"
password = "sharedadmin"

[keystore.tls]
file_name =  "wso2carbon.jks"
type =  "JKS"
password =  "wso2carbon"
alias =  "wso2carbon"
key_password =  "wso2carbon"

# Gateway configuration
[[apim.gateway.environment]]
name = "Default"
type = "hybrid"
display_in_api_console = true
description = "This is a hybrid gateway that handles both production and sandbox token traffic."
show_as_token_endpoint_url = true
service_url = "https://gw.wso2.com:9443/services/"
username= "${admin.username}"
password= "${admin.password}"
ws_endpoint = "ws://gw.wso2.com:9099"
wss_endpoint = "wss://gw.wso2.com:8099"
http_endpoint = "http://gw.wso2.com:8280"
https_endpoint = "https://gw.wso2.com:8243"

# Event Listener configurations
[[event_listener]]
id = "token_revocation"
type = "org.wso2.carbon.identity.core.handler.AbstractIdentityHandler"
name = "org.wso2.is.notification.ApimOauthEventInterceptor"
order = 1

[event_listener.properties]
notification_endpoint = "https://cp.wso2.com:9443/internal/data/v1/notify"
username = "${admin.username}"
password = "${admin.password}"
'header.X-WSO2-KEY-MANAGER' = "default"

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://cp.wso2.com:9443/services/"
event_listening_endpoints = ["tcp://cp.wso2.com:5672"]

[[apim.event_hub.publish.url_group]]
urls = ["tcp://cp.wso2.com:9611"]
auth_urls = ["ssl://cp.wso2.com:9711"]

Configure the Traffic Manager Nodes

In a typical distributed deployment, all API-M components (excluding the API-M Gateway) run in the Control Plane. However, you have the option of separating the Traffic Manager from the Control Plane.

Configure the Traffic Manager to communicate with the Control Plane.

1. Open the <API-M_HOME>/repository/conf/deployment.toml file of the Traffic Manager node.

2. Add the following configurations to the deployment.toml file.

   Connecting the Traffic Manager to the Control Plane node:

   Control Plane with High AvailabilitySingle Control Plane

   # Event Hub configurations
   [apim.event_hub]
   enable = true
   username = "$ref{super_admin.username}"
   password = "$ref{super_admin.password}"
   service_url = "https://[control-plane-LB-host]/services/"
   event_listening_endpoints = ["tcp://control-plane-1-host:5672", "tcp://control-plane-2-host:5672"]


   # Event Hub configurations
   [apim.event_hub]
   enable = true
   username = "$ref{super_admin.username}"
   password = "$ref{super_admin.password}"
   service_url = "https://[control-plane-host]/services/"
   event_listening_endpoints = ["tcp://control-plane-host:5672"]


   Info

   With event_listening_endpoints, the Traffic Manager is subscribed to the JMS stream of both event hubs. Once a policy-related event is received, it will pull the execution plans from the service_url.

   If the Traffic Manager node is configured with High Availability (HA), configure rate limiting as follows.

   [apim.throttling]
   event_duplicate_url = ["tcp://traffic-manager-2-host:5672"]
   throttle_decision_endpoints = ["tcp://localhost:5672"]


   Info

   The event_duplicate_url will publish rate limiting decisions to the other Traffic Manager node to maintain consistency.

3. Follow the steps given below to configure High Availability (HA) for the Traffic Manager.

   1. Create a copy of the Traffic Manager node that you just configured. This is the second node of the Traffic Manager cluster.

   2. Configure a load balancer fronting the two Traffic Manager nodes in your deployment.

      Note

      In each startup of a Traffic Manager node, the rate-limiting policies are redeployed by retrieving the latest policy details from the database. This maintains the consistency between the Traffic Manager nodes. If you need to avoid redeploying certain rate-limiting policies, add the following configuration to the <API-M_HOME>/repository/conf/deployment.toml file in the Traffic Manager node.

      [apim.throttling]
      skip_redeploying_policies = ["throttle_policy_1","throttle_policy_2"]


Sample configuration for the Traffic Manager

HA ClusterSingle Node

[server]
hostname = "tm.am.wso2.com"
node_ip = "127.0.0.1"
server_role = "traffic-manager"

[transport.https.properties]
proxyPort = 443

[user_store]
type = "database_unique_id"

[super_admin]
username = "admin"
password = "admin"
create_admin_account = true

[database.shared_db]
type = "mysql"
hostname = "db.wso2.com"
name = "shared_db"
port = "3306"
username = "sharedadmin"
password = "sharedadmin"

[keystore.tls]
file_name =  "wso2carbon.jks"
type =  "JKS"
password =  "wso2carbon"
alias =  "wso2carbon"
key_password =  "wso2carbon"

[truststore]
file_name = "client-truststore.jks"
type = "JKS"
password = "wso2carbon"

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://api.am.wso2.com/services/"
event_listening_endpoints = ["tcp://apim-cp-1:5672", "tcp://apim-cp-2:5672"]

# Traffic Manager configurations
[apim.throttling]
event_duplicate_url = ["tcp://traffic-manager-2:5672"]
throttle_decision_endpoints = ["tcp://localhost:5672"]

[server]
hostname = "tm.wso2.com"
node_ip = "127.0.0.1"
server_role = "traffic-manager"
offset=0

[user_store]
type = "database_unique_id"

[super_admin]
username = "admin"
password = "admin"
create_admin_account = true

[database.shared_db]
type = "h2"
url = "jdbc:h2:./repository/database/WSO2SHARED_DB;DB_CLOSE_ON_EXIT=FALSE"
username = "wso2carbon"
password = "wso2carbon"

[keystore.tls]
file_name =  "wso2carbon.jks"
type =  "JKS"
password =  "wso2carbon"
alias =  "wso2carbon"
key_password =  "wso2carbon"

[truststore]
file_name = "client-truststore.jks"
type = "JKS"
password = "wso2carbon"

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://cp.wso2.com:9443/services/"
event_listening_endpoints = ["tcp://cp.wso2.com:5672"]

Step 7 - Start the API-M nodes

Once you have successfully configured all the API-M nodes in the deployment, you can start the servers.

• Starting the Gateway nodes

  Open a terminal, navigate to the <API-M-GATEWAY-HOME>/bin folder, and execute the following command:

  Linux/Mac OSWindows

  cd <API-M_HOME>/bin/
  sh api-manager.sh -Dprofile=gateway-worker


  cd <API-M_HOME>\bin\
  api-manager.bat --run -Dprofile=gateway-worker


• Start the Control Plane nodes

  Open a terminal, navigate to the <API-M-CONTROL-PLANE-HOME>/bin folder, and execute the following command:

  Linux/Mac OSWindows

  cd <API-M_HOME>/bin/
  sh api-manager.sh -Dprofile=control-plane


  cd <API-M_HOME>\bin\
  api-manager.bat --run -Dprofile=control-plane


• Start the Traffic Manager nodes

  Open a terminal, navigate to the <API-M-TRAFFIC-MANAGER-HOME>/bin folder, and execute the following command:

  Linux/Mac OSWindows

  cd <API-M_HOME>/bin/
  sh api-manager.sh -Dprofile=traffic-manager


  cd <API-M_HOME>\bin\
  api-manager.bat --run -Dprofile=traffic-manager


Since the control plane only resides in the main region, the gateway nodes and the traffic manager nodes in the sub regions should communicate with the main region via the control plane (event hub). Therefore, the following should be exposed to external usage.

Port	Component	Usage
9443	HTTPS	Load Balancer fronting the control plane nodes Used in the endpoint which points to the internal API that resides in the event hub that is used to pull artifacts and information from the database by the GW and TM in the sub region
5672	TCP	Each control plane instance in the HA setup Used to establish JMS connection between the sub region components and event hub which is then used by sub region components to receive events.

Configuring Sub-Region

Step 1: Configure the Gateway nodes

Follow the guideline here to configure the Gateway of the sub-region to connect with the Control Plane of the main region and the traffic manager of the sub-region. Take a note of the hostnames given below when configuring the Gateway node.

Connecting the Gateway to the Control Plane node

Configuration for a setup with Single Control PlaneConfiguration for a setup containing Control Planes with High Availability

# Key Manager configuration
[apim.key_manager]
service_url = "https://[main-region-cp-host]:${mgt.transport.https.port}/services/"
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://[main-region-cp-host]:${mgt.transport.https.port}/services/"
event_listening_endpoints = ["tcp://main-region-cp-host:5672"]

# Key Manager configuration
[apim.key_manager]
service_url = "https://[main-region-cp-LB-host]/services/"
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://main-region-cp-LB-host/services/"
event_listening_endpoints = ["tcp://main-region-cp-1-host:5672, tcp://main-region-cp-2-host:5672"]

Connecting the Gateway to the Traffic Manager node

Configuration for a setup with Single Traffic ManagerConfiguration for a setup containing Traffic Manager with High Availability

[apim.throttling]
throttle_decision_endpoints = ["tcp://sub-region-1-tm-host:5672"]

[[apim.throttling.url_group]]
traffic_manager_urls = ["tcp://sub-region-1-tm-host:9611"]
traffic_manager_auth_urls = ["ssl://sub-region-1-tm-host:9711"]

[apim.throttling]
throttle_decision_endpoints = ["tcp://sub-region-1-tm-1-host:5672", "tcp://sub-region-1-tm-2-host:5672"]

[[apim.throttling.url_group]]
traffic_manager_urls = ["tcp://sub-region-1-tm-1-host:9611"]
traffic_manager_auth_urls = ["ssl://sub-region-1-tm-1-host:9711"]

[[apim.throttling.url_group]]
traffic_manager_urls = ["tcp://sub-region-1-tm-2-host:9611"]
traffic_manager_auth_urls = ["ssl://sub-region-1-tm-2-host:9711"]

Step 2: Configure the Traffic Manager nodes

Follow the guideline here to configure the Traffic Manager of the sub-region to connect with the Control Plane of the main region. Take a note of the hostnames given below when configuring the Gateway node.

Configure the Traffic Manager to communicate with the Control Plane

Configuration for a setup with Single Control PlaneConfiguration for a setup containing Control Plane with High Availability

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://main-region-cp-host:${mgt.transport.https.port}/services/"
event_listening_endpoints = ["tcp://main-region-cp-host:5672"]

# Event Hub configurations
[apim.event_hub]
enable = true
username = "$ref{super_admin.username}"
password = "$ref{super_admin.password}"
service_url = "https://main-region-cp-LB-host/services/"
event_listening_endpoints = ["tcp://main-region-cp-1-host:5672", "tcp://main-region-cp-2-host:5672"]

Note

<main-region-cp-LB-host> should be replaced by the host of the Load Balancer (LB) fronting the control plane nodes of the main region in an HA setup whereas <main-region-cp-host> should be replaced by the host of the control plane of the main region since the gateway nodes and the traffic manager nodes of the sub region will communicate with the main region control plane directly in a single control plane setup.
