Moesif Analytics Integration Guide

This guide outlines the steps required to integrate Moesif Analytics with WSO2 API Manager. The integration enables you to collect and publish API analytics data to the Moesif dashboard, providing insights into API usage, traffic trends, and error tracking.

Note

Moesif Analytics integration is supported starting from WSO2 API Manager 4.5.0 Update Level 11 and onwards. Ensure that you are using a compatible update level of WSO2 API Manager 4.5.0. Refer to this guide to update your WSO2 API Manager to the required or latest update level.

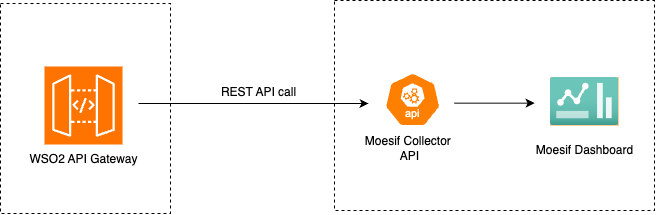

Moesif integration diagram

Analytics Data Flow

The Moesif integration captures both successful and failed API invocations in WSO2 API Manager and publishes them to your Moesif dashboard in near real-time. This allows for powerful analytics and monitoring capabilities.

This section will cover necessary steps to integrate Moesif analytics with WSO2 API Manager.

Step 1: Set Up Your Moesif Account

1.1 Create an Account and Log In

  1. Go to Moesif’s official website
  2. Sign up for a new account or log in to your existing account.

1.2 Create a New Application

  1. Once logged in, create a new App from the “Get Started” page.
  2. Follow the setup steps and click Next.
  3. You’ll be presented with an Application ID. Copy this ID as it will be used in the WSO2 configuration.

Note

For more detailed instructions and advanced configuration options, refer to the official Moesif Documentation.

Step 2 - Configure WSO2 API Manager

To enable Moesif analytics in WSO2 APIM, you need to update the deployment.toml configuration file.

Step 2.1 - Configuring the deployment.toml file.

The Choreo based analytics will be enabled by default. Specify the type as moesif to enable Moesif analytics as shown below. Open the <APIM-HOME>/repository/conf directory. Edit the apim.analyics configuration in the deployment.toml file with the following configuration.

[apim.analytics]
enable = true
type = "moesif"
properties."moesifKey" = "<your-moesif-application-id>"
properties."publisher.reporter.class" = "org.wso2.am.analytics.publisher.reporter.moesif.MoesifReporter"
logger.reporter.level = "INFO"

Important

Here replace the <your-moesif-application-id> with the actual Application ID copied from Step 1.2.

Note

Following are the details that are available on analytics log events:

apim_event_response - This event will be triggered for each successful API invocation. When a API associated backend returns an error response still it will be logged through this event.

apim_event_response:
{
    "apiCreator": "admin",
    "apiCreatorTenantDomain": "carbon.super",
    "apiId": "43d030dc-427f-4678-98e3-87b7d9882b5f",
    "apiMethod": "GET",
    "apiName": "SampleAPI",
    "apiResourceTemplate": "/*",
    "apiType": "HTTP",
    "apiVersion": "1.0.0",
    "applicationId": "2d6c54b0-7c7d-4b50-83dc-e6ae6f88962e",
    "applicationName": "DefaultApplication",
    "applicationOwner": "admin",
    "backendLatency": 13,
    "correlationId": "79ed20c3-55b1-434a-adf6-eea25e2d09c3",
    "destination": "http://192.168.114.51:8281/services/sampleAPIBackend",
    "eventType": "response",
    "gatewayType": "SYNAPSE",
    "keyType": "SANDBOX",
    "userName":"[email protected]"
    "proxyResponseCode": 202,
    "regionId": "default",
    "requestMediationLatency": 54,
    "requestTimestamp": "2022-01-20T03:34:36.451Z",
    "responseCacheHit": false,
    "responseLatency": 73,
    "responseMediationLatency": 6,
    "targetResponseCode": 202,
    "userAgent": "Chrome",
    "userIp": "172.16.2.70",
    "properties": {
        "commonName": "N/A",
        "responseContentType": "application/json; charset=UTF-8",
        "subType": "DEFAULT",
        "isEgress": false,
        "apiContext": "/api1/2.0.0",
        "responseSize": 133,
        "userName": "[email protected]"
    }
}

apim_event_faulty - This event will be triggered for each failed and throttled API invocation

apim_event_faulty:
{
    "apiCreator": "admin",
    "apiCreatorTenantDomain": "carbon.super",
    "apiId": "43d030dc-427f-4678-98e3-87b7d9882b5f",
    "apiName": "SampleAPI",
    "apiType": "HTTP",
    "apiVersion": "1.0.0",
    "apiMethod": "GET",
    "apiResourceTemplate": "/publish"
    "applicationId": "0b5ccc91-30e2-4ee5-9355-d1698075c028",
    "applicationName": "SampleApp3",
    "applicationOwner": "admin",
    "correlationId": "ccf2196f-9db8-429b-aaae-98f4c6edf6d7",
    "errorCode": 900803,
    "errorMessage": "APPLICATION_LEVEL_LIMIT_EXCEEDED",
    "errorType": "THROTTLED",
    "eventType": "fault",
    "gatewayType": "SYNAPSE",
    "keyType": "PRODUCTION",
    "proxyResponseCode": 429,
    "regionId": "default",
    "requestTimestamp": "2022-02-01T04:18:48.023Z",
    "responseCacheHit": false,
    "targetResponseCode": -1,
     "properties": {
        "commonName": "N/A",
        "responseContentType": "application/json; charset=UTF-8",
        "subType": "DEFAULT",
        "isEgress": false,
        "apiContext": "/api1/2.0.0",
        "responseSize": 133,
        "userName": "[email protected]"
    }
}
Parameter Type Description
"apiCreator" string The creator of the API.
"apiCreatorTenantDomain" string The tenant domain of the API creator.
"apiId" string Unique identifier of the API.
"apiMethod" string The HTTP method used by the API (e.g., GET, POST).
"apiName" string The name of the API.
"apiResourceTemplate" string The template of the API resource accessed.
"apiType" string The type of the API (e.g., HTTP, REST).
"apiVersion" string The version of the API.
"applicationId" string Unique identifier of the application that makes the API call.
"applicationName" string Name of the application that makes the API call.
"applicationOwner" string Owner of the application that makes the API call.
"backendLatency" long The time taken by the backend to process the request.
"correlationId" string Unique identifier for tracking API calls.
"destination" string The backend URL to which the API call was redirected.
"eventType" string The type of event.
"gatewayType" string The type of the API gateway.
"keyType" string Indicates whether the API key used was for SANDBOX or PRODUCTION.
"platform" string Operating system was used to access the API.
"properties" object Properties of the event.
"apiContext" string The context of the API call.
"userName" string The username of the individual who made the API call.
"proxyResponseCode" int The HTTP response code returned by the API gateway.
"regionId" string The region identifier for the API call.
"requestMediationLatency" int Time taken for request mediation.
"requestTimestamp" long Timestamp when the request was made.
"responseCacheHit" bool Indicates if the response was served from cache.
"responseLatency" long Total time taken to respond to the request.
"responseMediationLatency" long Time taken for response mediation.
"targetResponseCode" int The HTTP response code received from the backend target.
"userAgent" string The user agent of the client making the API call.
"userIp" string The IP address of the user making the API call.
"errorCode" int The error code generated in a fault.
"errorMessage" string The error message associated with the fault.
"errorType" string The type of error (e.g., THROTTLED).

Dashboards

Users can create a variety of dashboards in Moesif using the analytics data published from the WSO2 API Gateway. The sample dashboard below illustrates API usage segmented by different users.

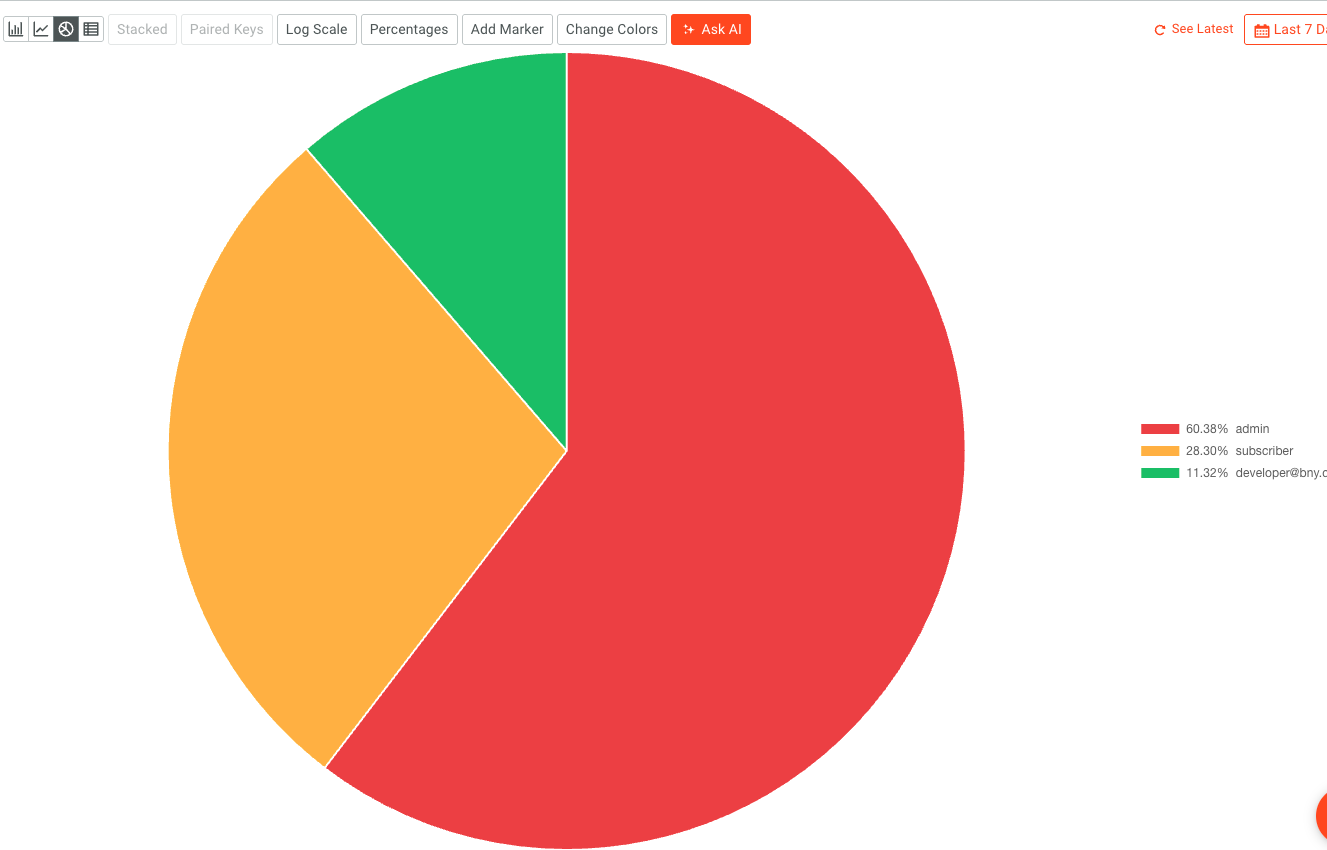

Sample Moesif dashboard diagram
