Aggregating Data Over Time¶
This application demonstrates how to simulate random events via Feed Simulation and calculate running aggregates such as
max, etc. The aggregation is executed on events within a time window. A sliding time window of 10 seconds is used in this sample. For more information on windows see Siddhi Query Guide - Window. The
group by clause helps to perform aggregation on events grouped by a certain attribute. In this sample, the trading information per trader is aggregated and summarized, for a window of 10 seconds.
Before you begin:
In the Streaming Integrator Tooling, save the sample Siddhi application.
Executing the Sample¶
To execute the sample open the saved Siddhi application in Streaming Integrator Tooling, and start it by clicking the Start button (shown below) or by clicking Run => Run.
If the Siddhi application starts successfully, the following message appears in the console.
AggregateOverTime.siddhi - Started Successfully!.
Testing the Sample¶
To test the sample Siddhi application, simulate random events for it via the Streaming Integrator Tooling as follows:
To open the Event Simulator, click the Event Simulator icon.
In the Event Simulator panel, click Feed Simulation -> Create.

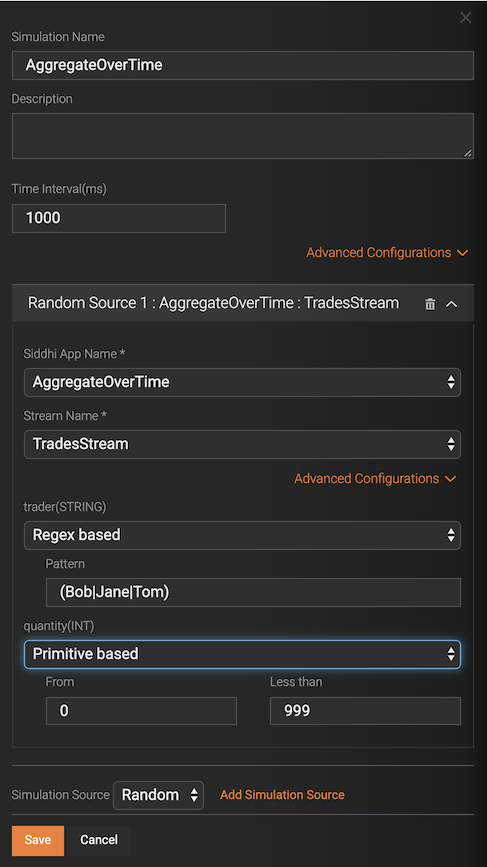

In the new panel that opens, enter information as follows:
In the Simulation Name field, enter
AggregateOverTimeas the name for the simulation.
Select Random as the simulation source and then click Add Simulation Source.
In the Siddhi App Name field, select AggregateOverTime.
In the Stream Name field, select Trade Stream.
In the trader(STRING) field, select Regex based. Then in the Pattern field that appears, enter
(Bob|Jane|Tom)as the pattern.
When you use the
Tomare selected as values for the
traderattribute of the
TradeStream. Using a few values for the
traderattribute is helpful when you verify the output because the output is grouped by the trader.
In the quantity(INT) field, select Primitive based.
Save the simulator configuration by clicking Save.
The newly created simulation is now listed under the Active Feed Simulations list as shown below.
Click the start button next to the AggregateOverTime simulation to start generating random events.
In the Run or Debug dialog box that appears, select Run and click Start Simulation.
Viewing the Results¶
Once you start the simulator, the output is logged in the console as shown in the sample below. The output reflects the aggregation for the events sent during the last 10 seconds.
Click here to view the sample Siddhi application.
@App:name("AggregateOverTime") @App:description('Simulate multiple random events and calculate aggregations over time with group by') define stream TradesStream(trader string, quantity int); @sink(type='log') define stream SummarizedTradingInformation(trader string, noOfTrades long, totalTradingQuantity long, minTradingQuantity int, maxTradingQuantity int, avgTradingQuantity double); --Find count, sum, min, max and avg of quantity per trader, during the last 10 seconds @info(name='query1') from TradesStream#window.time(10 sec) select trader, count() as noOfTrades, sum(quantity) as totalTradingQuantity, min(quantity) as minTradingQuantity, max(quantity) as maxTradingQuantity, avg(quantity) as avgTradingQuantity group by trader insert into SummarizedTradingInformation;
