Monitoring with OpenTracing

In a distributed API Manager architecture, tracing a message is important to debug and observe a message path. This is known as distributed tracing. OpenTracing allows you to enable distributed tracing for WSO2 API Manager.

OpenTracing aims to be an open, vendor-neutral standard for distributed systems instrumentation. It offers a way for developers to follow the thread — to trace requests from beginning to end across touchpoints and understand distributed systems at scale. OpenTracing will also help to trace the message and identify the latencies that took place in each process or method. Thereby, OpenTracing will help you to carry out a time-related analysis.

WSO2 API Manager supports the following types of ways to retrieve instrumented data.

  • Jaeger
  • Zipkin
  • Log

For more information, see OpenTracer Configurations.

Enabling Jaeger Tracing

  1. Copy the following configuration into the deployment.toml file.

    [apim.open_tracer]
    remote_tracer.enable = true
    remote_tracer.name = "jaeger"
    remote_tracer.properties.hostname = "<hostname-of-jaeger-endpoint>"
    remote_tracer.properties.port = "<port-of-jaeger-endpoint>"

    [apim.open_tracer]
    remote_tracer.enable = true
    remote_tracer.name = "jaeger"
    remote_tracer.properties.hostname = "localhost"
    remote_tracer.properties.port = "6831"

  2. Start the server.

    After you invoke the APIs you will see the tracing data in Jaeger as follow:

    Distributed tracing jaeger

Enabling Zipkin Tracing

  1. Copy the following configuration into the deployment.toml file.

    [apim.open_tracer]
    remote_tracer.enable = true
    remote_tracer.name = "zipkin"
    remote_tracer.properties.hostname = "<hostname-of-zikin-endpoint>"
    remote_tracer.properties.port = "<port-o-zipkin-endpoint>"

    [apim.open_tracer]
    remote_tracer.enable = true
    remote_tracer.name = "zipkin"
    remote_tracer.properties.hostname = "localhost"
    remote_tracer.properties.port = "9411"

  2. Start the server.

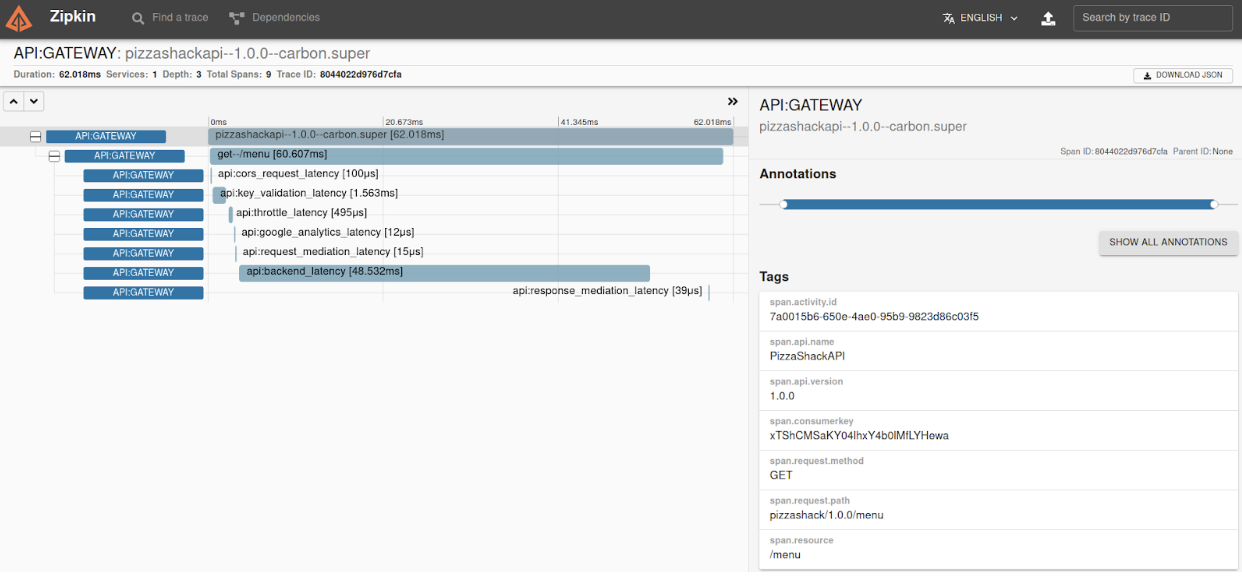

    After you invoke the APIs you will see the tracing data in Zipkin as follow:

Distributed tracing zipkin

Enabling Log Tracing

  1. Copy the following configuration into the deployment.toml file.

    [apim.open_tracer]
    remote_tracer.enable = false
    log_tracer.enable = true

  2. Start the server.

    After you invoke the APIs you will be able to see tracing data in the wso2-apimgt-open-tracing.log in the <API-M_HOME>/repository/logs folder.

    15:19:53,258 [-] [PassThroughMessageProcessor-1] TRACE {"Latency":29,"Operation":"OPTIONS--/menu","Tags":{}}
    15:19:53,260 [-] [PassThroughMessageProcessor-1] TRACE {"Latency":33,"Operation":"PizzaShackAPI--1.0.0--carbon.super","Tags":{"span.resource":"/menu","span.kind":"server","span.api.name":"PizzaShackAPI","span.request.method":"OPTIONS","span.request.path":"pizzashack/1.0.0/menu","span.api.version":"1.0.0","span.activity.id":"d83769e1-ff5f-461a-b918-4653e87dbfc7"}}
    15:19:53,270 [-] [PassThroughMessageProcessor-1] TRACE {"Latency":36,"Operation":"API:CORS_Request_Latency","Tags":{}}
    15:19:53,292 [-] [PassThroughMessageProcessor-2] TRACE {"Latency":0,"Operation":"API:CORS_Request_Latency","Tags":{}}
    15:19:53,887 [-] [PassThroughMessageProcessor-2] TRACE {"Latency":589,"Operation":"API:Key_Validation_Latency","Tags":{}}
    15:19:53,895 [-] [PassThroughMessageProcessor-2] TRACE {"Latency":8,"Operation":"API:Throttle_Latency","Tags":{}}
    15:19:53,898 [-] [PassThroughMessageProcessor-2] TRACE {"Latency":2,"Operation":"API:Google_Analytics_Latency","Tags":{}}
    15:19:53,900 [-] [PassThroughMessageProcessor-2] TRACE {"Latency":1,"Operation":"API:Request_Mediation_Latency","Tags":{}}
    15:19:54,671 [-] [PassThroughMessageProcessor-3] TRACE {"Latency":742,"Operation":"API:Backend_Latency","Tags":{"span.endpoint":"https://localhost:9443/am/sample/pizzashack/v1/api/"}}
    15:19:54,672 [-] [PassThroughMessageProcessor-3] TRACE {"Latency":0,"Operation":"API:Response_Mediation_Latency","Tags":{}}
    15:19:54,672 [-] [PassThroughMessageProcessor-3] TRACE {"Latency":1380,"Operation":"GET--/menu","Tags":{}}
    15:19:54,673 [-] [PassThroughMessageProcessor-3] TRACE {"Latency":1380,"Operation":"PizzaShackAPI--1.0.0--carbon.super","Tags":{"span.resource":"/menu","span.kind":"server","span.api.name":"PizzaShackAPI","span.consumerkey":"xTShCMSaKY04lhxY4b0lMfLYHewa","span.request.method":"GET","span.request.path":"pizzashack/1.0.0/menu","span.api.version":"1.0.0","span.activity.id":"b6ce4efa-042c-4367-93e9-fe3672b19e07"}}


Using the Custom Tracer Implementation

You can use any tracing server with a custom tracer implementation in WSO2 API Manager to publish your tracing data. As an example, let's use the Elastic APM (Application Performance Monitoring), which is a tracing server, and let's implement a custom tracer in WSO2 API Manager for it using the instructions given below:

  1. Implement the org.wso2.carbon.apimgt.tracing.OpenTracer interface and add your implementation. The getTracer method should contain the generation of the Tracer instance. Also, the getName method should return the tracer name to be configured in the deployment.toml file. In this specific scenario let's name this tracer elastic. This tracer needs to be loaded as an osgi service using a module activator. The sample project for the elastic APM tracer can be downloaded from here.

  2. Build the Maven project and add the JAR file to the dropins directory. (<API-M_HOME>/repository/components/dropins)

  3. Add the following configuration into the deployment.toml file.

    [apim.open_tracer]
    remote_tracer.enable = true
    remote_tracer.name = <custom_tracer_name>

    [apim.open_tracer]
    remote_tracer.enable = true
    remote_tracer.name = "elastic"

  4. Add the Elastic Opentracer JAR file in to the lib directory (<API-M_HOME>/repository/components/lib). You can download it from here.

    Tip

    Elastic opentracing also requires the addition of a Java Agent. This can be added by altering the startup script. Make sure to check the documentation for the tracer you are using so that such requirements can be satisfied.

  5. Start the server.

    After you invoke the APIs, the tracing data will be published to the configured tracing server, which in this example is the Elastic APM.
