Performance Test Results for Router with One CPU

These test results were obtained considering a Choreo Connect deployment with default values. Therefore the concurrency level used for the tests was two. Below table shows resource allocations for the Choreo Connect components.

Container Name Requesting Memory Amount (Mi) Requesting CPU Amount (m) Limiting Memory Amount (Mi) Limiting CPU Amount (m)
Adapter 500 500 500 500
Enforcer 1000 1000 1000 1000
Router 500 1000 500 1000
Netty Backend 4096 2000 6114 2000

Below graphs depict performance test results considering different test parameters.

Comparison of results

Throughput (requests/sec) vs. concurrent users

The following graph illustrates the throughput against the number of concurrent users.

Key observations:

  • More concurrent users mean more requests to the Choreo Connect. For a given payload size, Choreo Connect provides a most likely consistent throughput level. But for large payload sizes you will get a low throughput value when compared to the small payload sizes.

Average Response time (ms) vs. concurrent users

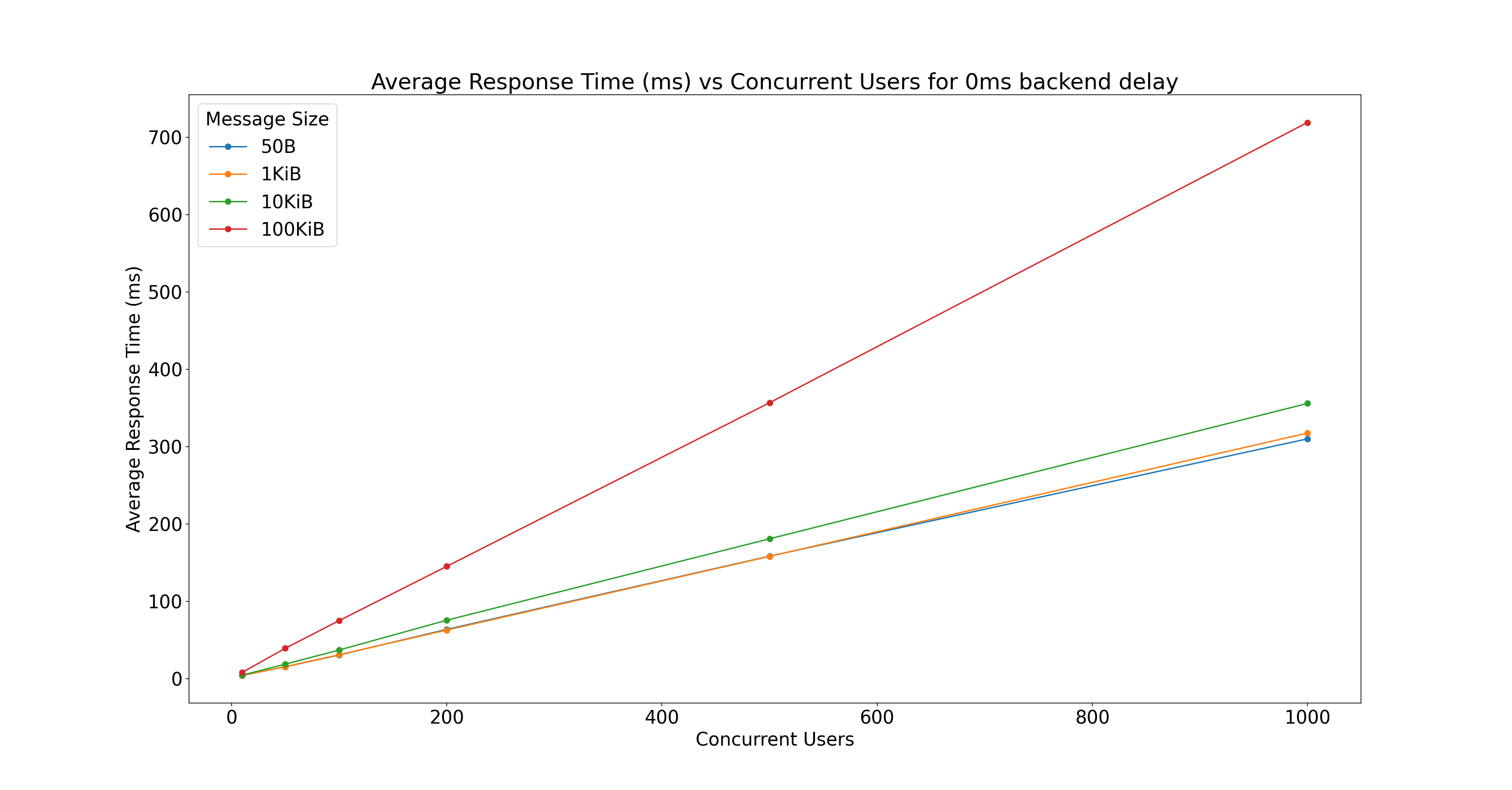

Backend delay is assigned as zero milliseconds when obtaining test results. The below graph shows how response time varied for different concurrent user counts. Also, the same graph shows the impact of the payload size considering the same two parameters.

Key observations:

  • When increasing concurrent users for given payload size, Choreo Connect consumes steady growth for the response time. But when considering the same user count for large payloads, response time is high compared to the small payloads.

Response time percentiles vs. concurrent users

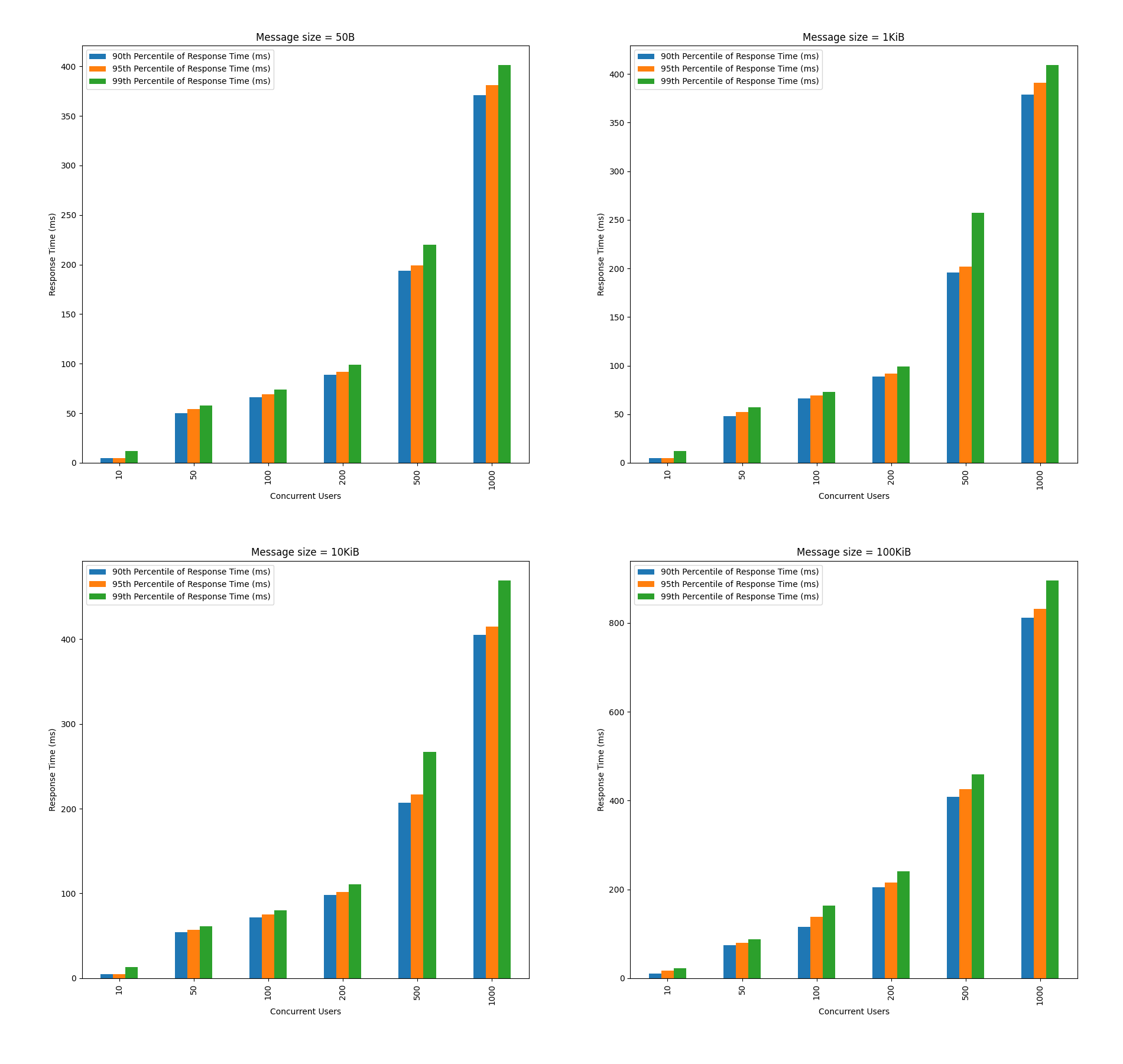

Below graphs show 90th, 95th, and 99th Response Time percentiles for 0ms backend delay. This is useful to measure the percentage of requests that exceeded the response time value for a given percentile. A percentile can also tell the percentage of requests completed below the particular response time value.

Data relevant to the test scenarios listed in the below table.

Concurrent Users Message Size (Bytes) Total requests Average Response Time (ms) Throughput (Requests/sec) Error % Error Count Little's law verification 90th Percentile of Response Time (ms) 95th Percentile of Response Time (ms) 99th Percentile of Response Time (ms)
10 50B 2140425 4.13 2374.69 0 0 9.81 5 5 12
50 50B 2899163 15.44 3215.34 0 0 49.64 50 54 58
100 50B 2938040 30.55 3260.78 0 0 99.62 66 69 74
200 50B 2822101 63.72 3131.36 0 0 199.53 89 92 99
500 50B 2840020 158.43 3150.38 0 0 499.11 194 199 220
1000 50B 2907110 310.24 3218.49 0 0 998.50 371 381 401
10 1KiB 2116976 4.17 2350 0 0 9.80 5 5 12
50 1KiB 2905703 15.40 3225.4 0 0 49.67 48 52 57
100 1KiB 2902109 30.93 3220.87 0 0 99.62 66 69 73
200 1KiB 2860810 62.85 3174.2 0 0 199.50 89 92 99
500 1KiB 2845235 158.16 3154.25 0 0 498.88 196 202 257
1000 1KiB 2838028 317.68 3140.8 0 0 997.77 379 391 409
10 10KiB 1938931 4.55 2149.61 0 0 9.78 5 5 13
50 10KiB 2385220 18.77 2647.29 0 0 49.69 54 57 61
100 10KiB 2425520 37.00 2692.01 0 0 99.60 72 75 80
200 10KiB 2381251 75.54 2639.64 0 0 199.40 98 102 111
500 10KiB 2489860 180.85 2759 0 0 498.97 207 217 267
1000 10KiB 2534124 355.98 2801.6 0 0 997.31 405 415 469
10 100KiB 1086595 8.11 1205.67 0 0 9.78 10 17 23
50 100KiB 1139416 39.28 1264.48 0 0 49.67 74 79 88
100 100KiB 1195828 75.05 1326.94 0 0 99.59 116 138 163
200 100KiB 1238292 145.20 1373.8 0 0 199.48 205 216 241
500 100KiB 1263209 356.89 1399.63 0 0 499.51 409 425 459
1000 100KiB 1251678 719.45 1380.16 0 0 992.96 811 831 895
