Create and Publish a WebSocket API¶
This tutorial will guide you to implement a websocket based chat application using the WSO2 API Manager. Follow the instructions in this tutorial to design and publish API with a WebSocket backend, and thereafter invoke it using the wscat WebSocket client.
For more information on WebSocket APIs, see Create a WebSocket API.
Step 1 - Design a WebSocket API¶
Sign in to the API Publisher.
adminas your username and password to sign in.
Click CREATE API and then click Design a New WebSocket API.
The CREATE button will only appear for a user who has the

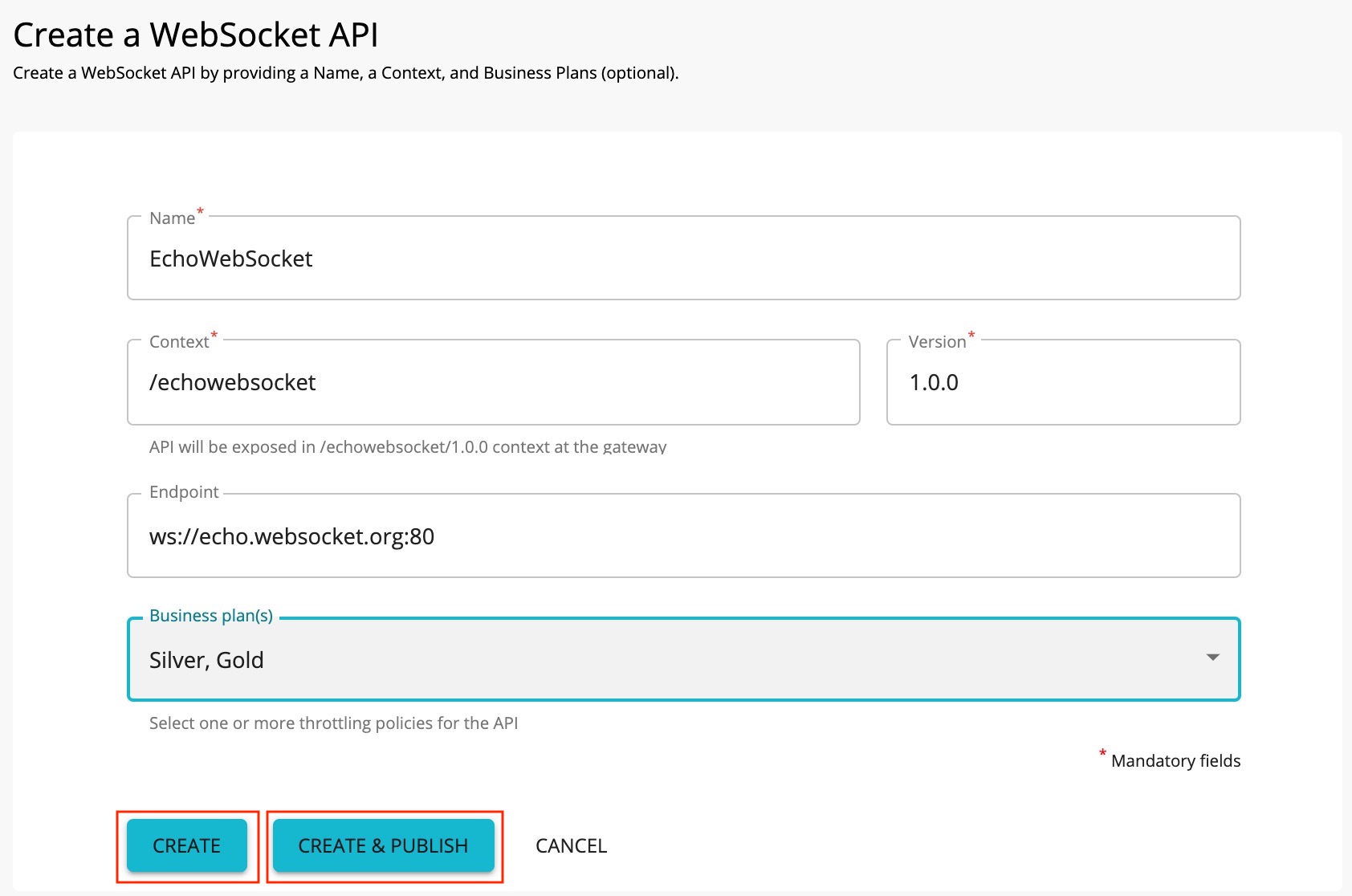

Enter the details of the new WebSocket API.
Field Sample value Name EchoWebSocket Context /echowebsocket Version 1.0.0 Endpoint
Use one of the following endpoints.
Business Plan Gold, Silver
The CREATE & PUBLISH option will appear only if the optional fields Endpoint and Business plan(s) are provided by a user who has
publisherpermission. You need to add a Name, Context, Version, and a valid Endpoint (For non-secured WebSockets enter the protocol as
ws://or for secured WebSockets enter the protocol as
wss://) to create the API.
Click CREATE or CREATE & PUBLISH.

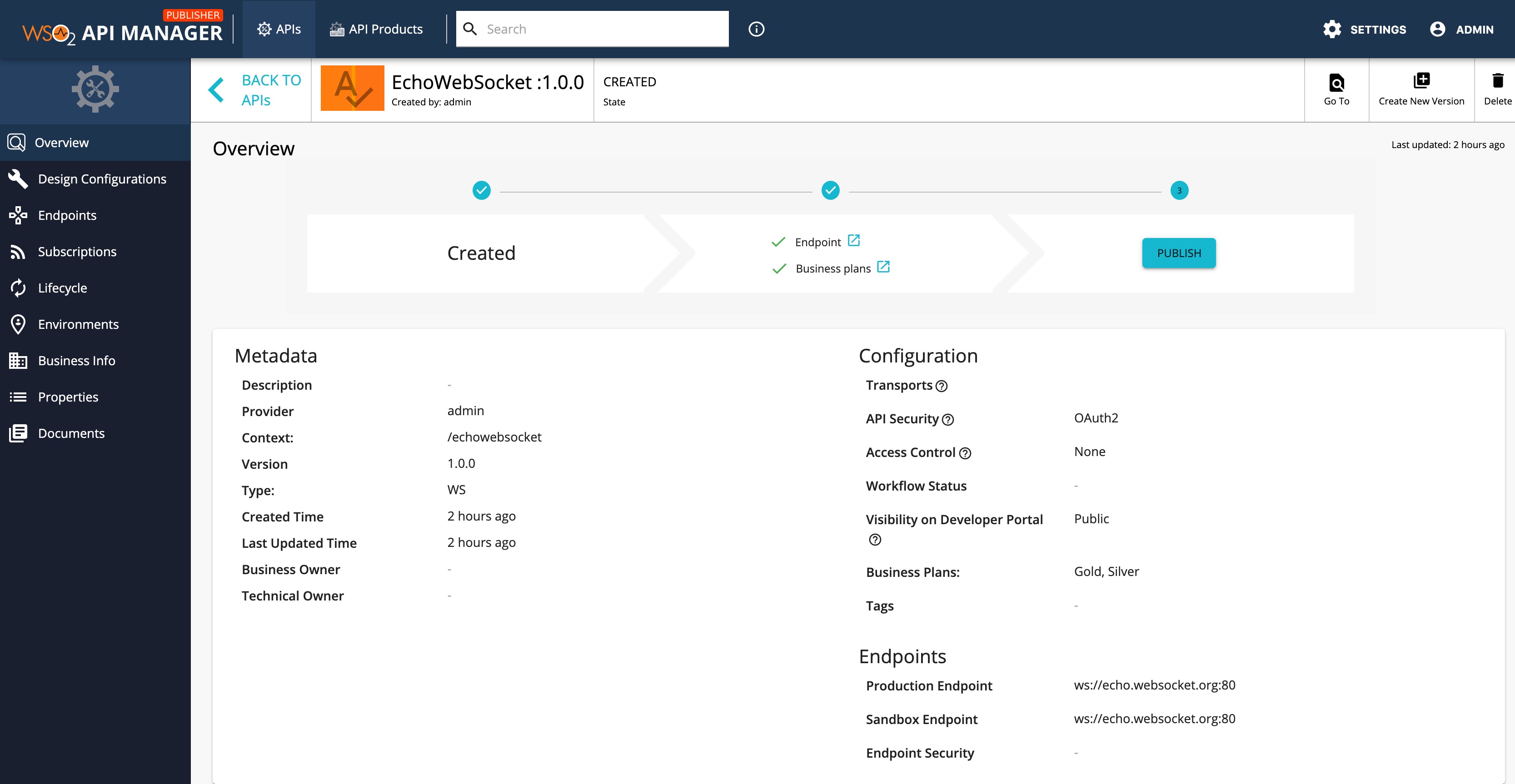

The overview page of the created WebSocket API appears.
Optionally, enter the endpoint configurations.

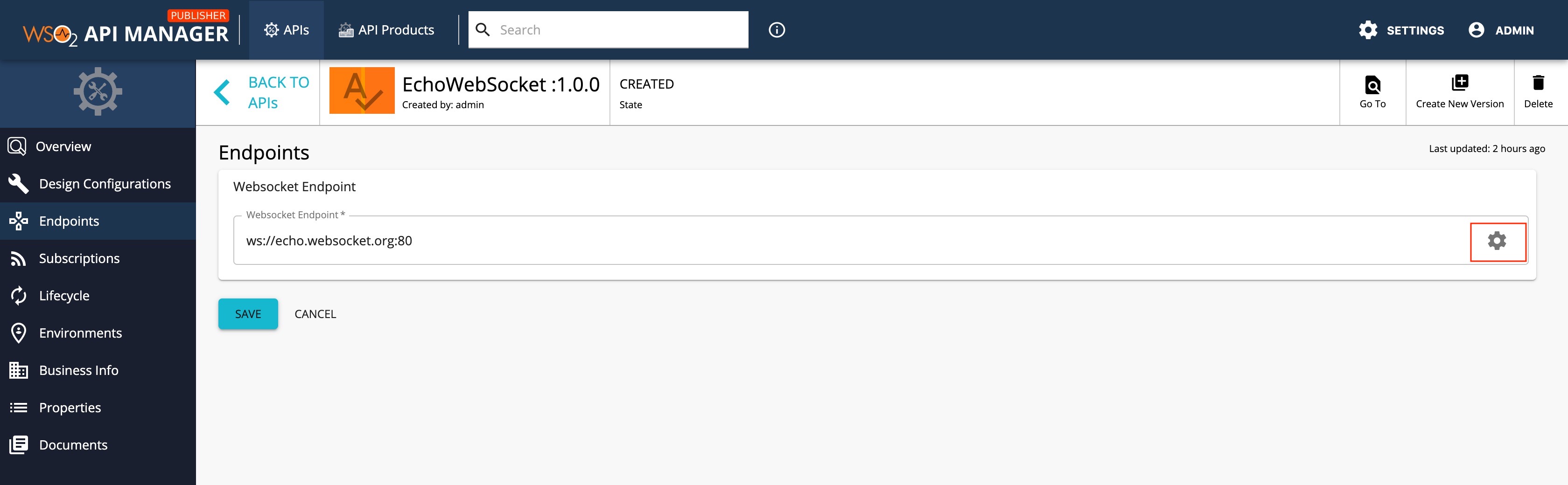

Click the Endpoint Advanced Configurations link as shown below and update the endpoint related configurations as required.
For more information, see the following sections on endpoint related configurations.
Now, you have created and configured the WebSocket API successfully.
Step 2 - Publish the WebSocket API¶
Click LIFECYCLE to navigate to the API lifecycle and click PUBLISH to publish the API to the API Developer Portal.
Step 3 - Invoke a WebSocket API¶
Sign in to the Develepor Portal.
Click on the WebSocket API.
The API overview appears.
Subscribe to the API.

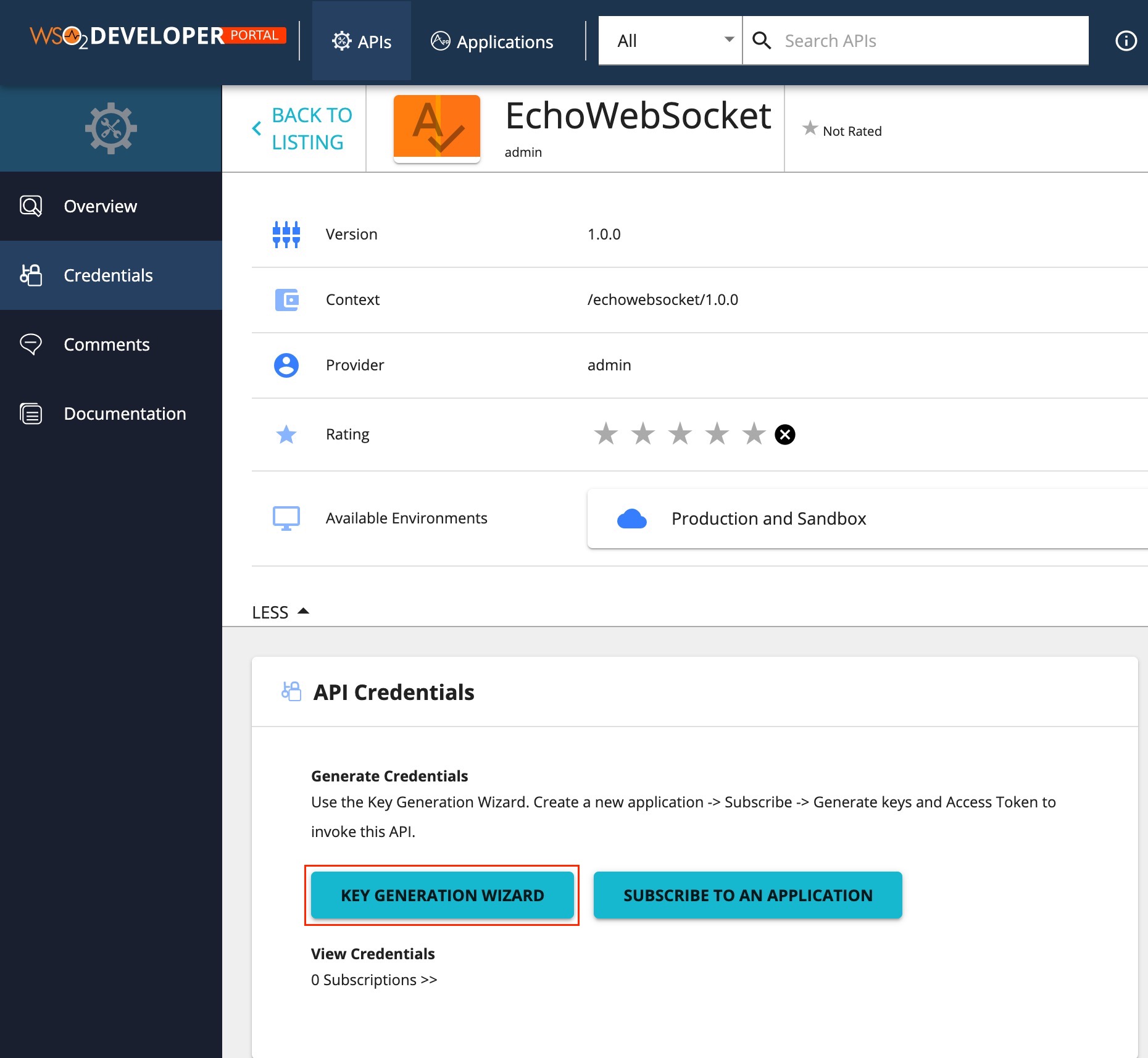

Click KEY GENERATION WIZARD.
This wizard takes you through the steps of creating a new application, subscribing, generating keys, and generating an access token to invoke the API.
You can use any application (e.g., JWT or OAuth) to subscribe to the API.

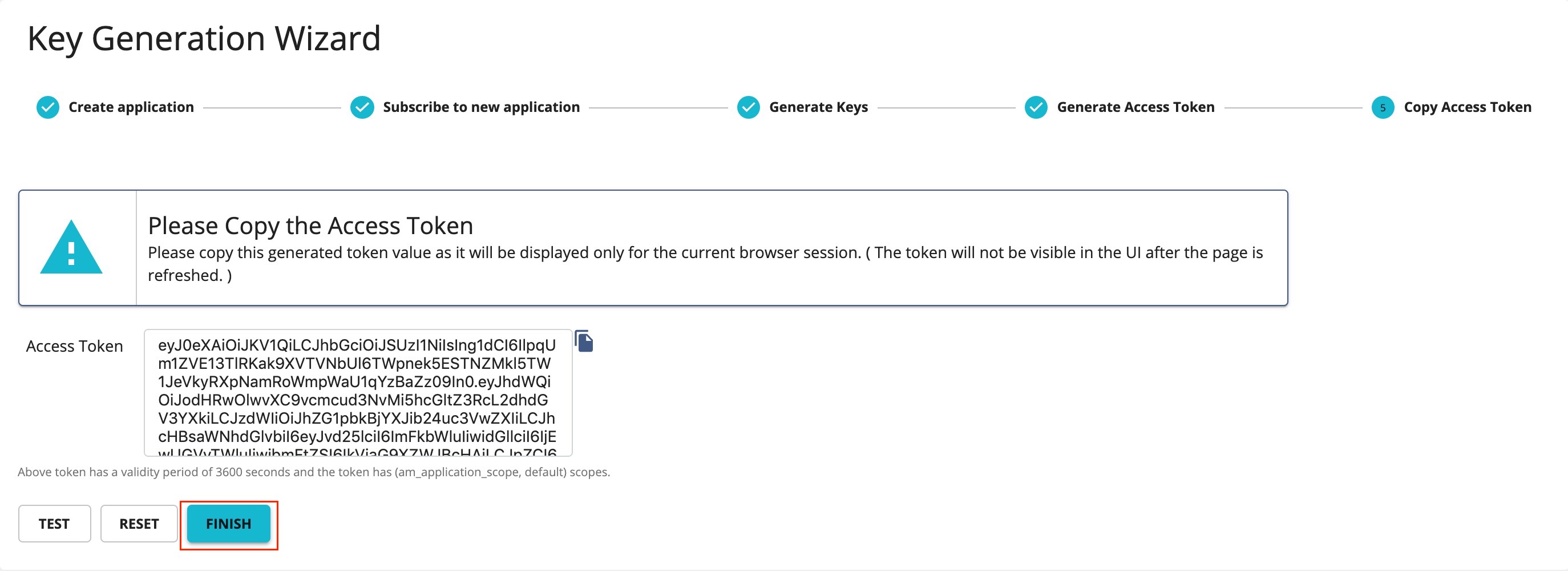

Copy the authorization token that appears.
Try out the operations.
Install wscat client.
npm install -g wscat
Invoke the API by using an authorization header by executing the following command.
wscat -c ws://localhost:9099/echowebsocket/1.0 -H "Authorization: Bearer [accesstoken]"
wscat -n -c wss://localhost:8099/echowebsocket/1.0 -H "Authorization: Bearer [accesstoken]"
There are clients (especially browsers) that do not allow to add headers to the WebSocket handshake. In such cases, you can send the access token for the WebSocket API invocation as a query parameter named
access_tokenby using the command below:
wscat -c "ws://localhost:9099/echowebsocket/1.0?access_token=[accesstoken]"
wscat -n -c "wss://localhost:8099/echowebsocket/1.0?access_token=[accesstoken]"
BasicAuth and API Key do not work for the security of WebSocket APIs.
You have successfully created and published your first WebSocket API, subscribed to it, obtained an access token for testing, and tested your API with the access token.Top
