Integrating with Google Analytics¶
You can configure the API Manager to track runtime statistics of API invocations through Google Analytics. Google Analytics is a service that allows you to track visits to a website and generate detailed statistics on them.
This guide explains how to setup API Manager in order to feed runtime statistics to Google analytics for summarization and display.
- Setup a Google Analytics account if not subscribed already and receive a Tracking ID, which is of the format "UA-XXXXXXXX-X". A Tracking ID is issued at the time an account is created with Google Analytics.
Log in to the API Manager management console (
https://localhost:9443/carbon) using admin/admin credentials and go to Main -> Resources -> Browse menu.
Navigate to /_system/governance/apimgt/statistics/ga-config.xml file.
Change the <Enabled> element to
true, set your tracking ID in <TrackingID> element and Save.
If you want to enable tracking for tenants, log in to the management console with a tenant's credentials, click Source View, and then add the following parameter to the
org.wso2.carbon.mediation.registry.WSO2Registryregistry definition near the top (repeat this step for each tenant):
The following screen shot illustrates this change:
API Manager is now integrated with Google Analytics. A user who has subscribed to a published API through the Developer Portal should see an icon as

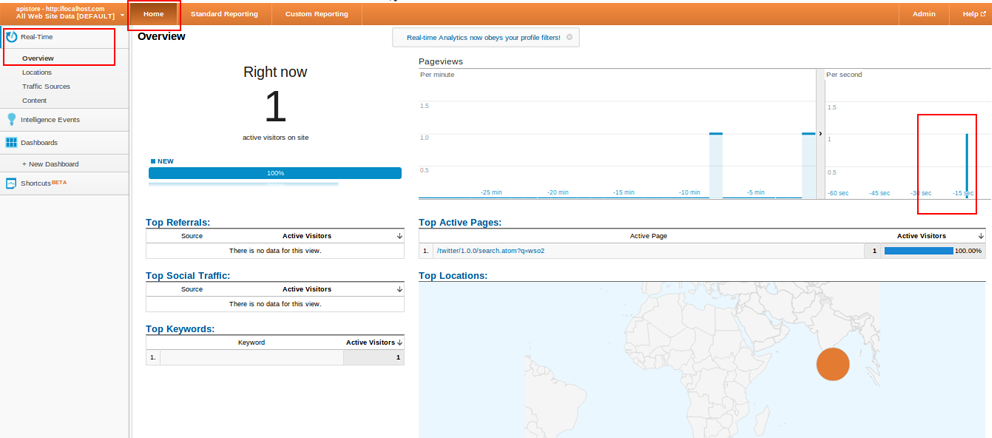

Real-Timeafter logging into their Google Analytics account. Click on this icon and select Overview.
Invoke the above API using the embedded WSO2 REST Client(or any third-part rest client such as cURL).
This is one invocation of the API. Accordingly, Google Analytics graphs and statistics will be displayed at runtime. This example displays the PageViews per second graph and 1 user as active.
Google analytics reporting statistics take more than 24 hours from the time of invocation to populate. Shown below is a sample Dashboard with populated statistics.
There are widgets with statistics related to Audience, Traffic, Page Content, Visit Duration etc. You can add any widget of your preference to dashboard.
