Custom Throttling¶

Custom throttling allows system administrators to define dynamic rules for specific use cases, which are applied globally across all tenants. When a custom throttling policy is created, it is possible to define any policy you like. The Traffic Manager acts as the global throttling engine and is based on the same technology as WSO2 Complex Event Processor (CEP), which uses the Siddhi query language . Users are therefore able to create their own custom throttling policies by writing custom Siddhi queries. The specific combination of attributes being checked in the policy need to be defined as the key (also called the key template). The key template usually includes a predefined format and a set of predefined parameters. It can contain a combination of allowed keys separated by a colon (:), where each key must start with the prefix $. The following keys can be used to create custom throttling policies:

resourceKey, userId, apiContext, apiVersion, appTenant, apiTenant, appId, clientIp

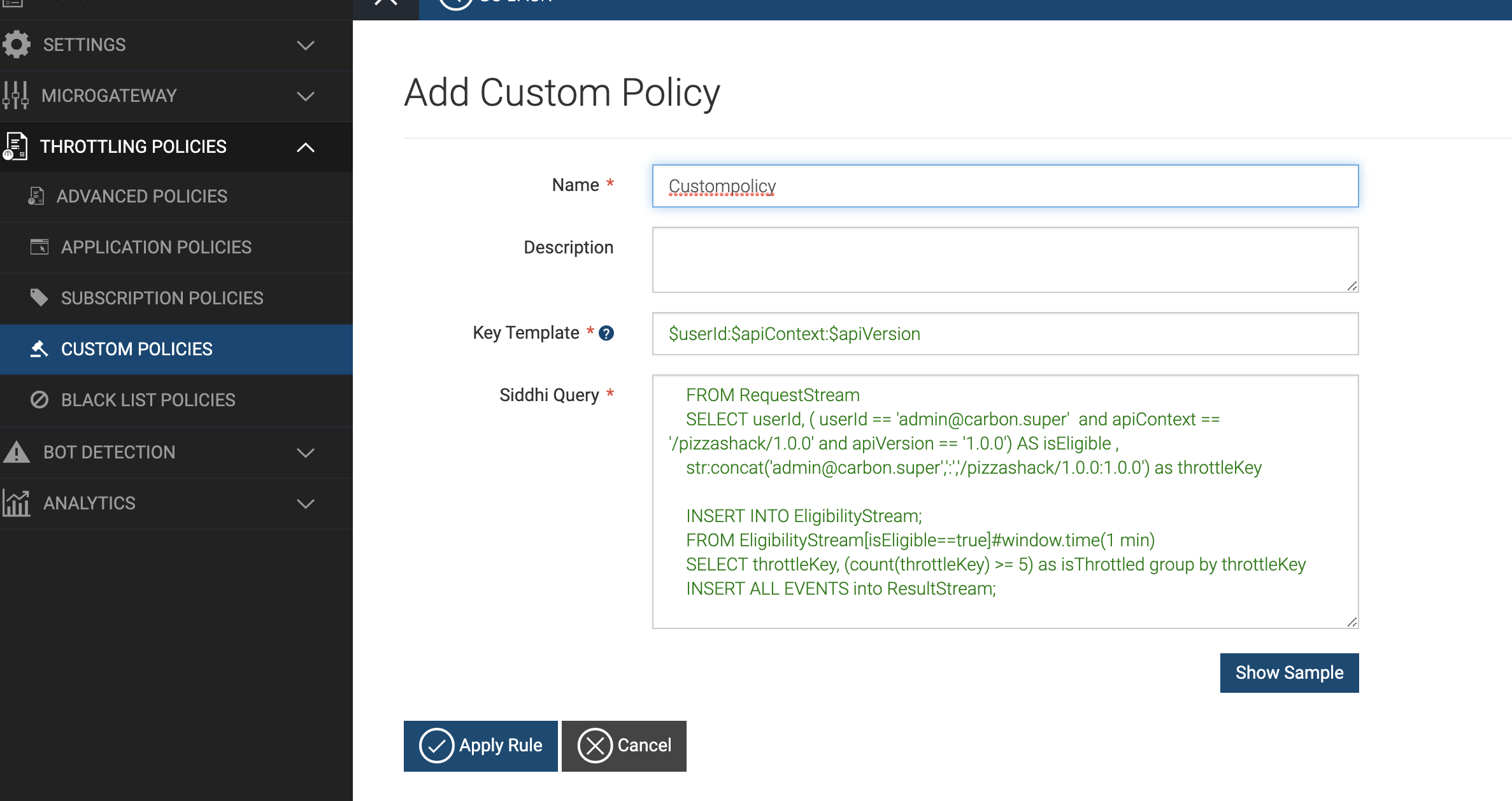

For example, the following sample custom policy allows the admin user to send 5 requests per minute to the Pizza Shack API. Login to the admin portal at (https://<ip_address>:<port>/admin) and navigate to THROTTLING POLICIES tab and click CUSTOM POLICES tab to define a custom policy

Key Template

    $userId:$apiContext:$apiVersion

Siddhi query

    FROM RequestStream
    SELECT userId, ( userId == '[email protected]'  and apiContext == '/pizzashack/1.0.0' and apiVersion == '1.0.0') AS isEligible ,
    str:concat('[email protected]',':','/pizzashack/1.0.0:1.0.0') as throttleKey

    INSERT INTO EligibilityStream;
    FROM EligibilityStream[isEligible==true]#window.time(1 min)
    SELECT throttleKey, (count(throttleKey) >= 5) as isThrottled group by throttleKey
    INSERT ALL EVENTS into ResultStream;

As shown in the above Siddhi query, the throttle key must match the key template format. If there is a mismatch between the key template format and the throttle key, requests will not be throttled.
