Viewing API Statistics¶
API statistics are provided for both the API Publisher and the Developer Portal.
From API-M Analytics 3.0.0 release onwards, Publisher and Developer Portal statistics are moved out from the Publisher and Developer portal apps. And those can be viewed using the dashboard runtime of the API-M Analytics server.
For instructions on how to set up Analytics, see Configuring APIM Analytics . Once Analytics is set up, follow the instructions below to view statistics relevant to API Publisher and Developer Portal.
First, invoke a few APIs to generate traffic and see the statistics.
Note
The following widgets on the API Manager statistical dashboards, display real runtime statistics even when Analytics is not set up (as described in Configuring APIM Analytics ).
Publisher Dashboard
- Overview Page
- Total API Count
- Total App Count
- Total Subscriptions
- Total Signups
- Top Api Creators
- Top App Creators
- Top Subscriptions per API Provider
- API and Application Statistics Page
- APIs Created Over Time
- Apps Created Over Time
- Developer Statistics Page
- Subscriptions Over Time
- Developer Signups Over Time
- Faults Page
- Top Faulty APIs
- Top Throttled APIs
Developer Portal Dashboard
- Registered Application Users
Warning
Please note that our data summarization logic summarizes the data on a per day basis.
The sections below explain how to access the statistical dashboards:
- Log in to the Analytics Dashboard by accessing
<Protocol>://<Host>:<Port>/analytics-dashboard(ex: https://localhost:9643/analytics-dashboard). -
After login in, you will see the APIM Publisher and the APIM Developer Portal dashboards listed.
-
Click on the card of any desired dashboard to view that particular dashboard.
- Admin Portal Statistics can be viewed from the admin app.
Please refer below sub sections for more details about each dashboard.
API Publisher statistics¶
Info
Unlike the previous releases of API-M Analytics dashboards, Publisher statistics dashboard can be viewed by any user having Analytics role, Creator role or Publisher role. And these permissions can be changed as per your preferences by going to Settings options of the dashboard. More information can be found at Managing Analytics Dashboard Permissions page.
API Publisher dashboard has 8 main pages namely Overview, API and Application Statistics, Developer Statistics, Usage Summary, Devices, API Proxy Performance, Faults, and Geo Map.
Overview¶
Total API Count¶
This widget displays the total number of APIs created and the number of APIs created within the last week by the publishers of logged in user's tenant.

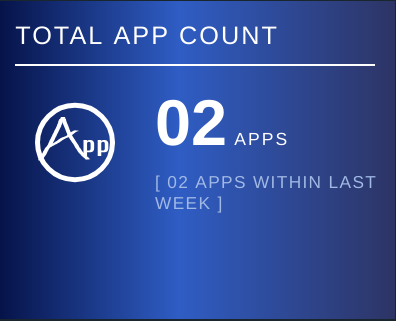

Total App Count¶
This widget displays the total number of applications created and the number of applications created within the last week by the subscribers of the logged in user's tenant.

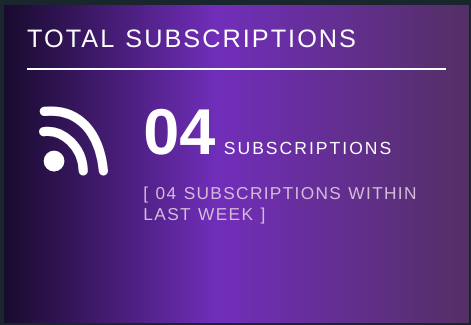

Total Subscriptions¶
This widget displays the total API subscriptions by the subscribers of the logged in user's tenant and its last weeks statistics of the same factor.

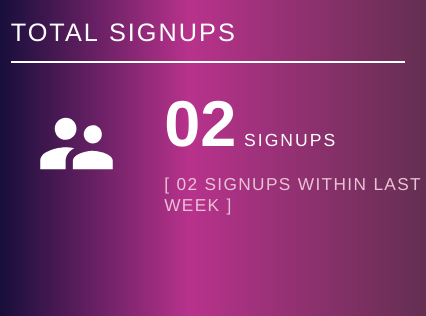

Total Signups¶
This widget displays count of the unique subscribers logged in to the developer portal app and its last week statistics of the same factor.
Overal API Stats¶
This widget has two sections.
- API Availability - Displays a percentage of API availability
- Top Rated APIs - Displays the total number of stars received (ratings) by each API
for that particular tenant.
Note
In order to view statistics of API Availability widget, it is required to enable alerts as described in Configuring Alerts.
The availability of APIs statistics is directly related to the Availability of APIs (health monitoring) alert type.
Along with the total number of stars received for each API, Top Rated APIs section of the widget displays the API creator of each API as well. By clicking on the filter arrow
,you can search by API name and Ratings.

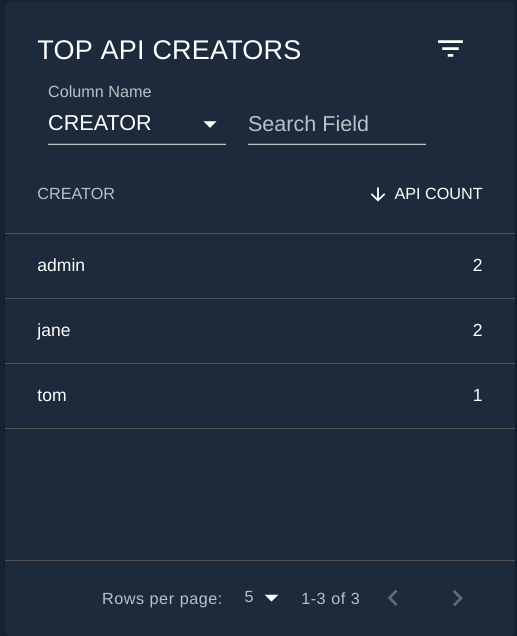

Top API Creators¶
As the name depicts this widget displays the top API creators and the percerntage of APIs that each of them have created. You can choose the limit of API creators that you want to see by giving the number under the limit field.
You also get a list view of API creators along with the number of APIs created by each API creator. This list can be searched either via API name or API count.

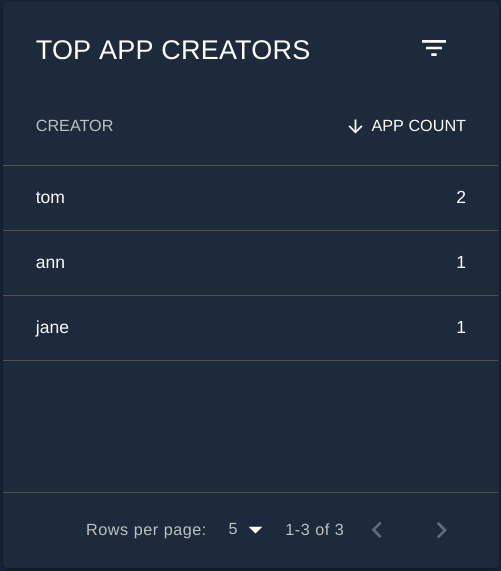

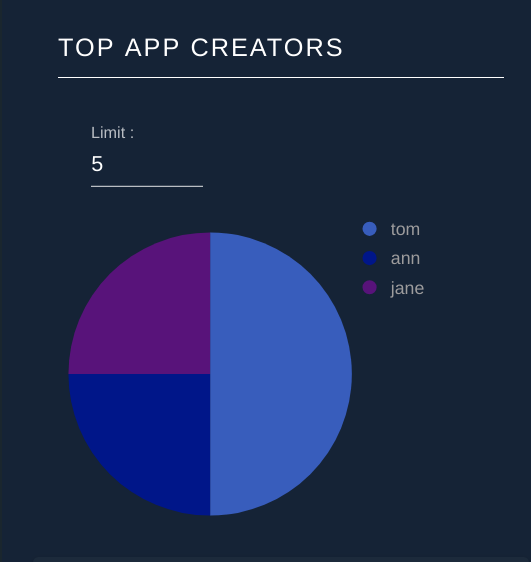

Top App Creators¶
As same as Top API Creators widget, Top App Creators widget displays a percentage of apps created by each app creator and also a list of app creators along with the number of apps they created with the filtering capabilities.

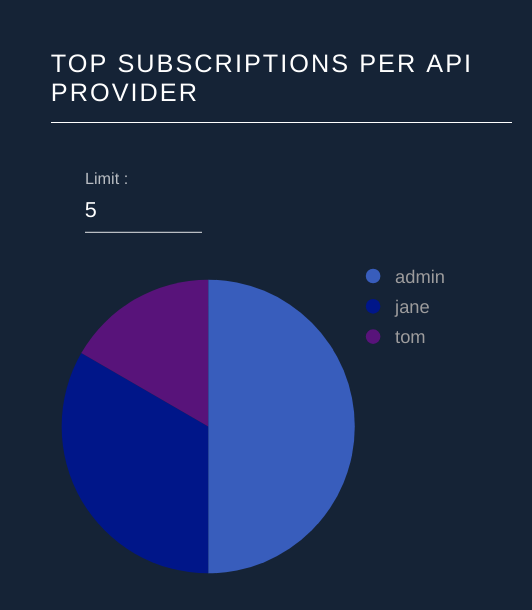

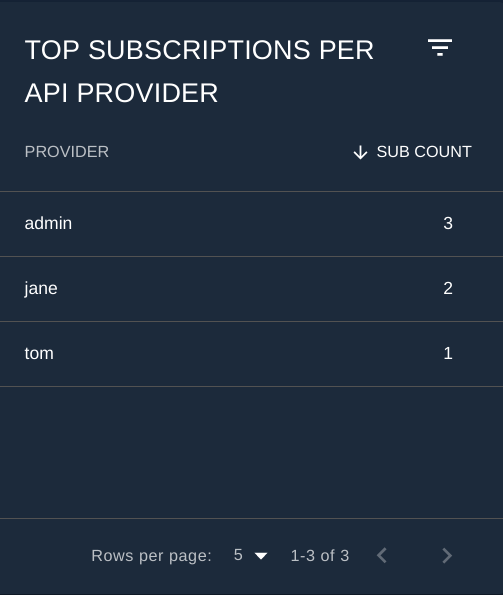

Top Subcriptions per API Provider¶
This widget displays the percentage of subscription count against each API provider. It also has a list view with the subscription count with the filtering capability based on the provider name and count.
API and Application Statistics¶
Under this page you can choose to view APIs/Apps based on different filter criteria. You can also select the time period and granularities such as minute, hour,day for which you wish to view the statistics.
APIs Created Over Time¶
This widget displays the number of APIs published over a given time period. You can filter based on the API created by you or APIs created by all. It also has a list view along with the filtering capability based on API Name.
Apps Created Over Time¶
This widget displays number of applications created over a given period of time. Statistics can be filtered based on API creator, app creator and subscribed API. This also has a list view with app name and created time which can be filtered based on the app name.
Developer Statistics¶
Subscriptions Over Time¶
This widget displays the number of subscriptions created for an API over a given period.
Developer Signups Over Time¶
This widget displays the number of developers who signed up to the developer portal over time.
Usage Summary¶
Overall API Usage¶
This widget displays the number of subscriptions of each API with a graphical view of number of API invocations. It also has a list view of total number of API invocations across all versions.
API Version Usage Summary¶
This widget displays the API invocation counts for each of the APIs grouped by each API version.
Top API Users¶
This widget lists the users who has done the most number of API invocations. It also has several filters to search based on the creator of the API ( either All or Me ), API Name and API Version.
API Resource Usage Summary¶
This widget displays the number of API invocations made by resources for an API in a list view.
API Backend Usage Summary¶
This widget displays the number of total API invocations aggregated based on API Name, API Version, API Creator, API Context and API Backend endpoint.
API Last Access Summary¶
This widget is a list view of the last access times of an API, according to the version and the accessed subscriber.
Devices¶
Top User Agents¶
This widget displays the percentage of API invocations using each browser. And the results can be filtered based on API Creator ( either All or Me), API Name and API version.
Top Platforms¶
This widget displays the percentage of API invocations done using different operating systems. Results of this widget also can be filtered based on API Creator ( either All or Me), API Name and API version.
API Proxy Performance¶
API Latency Time¶
This widget displays the execution time of the APIs represented as a combination of throttling, In mediation, Out mediation, backend response time, and authentication time. It also displays a comparison view of the latencies.
Faults¶
Top Faulty APIs¶
A successful invocation is when an API receives the expected response. In Analytics, if a runtime exception that is related to the backend communication occurs, it is considered as a faulty invocation. However, authentication related issues are not considered as faulty invocations. A percentage of faulty invocations for each API is displayed in this widget and it also has a list view which displays the total number of faulty invocations for each API.
Top Throttled Out APIs¶
This widget displays a percentage of throttled out request counts for each API as well as a list view with throttled out request count.
Geo Map¶
Geo Location Based Invocations¶
Geolocation based statistics are used to carryout detailed monitoring of geographic locations. You need to pass an x-forwarded-for header with the relevant IP in the API request in order to generate Geolocation based statistics. For more information, see Using Geolocation Based Statistics.
Developer Portal Statistics¶
Info
The Developer Portal Statistics Dashboard can be viewed by admin users and users who have the internal/subscriber role. By default, the dashboard cannot be viewed by users having the internal/analytics role.
However, these permissions can be changed based on your preferences using the Settings option in the dashboard. For more information, see Managing Analytics Dashboard Permissions page.
Log into the analytics-dashboard application and access developer portal statistics ( ex: https://localhost:9643/analytics-dashboard/dashboards/apimdevportal ) dashboard from there.
Faulty Invocation per Application¶
In a faulty API invocation, the message is mediated though the fault sequence. By default, the API Manager considers an API invocation to be faulty when the backend service is unavailable or if a runtime exception occurs that is related to the backend communication. The total number of invocations made by each application that are faulty are represented in these statistics.
Top Application Users¶
This widget displays the users who made the largest number of API calls per application. You also can limit the number of users that needs to be listed by changing the limit filter in the UI.
Registered Application Users¶
The statistics for this widget takes the number of users shared across each application in to consideration.
To enable application sharing among users within the same organization, see Sharing Applications. Only users who have generated access tokens using the password grant type are considered in these statistics.
Resource Usage of Application¶
This widget displays the usage of resources of the APIs by each application.
API Usage of Application¶
This widget displays the number of invocations made for each API by each application.
Admin Portal Statistics¶
Log in to the Admin Portal ( https://localhost:9443/admin ).
API Availability is the only statistical view that exists in the Admin Portal. Admin users can view API Availability statistics by navigating to ANALYTICS > API AVAILABILITY .
Availability of APIs¶
The status of the APIs (all API versions) represented in a tabular view.
| Status | This indicates the status of the API. There are two possible values; Available and Limited . Available - This status indicates that the API has traffic with normal successful invocations. By default, if an API receives successful invocations for at least one out of five invocations within 30000 milliseconds, the status of the API becomes Available . Note Note that only the APIs that have traffic are represented in this tabular representation. Limited - If an API receives an alert due to one of the reasons indicated in Availability of APIs (health monitoring), the API status changes to Limited . Note For more information on how to view the generated alerts, see Viewing Alerts |
The availability of APIs statistics is directly related to the Availability of APIs (health monitoring) alert type.
