Mapping the Parameters of your Backend URLs with the API Publisher URLs

This tutorial explains how to map your backend URLs to the pattern that you want in the API Publisher.


  • The URL pattern of the APIs in the Publisher is http://<hostname>:8280/<context>/<version>/<API resource> .
  • You can define variables as part of the URI template of your API's resources. For example, in the URI template /business/{businessId}/address/ , businessId is a variable.
  • The variables in the resources are read during mediation runtime using property values with the uri.var. prefix. For example, this HTTP endpoint gets the businessId that you specify in the resource http://localhost:8280/businesses/{uri.var.businessId}/details .
  • The URI template of the API's resource is automatically appended to the end of the HTTP endpoint at runtime. You can use the following mediator setting to remove the URL postfix from the backend endpoint:
    <property name="REST_URL_POSTFIX" scope="axis2" action="remove"/> .

We do the following mapping in this tutorial:


Before you begin...

Note that a mock backend implementation is set up in this tutorial for the purpose of demonstrating the API invocation. If you have a local API Manager setup, save this file in the <API-M_HOME>/repository/deployment/server/synapse-configs/default/api folder to set up the mock backend.

  1. Log in to the API Publisher, design a new API with the following information, click Create.

    Field Sample value
    Name TestAPI
    Context /test
    Version 1.0.0
    Business Plan Gold
    Endpoint http://localhost:8280/businesses/{uri.var.businessId}/details
    Resources URL pattern /business/{businessId}/address/
    Request types GET
  2. Go to Lifecycle tab and Click Publish to publish the API.

    As the API's resource is appended to its endpoint by Synapse at runtime, let's write a custom sequence to remove this appended resource.

  3. Copy the the following to a text editor and save the file in XML format.
    (e.g., TestSequence.xml ).


    <sequence xmlns="" name="TestSequence">
        <property name="REST_URL_POSTFIX" scope="axis2" action="remove"/>
  4. Go to API Publisher, click on the APi to go to the Runtime Configurations tab.

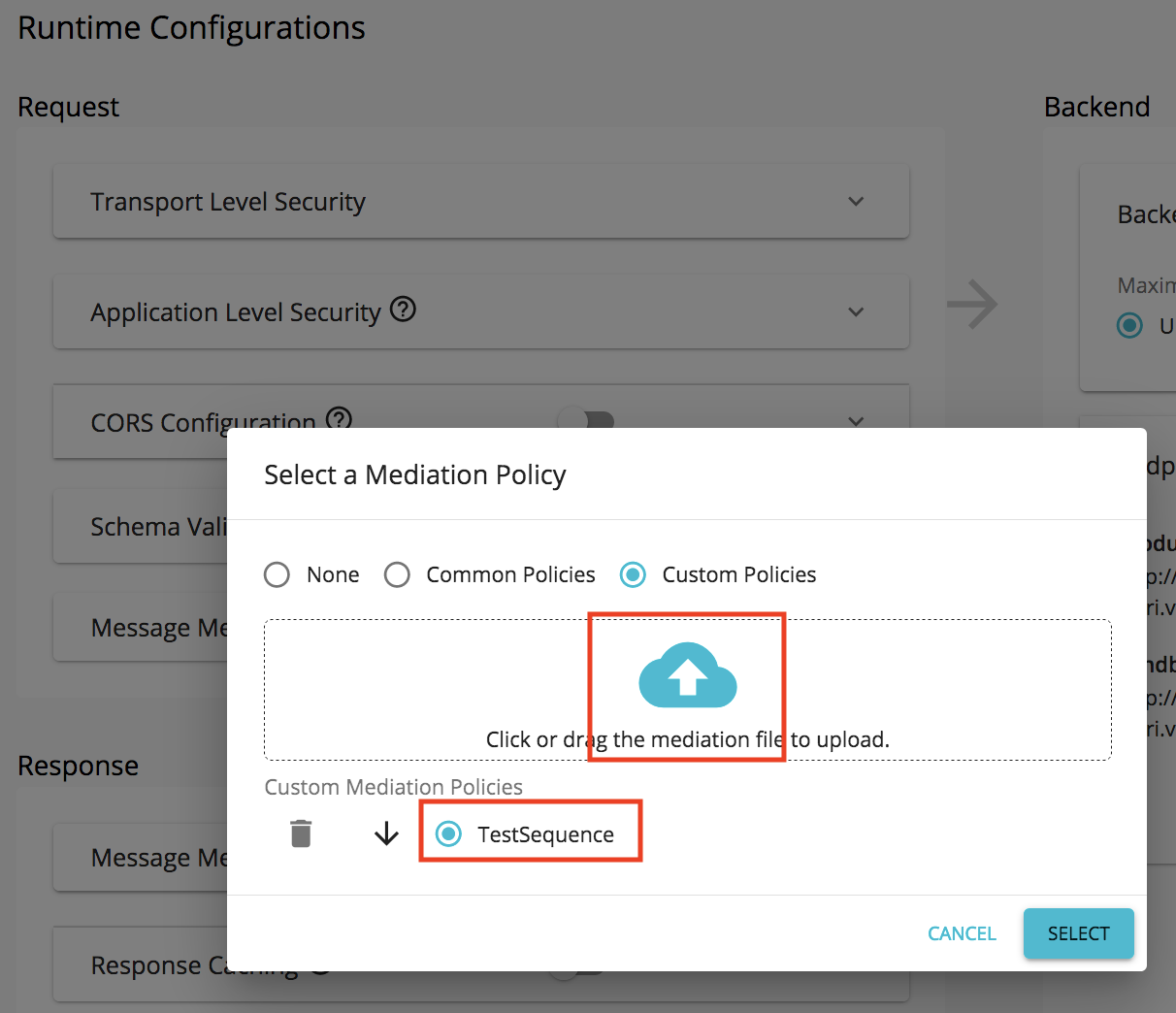

  5. Enable the Message Mediation switch and engage the In sequence that you created earlier.


    TestSequence.xml removes the URL postfix from the backend endpoint, since the URI template of the API's resource is automatically appended to the end of the URL at runtime. Therefore the request URL is modified by adding this sequence to the In Flow.

  6. Save the API.

  7. Log in to the API Devportal and subscribe to the API and generate an access token to invoke the API.

  8. Click the Try Out tab of your API and click on Try it out on the /business/{businessId}/address resource.

  9. Note below the businessId is added in the UI as a parameter. Give a businessId and click Execute to invoke the API.

  10. Note the response that you get. According to the mock backend used in this tutorial, you get the response Received Request.

In this tutorial, you mapped the URL pattern of the APIs in the Publisher with the endpoint URL pattern of a sample backend.
