Onboarding Anthropic's Claude

This guide explains how to integrate WSO2 API Manager with Claude, allowing you to access Claude's APIs via API Manager's AI Gateway. It provides step-by-step instructions for configuring Claude as a custom AI vendor to effectively manage and track AI API interactions.

1. Login to the Admin Portal

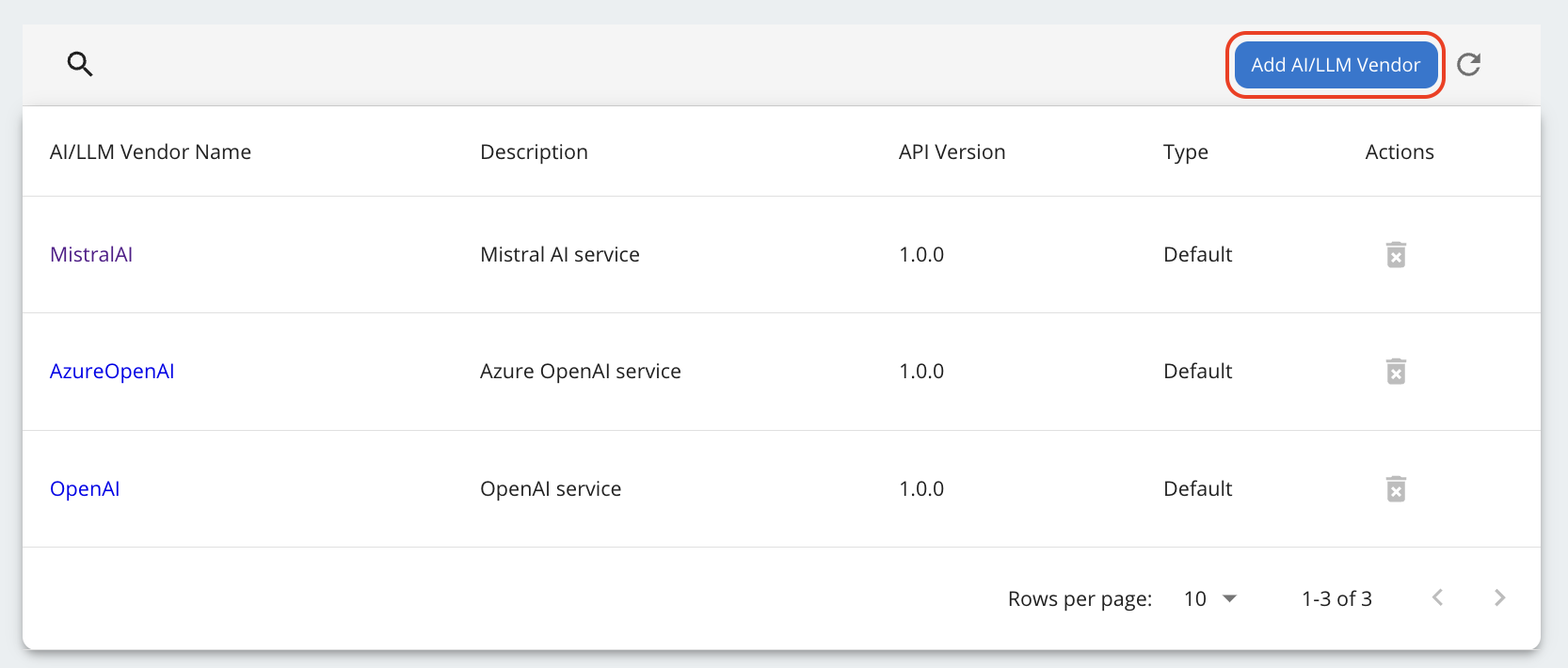

2. Navigate to the AI/LLM Vendors section and click on Add AI/LLM Vendor.



3. Fill in the general details for the AI vendor as shown below.

   Field		Sample value
   Name		Anthropic Claude
   API Version		1.0.0
   Description		Anthropic Claude LLM Service

4. Enter the LLM configurations as outlined below.

   Attribute Name		Input Source		Attribute Identifier
   Request Model		payload		$.model
   Response Model		payload		$.model
   Prompt Token Count		payload		$.usage.input_tokens
   Completion Token Count		payload		$.usage.output_tokens
   Total Token Count		payload		N/A
   Remaining Token Count		header		anthropic-ratelimit-tokens-remaining

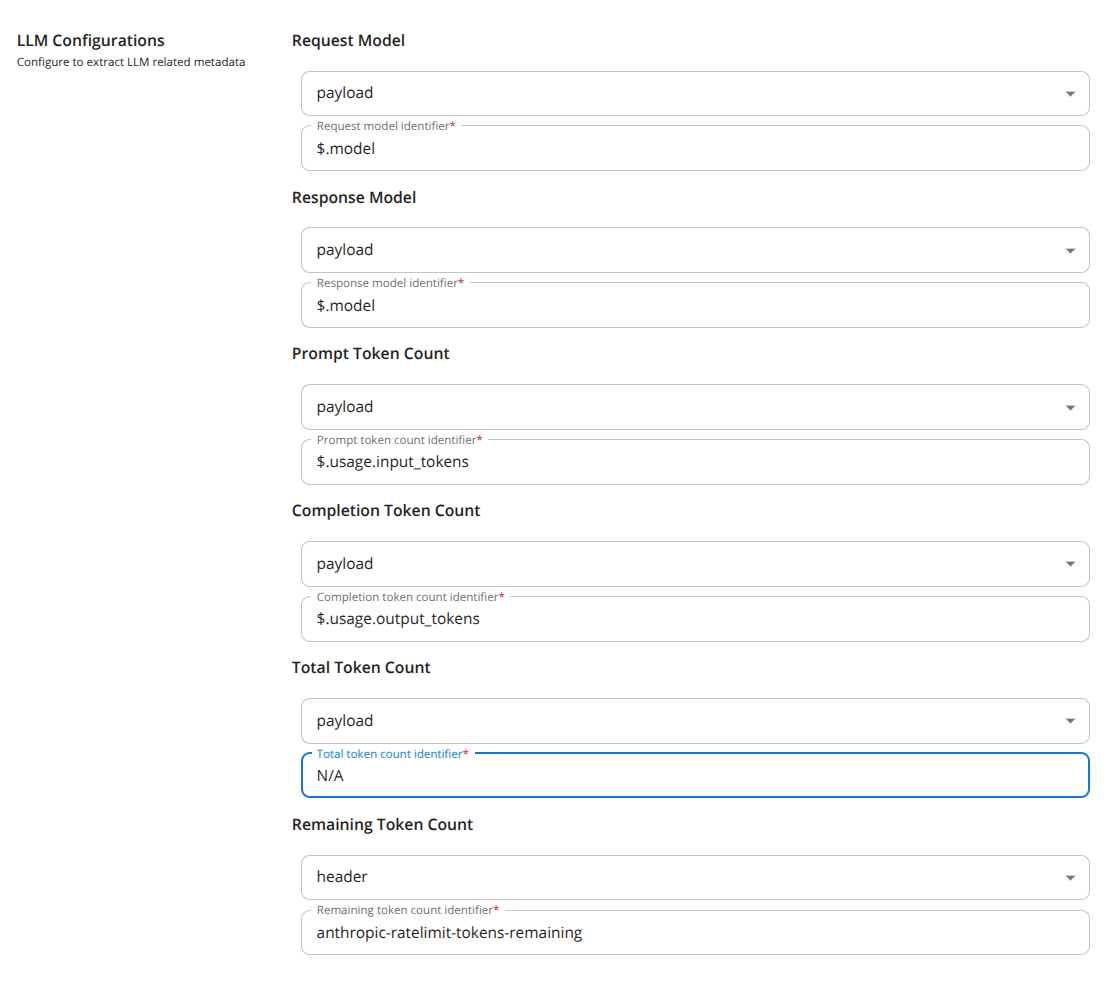

   Refer the image below for the LLM configuration.



5. Download the API definition for Anthropic Claude from Anthropic Claude API Definition and upload it as the API Definition.

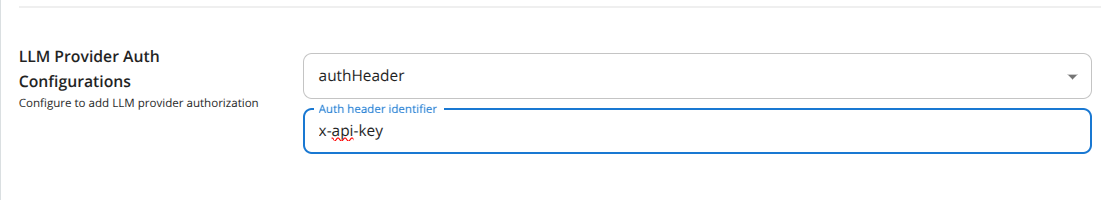

6. Configure the authentication configurations by setting the type to authHeader and the identifier to x-api-key.



7. Choose the connector type as default.

8. Next, you can add any models you prefer. For instance, add claude-3-5-sonnet-20241022 and press enter. You can always add more models later. This enables you to set up model-based load balancing and failover using Claude's APIs.

9. Finally, click Add to integrate Anthropic Claude as an AI Vendor.

Once added, you'll be able to create and manage AI APIs for Anthropic Claude, allowing you to leverage its capabilities within your applications.
